EP80L-AHMNS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
1E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

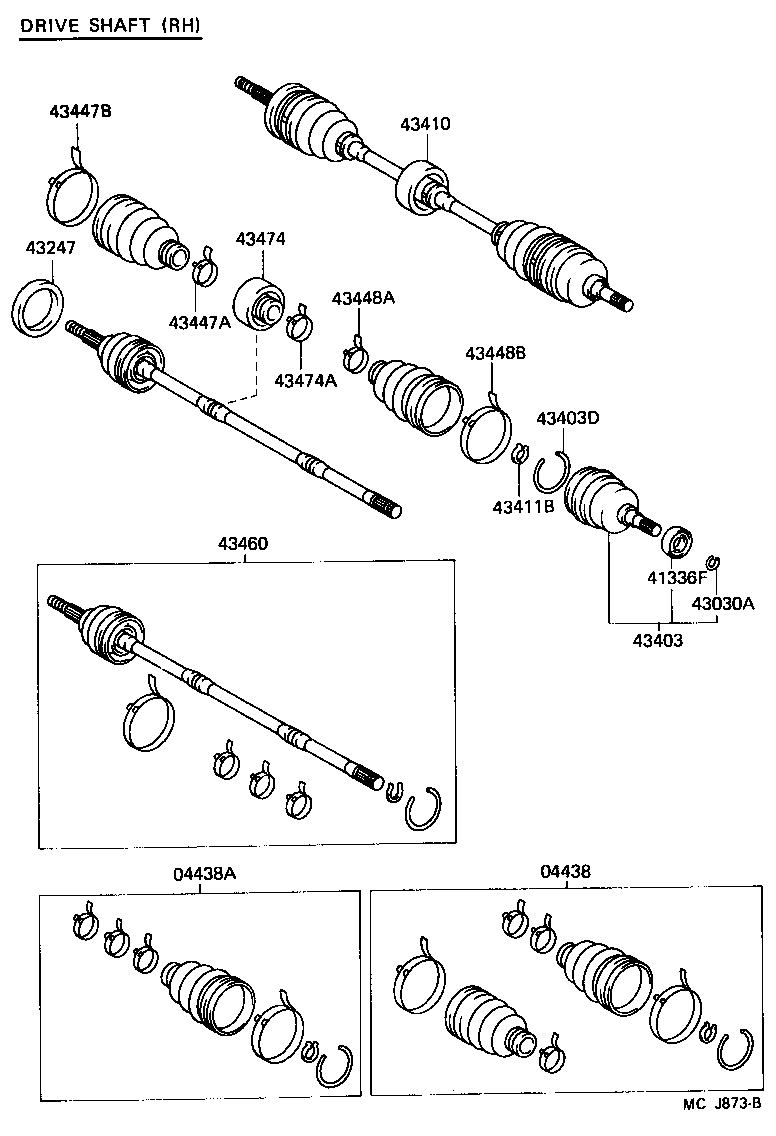

(8912- )EP80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-10040 |
EP80 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-10030 |
EP80 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
EP8# |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
EP8# |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-10020 |
EP8# |
2 | ||
| 43247-16040 |
EP8# |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-10020 |
EP80 |
1 | ||
| 43403D - RING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 90521-64001 |
EP80 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-10070 |
EP80 |
1 | ||
| 43410-10071 |
EP80 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-21020 |
EP80 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-10030 |
EP80 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-10020 |
EP80 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-10030 |
EP80 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-10010 |
EP80 |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19416 |
EP80 |
1 | ||
| 43460-19415 |
EP80 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-10040 |
EP80 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-10030 |
EP80 |
1 | ||

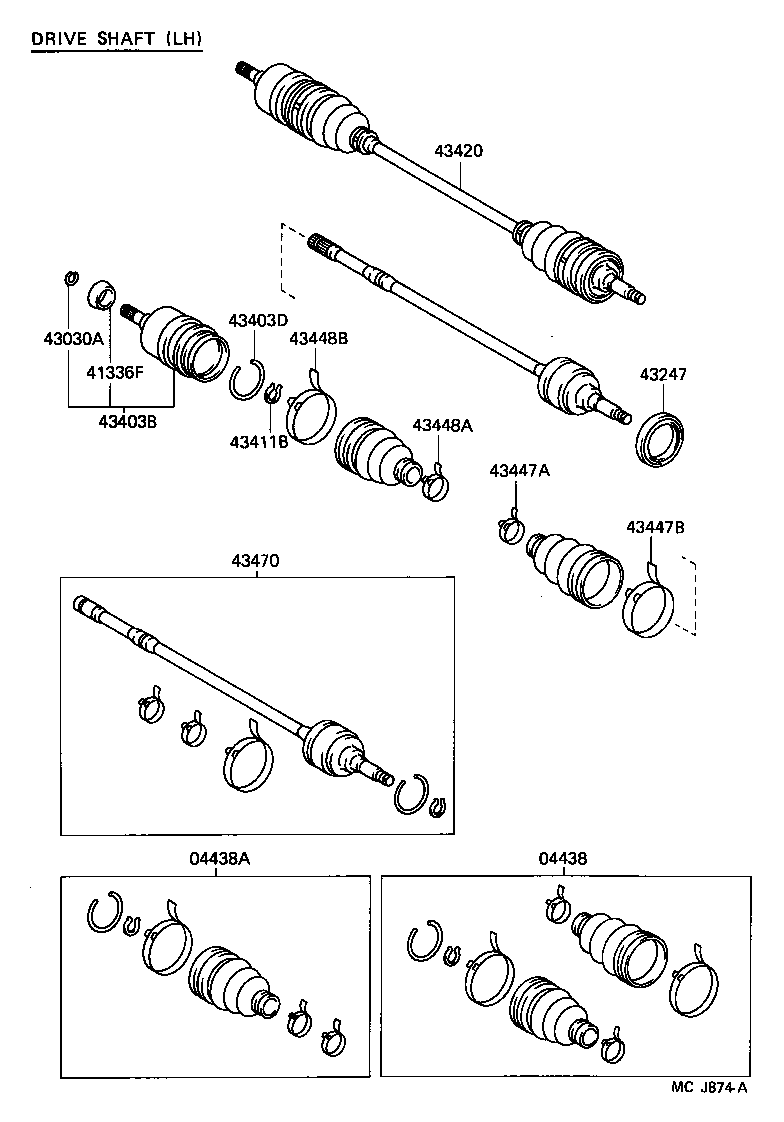

(8912- )EP80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-10040 |
EP80 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-10030 |
EP80 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
EP8# |
2 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90521-26004 |
EP8# |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-10020 |
EP8# |
2 | ||
| 43247-16040 |
EP8# |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-10020 |
EP80 |
1 | ||
| 43403D - RING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 90521-64001 |
EP80 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-21020 |
EP80 |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-10071 |
EP80 |
1 | ||
| 43420-10070 |
EP80 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-10030 |
EP80 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-10020 |
EP80 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-10030 |
EP80 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-10010 |
EP80 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19396 |
EP80 |
1 | ||
| 43470-19395 |
EP80 |
1 | ||
