EP80L-AHKRS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

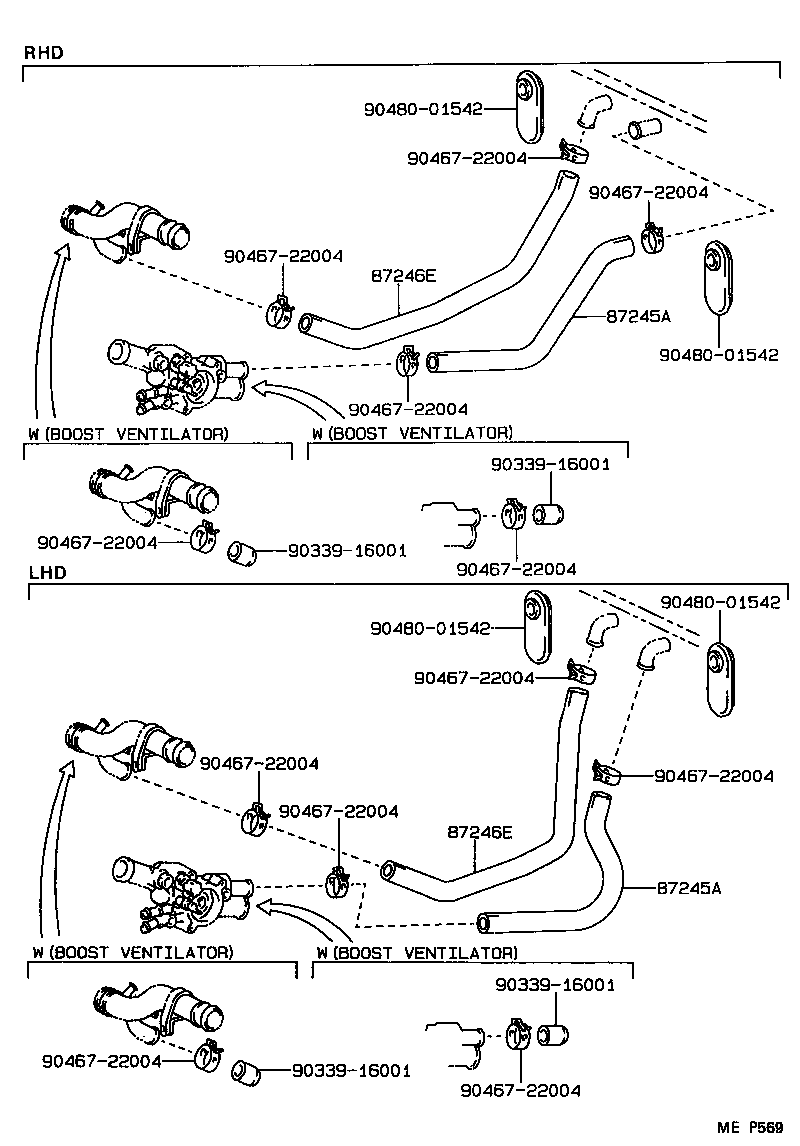

Click highlighted areas on diagram

diagram 87245A 87245A 87246E 87246E 9033916001 9033916001 9033916001 9033916001 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001542 9048001542 9048001542 9048001542
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-10530

EP80,81..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-10530

EP80,81..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-10540

EP80,81..LHD

 1
87245-10541

EP80,81..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-10540

EP80,81..LHD

 1
87245-10541

EP80,81..LHD

 1
Common parts
90339-16001
90467-22004
90480-01542
