EP80L-AHKRS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
1E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

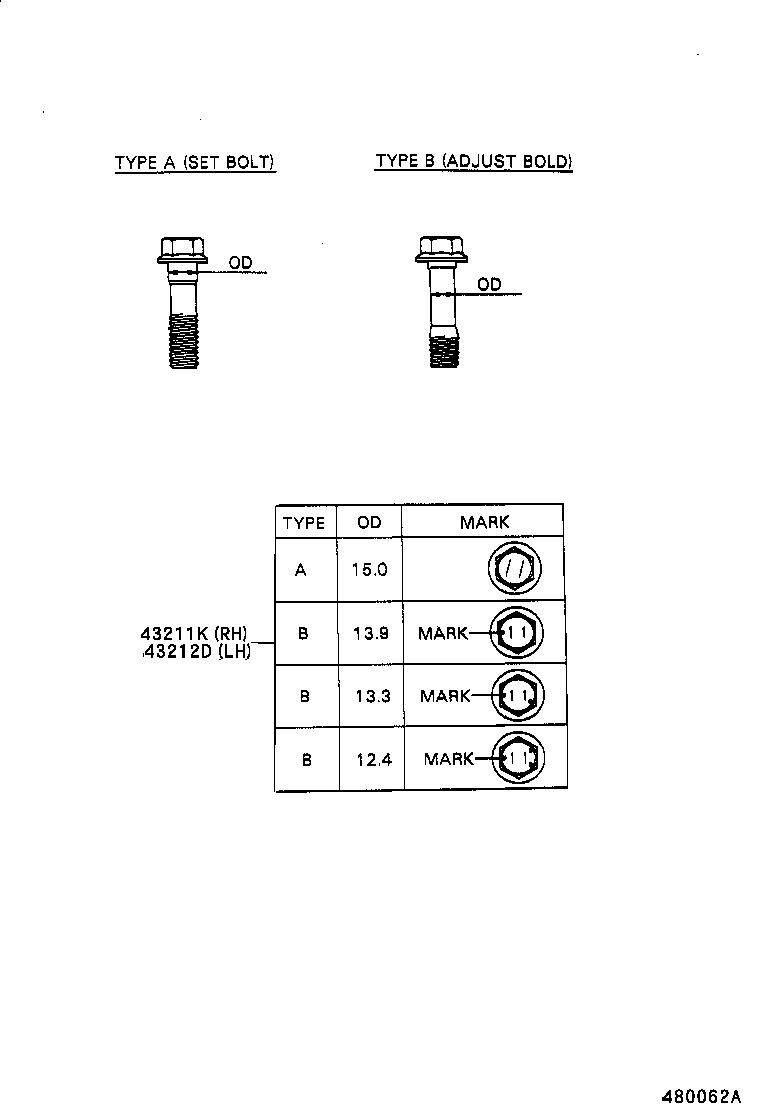

ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
EP8# OD=15.0 |
2 | ||
| 90105-15002 |
EP8# OD=15.0 |
2 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15002 |
EP8# OD=15.0 |
2 | ||
| 90105-15001 |
EP8# OD=15.0 |
2 | ||

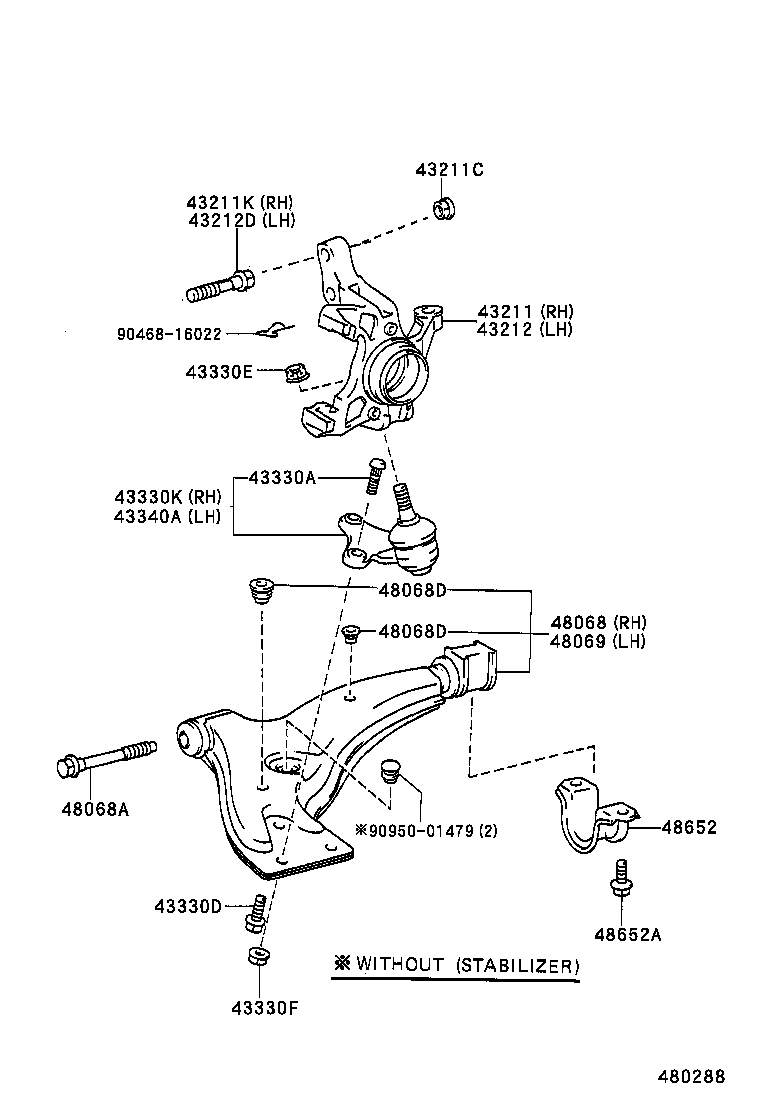

ILLUST NO. 1 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-10080 |
EP8# |
1 | ||
| 43211-10081 |
EP8# |
1 | ||
| 43211C - NUT (FOR ABSORBER SETTING) | ||||
| 90179-15001 |
EP8# |
4 | ||
| 90179-15003 |
EP8# |
4 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15001 |
EP8# OD=15.0 |
2 | ||
| 90105-15002 |
EP8# OD=15.0 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-10061 |
EP8# |
1 | ||
| 43212-10060 |
EP8# |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15002 |
EP8# OD=15.0 |
2 | ||
| 90105-15001 |
EP8# OD=15.0 |
2 | ||
| 43330A - SERRATION BOLT(FOR FRONT LOWER BALL JOINT) | ||||
| 90114-10036 |
EP8# |
4 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90119-10407 |
EP8# |
2 | ||
| 43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90171-12007 |
EP8# |
2 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-10088 |
EP8# |
4 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19085 |
EP8# |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-19025 |
EP8# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-16060 |
EP8#..CAN,S,STD,XL |
1 | ||
| 48068-10090 |
EP8# |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90119-12099 |
EP8# |
2 | ||
| 48068D - PLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90950-01414 |
EP8# H=11,OD=16 |
2 | ||
| 90950-01478 |
EP8# H=13,OD=21 |
6 | ||
| 48068D - PLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90950-01414 |
EP8# H=11,OD=16 |
2 | ||
| 90950-01478 |
EP8# H=13,OD=21 |
6 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-10070 |
EP8# |
1 | ||
| 48069-16060 |
EP8#..CAN,S,STD,XL |
1 | ||
| 48652 - BRACKET, FRONT LOWER ARM | ||||
| 48652-10020 |
EP8# |
2 | ||
| 48652A - BOLT(FOR FRONT LOWER ARM BRACKET) | ||||
| 90105-12061 |
EP8# |
4 | ||
| 90901-19018 |
EP8# |
4 | ||
| Common parts | ||||
| 90468-16022 | ||||
| 90950-01479 | ||||
