EP80L-AHKNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1E,2E ; (9201- )4EFE..3FC

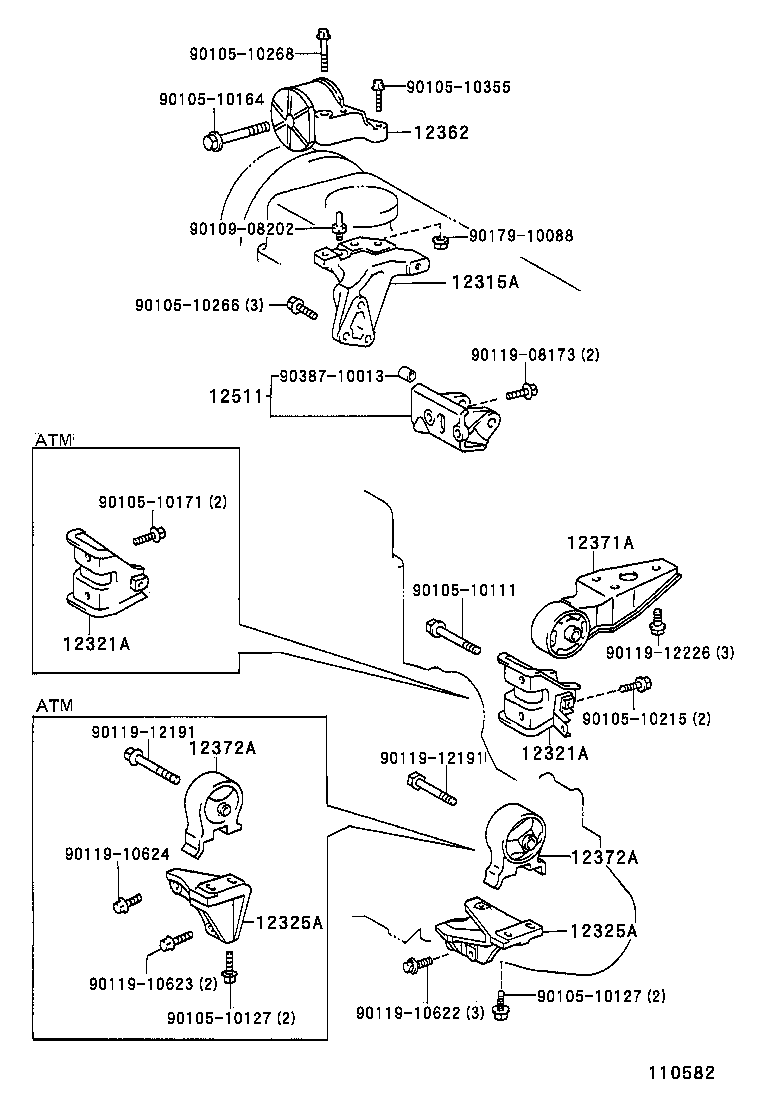

Click highlighted areas on diagram

diagram 12315A 12321A 12321A 12325A 12325A 12362 12371A 12372A 12372A 12511 9010510111 9010510127 9010510127 9010510164 9010510171 9010510215 9010510266 9010510268 9010510355 9010908202 9011908173 9011910622 9011910623 9011910624 9011912191 9011912191 9011912226 9017910088 9038710013
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11040

1E,2E,4EFE..EP8#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11090

1E,2E,4EFE..EP8#..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11090

1E,2E,4EFE..EP8#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11060

1E,2E,4EFE..EP8#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11060

1E,2E,4EFE..EP8#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-11110

1E,2E,4EFE..EP8#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-11240

1E,2E,4EFE..EP8#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-10040

1E..EP80

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-10040

1E..EP80

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11020

1E,2E,4EFE..EP8#

 1
Common parts
90105-10111
90105-10127
90105-10164
90105-10171
90105-10215
90105-10266
90105-10268
90105-10355
90109-08202
90119-08173
90119-10622
90119-10623
90119-10624
90119-12191
90119-12226
90179-10088
90387-10013
