EP80L-AGKRS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

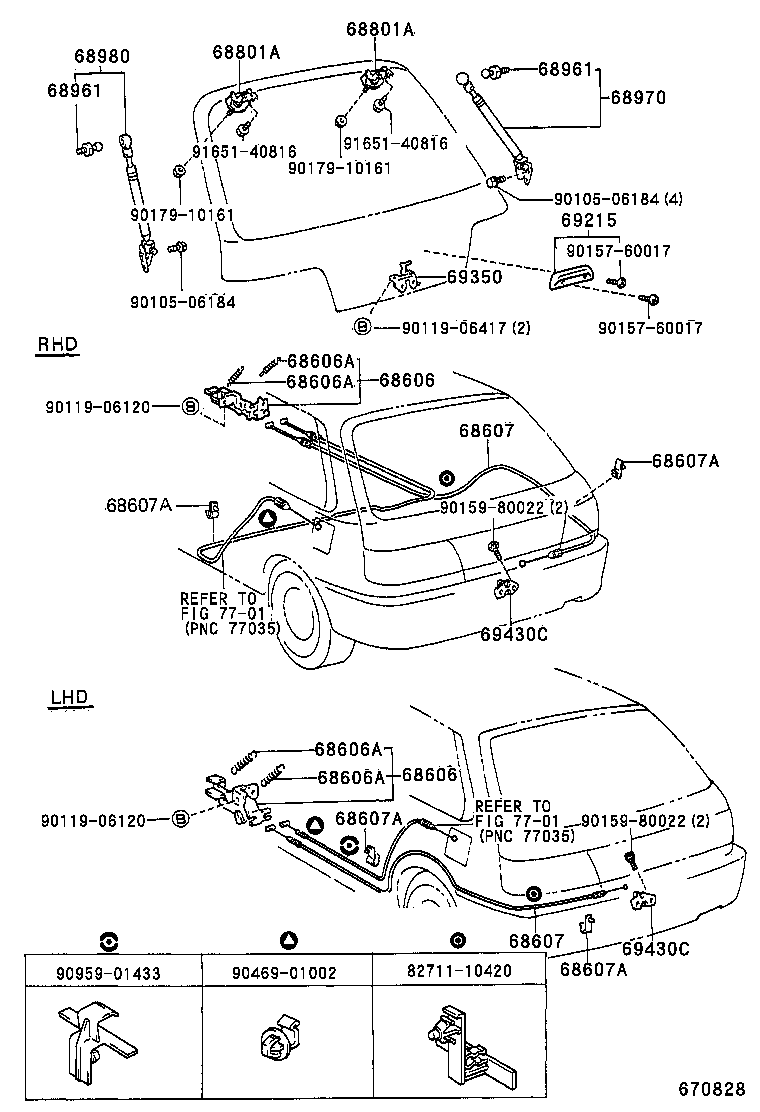

Click highlighted areas on diagram

diagram 68606 68606 68606A 68606A 68606A 68606A 68607 68607 68607A 68607A 68607A 68801A 68801A 68961 68961 68970 68980 69215 69350 69430C 69430C 7701 7701 8271110420 9010506184 9010506184 9011906120 9011906120 9011906417 9015760017 9015760017 9015980022 9015980022 9017910161 9017910161 9046901002 9095901433 9165140816 9165140816
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12050

EP80,81..LHD

 1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12050

EP80,81..LHD

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP8#

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP8#

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP8#

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP8#

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-10130

EP8#..LHD

CYUHATSU

 1
64607-10130

EP80,81..LHD

 1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-10130

EP8#..LHD

CYUHATSU

 1
64607-10130

EP80,81..LHD

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

EP80,81..LHD

 3
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

EP80,81..LHD

 3
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

EP80,81..LHD

 3
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-10030

EP8#

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-10030

EP8#

 2
68961 - BOLT, BACK DOOR STAY
68961-10030

EP8#

 2
68961 - BOLT, BACK DOOR STAY
68961-10030

EP8#

 2
68970 - STAY ASSY, BACK DOOR, RH
68950-19695

EP80,81

 1
68950-19705

EP80,81

W(REAR WINDOW WIPER)

 1
68980 - STAY ASSY, BACK DOOR
68960-19385

EP80,81

 1
68960-19395

EP80,81

W(REAR WINDOW WIPER)

 1
69215 - HANDLE, BACK DOOR OUTSIDE
69209-10010

EP80,81

 1
69350 - LOCK ASSY, BACK DOOR
69350-10110

EP8#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-10070

EP80;EP81..5D;EP81..3D..XL

W(BACK DOOR OPENER)

 1
69430-10060

EP80;EP81..5D;EP81..3D..XL

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-10070

EP80;EP81..5D;EP81..3D..XL

W(BACK DOOR OPENER)

 1
69430-10060

EP80;EP81..5D;EP81..3D..XL

 1
Common parts
82711-10420
90105-06184
90119-06120
90119-06417
90157-60017
90159-80022
90179-10161
90469-01002
90959-01433
91651-40816
Linked diagrams
7701
