EP80L-AGKRS (1989)
Toyota Starlet

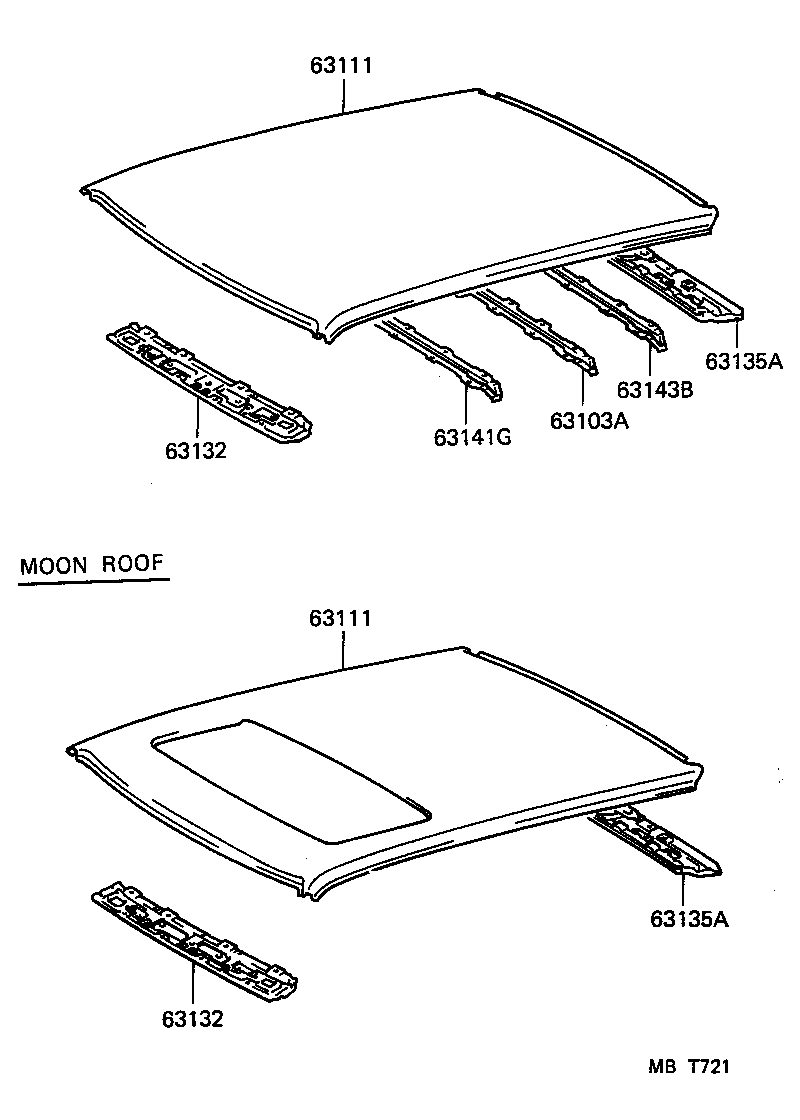

ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-10020 |
EP8#..S,SOL,SOLL,STD,XL |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10100 |
EP8#..S,SOL,SOLL,STD,XL |
1 | ||
| 63111-10900 |
EP8#..S,XL W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10100 |
EP8#..S,SOL,SOLL,STD,XL |
1 | ||
| 63111-10900 |
EP8#..S,XL W(MOON ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10090 |
EP8# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10090 |
EP8# |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-10030 |
EP8# |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-10030 |
EP8# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-10060 |
EP8#..S,SOL,SOLL,STD,XL |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-10020 |
EP8#..S,SOL,SOLL,STD,XL |
1 | ||

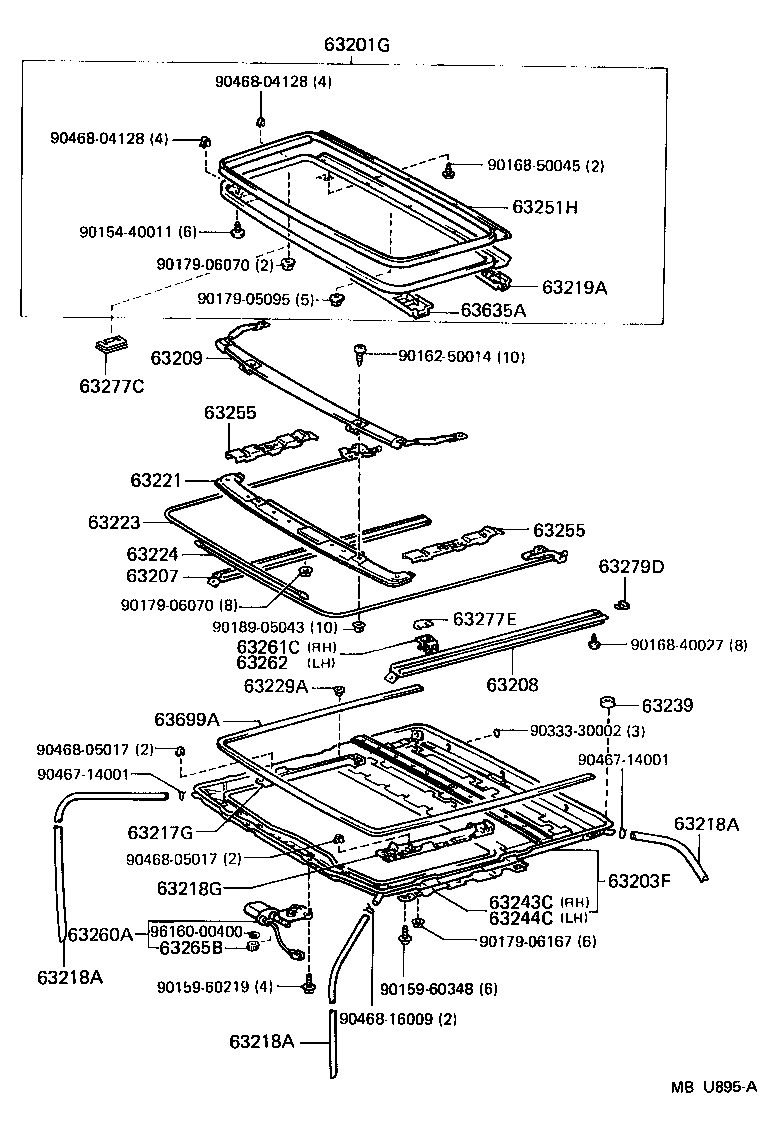

ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-10050 |
EP8#..S,XL *SERT,T=4.0,GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-10050 |
EP8#..S,XL |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-10040 |
EP8#..S,XL |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-10040 |
EP8#..S,XL |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-10051 |
EP8#..S,XL |
1 | ||
| 63209-10050 |
EP8#..S,XL |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-10020 |
EP8#..S,XL |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
EP8#..S,XL L=400,REAR |
2 | ||
| 63249-17030 |
EP8#..S,XL L=1470,FRONT |
2 | ||
| 63249-10060 |
EP8#..S,XL REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
EP8#..S,XL L=400,REAR |
2 | ||
| 63249-17030 |
EP8#..S,XL L=1470,FRONT |
2 | ||
| 63249-10060 |
EP8#..S,XL REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12120 |
EP8#..S,XL L=400,REAR |
2 | ||
| 63249-17030 |
EP8#..S,XL L=1470,FRONT |
2 | ||
| 63249-10060 |
EP8#..S,XL REAR |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-10020 |
EP8#..S,XL |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-10030 |
EP8#..S,XL |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-10020 |
EP8#..S,XL |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-10021 |
EP8#..S,XL |
1 | ||
| 63223-10022 |
EP8#..S,XL |
1 | ||
| 63223-10020 |
EP8#..S,XL |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-10020 |
EP8#..S,XL |
1 | ||
| 63224-10022 |
EP8#..S,XL |
1 | ||
| 63224-10021 |
EP8#..S,XL |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-10020 |
EP8#..S,XL |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-50010 |
EP8#..S,XL |
1 | ||
| 63239-50010 |
EP8#..S,XL |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-10020 |
EP8#..S,XL |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-10020 |
EP8#..S,XL |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-10050 |
EP8#..S,XL |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-10030 |
EP8#..S,XL |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-10030 |
EP8#..S,XL |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-10050 |
EP8#..S,XL |
1 | ||
| 63260-10040 |
EP8#..S,XL |
1 | ||
| 63260-10041 |
EP8#..S,XL |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-10030 |
EP8#..S,XL |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-10020 |
EP8#..S,XL |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
EP8#..CAN,S,XL |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
EP8#..S,XL T=1.0 |
1 | ||
| 63277E - SHIM, SLIDING ROOF PANEL | ||||
| 63277-30020 |
EP8#..S,XL |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-32010 |
EP8#..S,XL |
2 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-10010 |
EP8#..S,XL |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-32020 |
EP8#..S,XL |
1 | ||
| Common parts | ||||
| 90154-40011 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50014 | ||||
| 90168-40027 | ||||
| 90168-50045 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90179-06167 | ||||
| 90189-05043 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 96160-00400 | ||||
