EP80L-AGKRS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

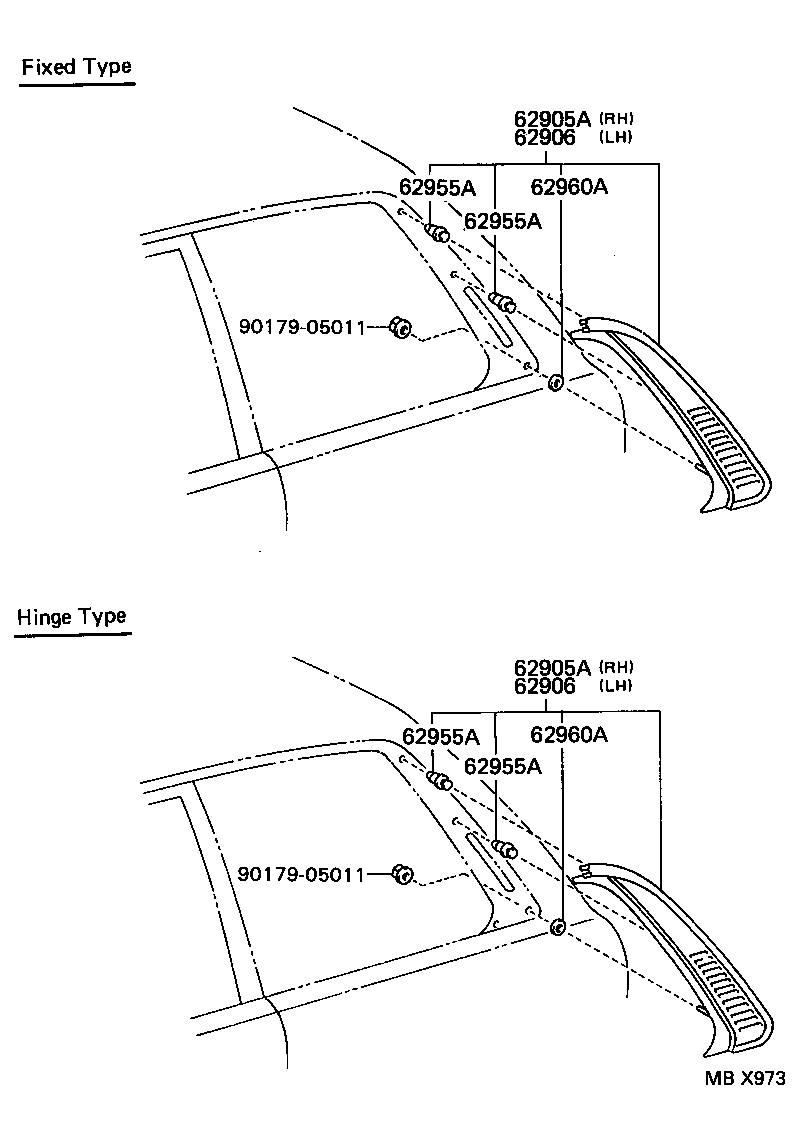

Click highlighted areas on diagram

diagram 62905A 62905A 62906 62906 62955A 62955A 62955A 62955A 62960A 62960A 9017905011 9017905011
Part # Description Qty Price
62905A - LOUVER, QUATER VENTILATION, RH
62905-10140

EP80,81..3D..(STD,XL)

W(HINGED QUARTER WINDOW)

 1
62905-10130

EP8#..3D..(CAN,STD,XL)

 1
62905A - LOUVER, QUATER VENTILATION, RH
62905-10140

EP80,81..3D..(STD,XL)

W(HINGED QUARTER WINDOW)

 1
62905-10130

EP8#..3D..(CAN,STD,XL)

 1
62906 - LOUVER, QUATER VENTILATION, LH
62906-10060

EP8#..3D..(CAN,STD,XL)

 1
62906-10070

EP80,81..3D..(STD,XL)

W(HINGED QUARTER WINDOW)

 1
62906 - LOUVER, QUATER VENTILATION, LH
62906-10060

EP8#..3D..(CAN,STD,XL)

 1
62906-10070

EP80,81..3D..(STD,XL)

W(HINGED QUARTER WINDOW)

 1
62955A - RETAINER, QUARTER VENT LOUVER
62955-12040

EP8#..3D

 4
62955-12040

EP8#..3D

 4
62955-12010

EP8#..3D

 4
62955A - RETAINER, QUARTER VENT LOUVER
62955-12040

EP8#..3D

 4
62955-12040

EP8#..3D

 4
62955-12010

EP8#..3D

 4
62955A - RETAINER, QUARTER VENT LOUVER
62955-12040

EP8#..3D

 4
62955-12040

EP8#..3D

 4
62955-12010

EP8#..3D

 4
62955A - RETAINER, QUARTER VENT LOUVER
62955-12040

EP8#..3D

 4
62955-12040

EP8#..3D

 4
62955-12010

EP8#..3D

 4
62960A - GASKET(FOR ROOF SIDE VENT LOUVER)
90430-04009

EP8#

 2
62960A - GASKET(FOR ROOF SIDE VENT LOUVER)
90430-04009

EP8#

 2
Common parts
90179-05011
