EP80L-AGKRS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

Click highlighted areas on diagram

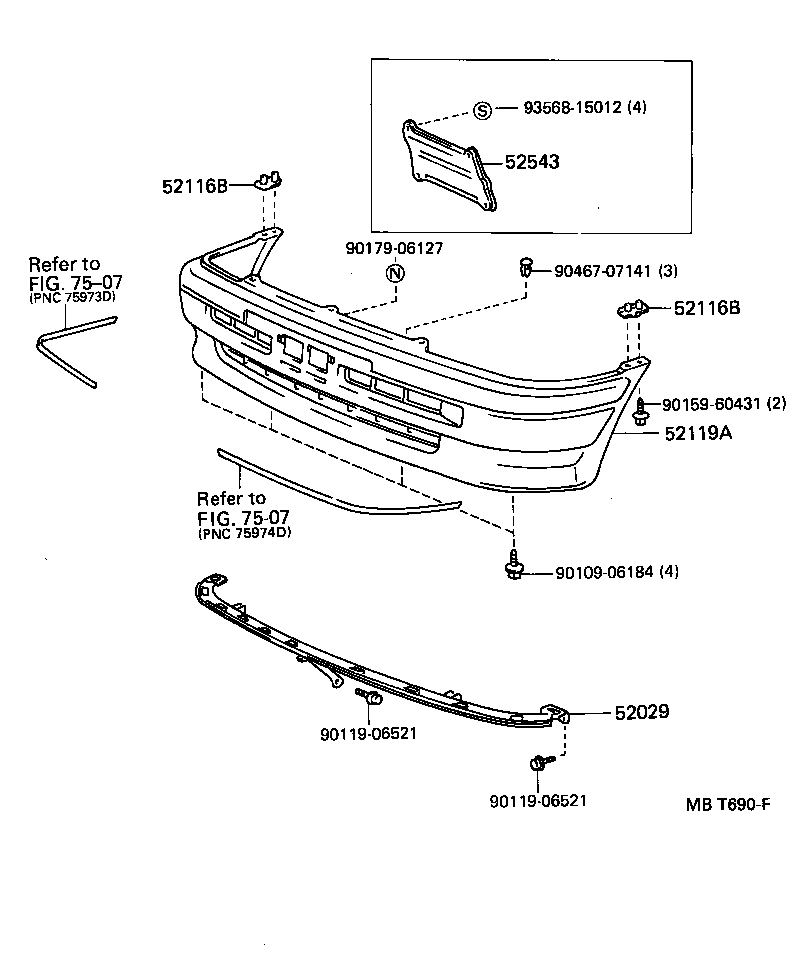

TYPE A

diagram 52029 52116B 52116B 52119A 52543 7507 7507 9010906184 9011906521 9011906521 9015960431 9017906127 9046707141 9356815012
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10010

EP80,81

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52119A - COVER, FRONT BUMPER
52119-10900

EP8#..S,XL

FOR COLORED BUMPER, TYPE A

 1
52119-10130

EP80,81

TYPE A

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-10020

EP80,81

 1
Common parts
90109-06184
90119-06521
90159-60431
90179-06127
90467-07141
93568-15012
Linked diagrams
7507

(9201- )

Click highlighted areas on diagram

TYPE B

diagram 52029 52116B 52119A 52127D 52128B 52147B 52526A 7507 7507 9010906184 9011906403 9011906521 9015960431 9017906127 9046707109 9046707141
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10010

EP80,81

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52119A - COVER, FRONT BUMPER
52119-10900

EP8#..S,XL

FOR COLORED BUMPER, TYPE A

 1
52119-10130

EP80,81

TYPE A

 1
Common parts
90109-06184
90119-06403
90119-06521
90159-60431
90179-06127
90467-07109
90467-07141
Linked diagrams
7507
