EP80L-AGKRS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
1E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)1E

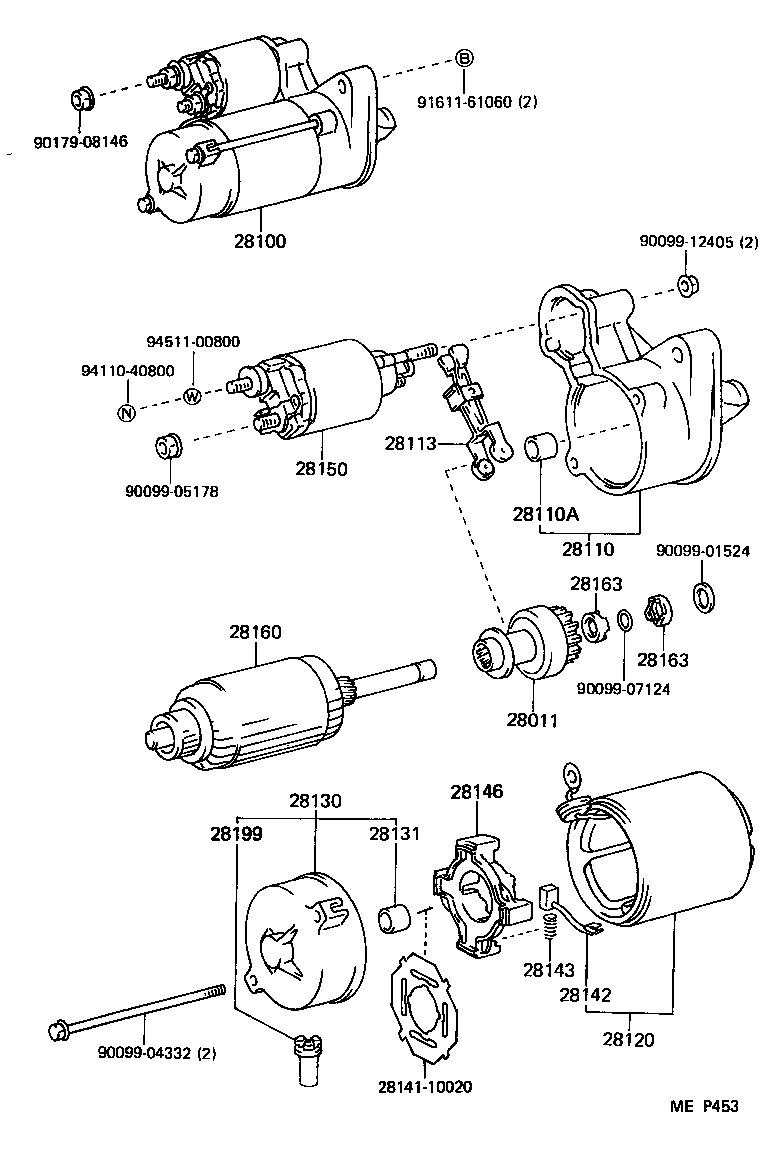

Click highlighted areas on diagram
12V 0.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-10020 |
1E..EP80 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10021 |
1E..EP80 12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10020 |
1E..EP80 |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
1E,4EFE..EP80,82 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-10020 |
1E..EP80 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-10020 |
1E..EP80 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10020 |
1E..EP80 |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10157 |
1E..EP80 |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10020 |
1E..EP80 |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-10020 |
1E..EP80 |
4 | ||
| 28146 - HOLDER, STARTER BRUSH | ||||
| 28149-10020 |
1E..EP80 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-10020 |
1E..EP80 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-10020 |
1E..EP80 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-10020 |
1E..EP80 |
2 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-10020 |
1E..EP80 |
2 | ||
| 28199 - COVER, STARTER | ||||
| 28199-15090 |
1E..EP80 |
1 | ||
| Common parts | ||||
| 28141-10020 | ||||
| 90099-01524 | ||||
| 90099-04332 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
