EP71R-PHMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

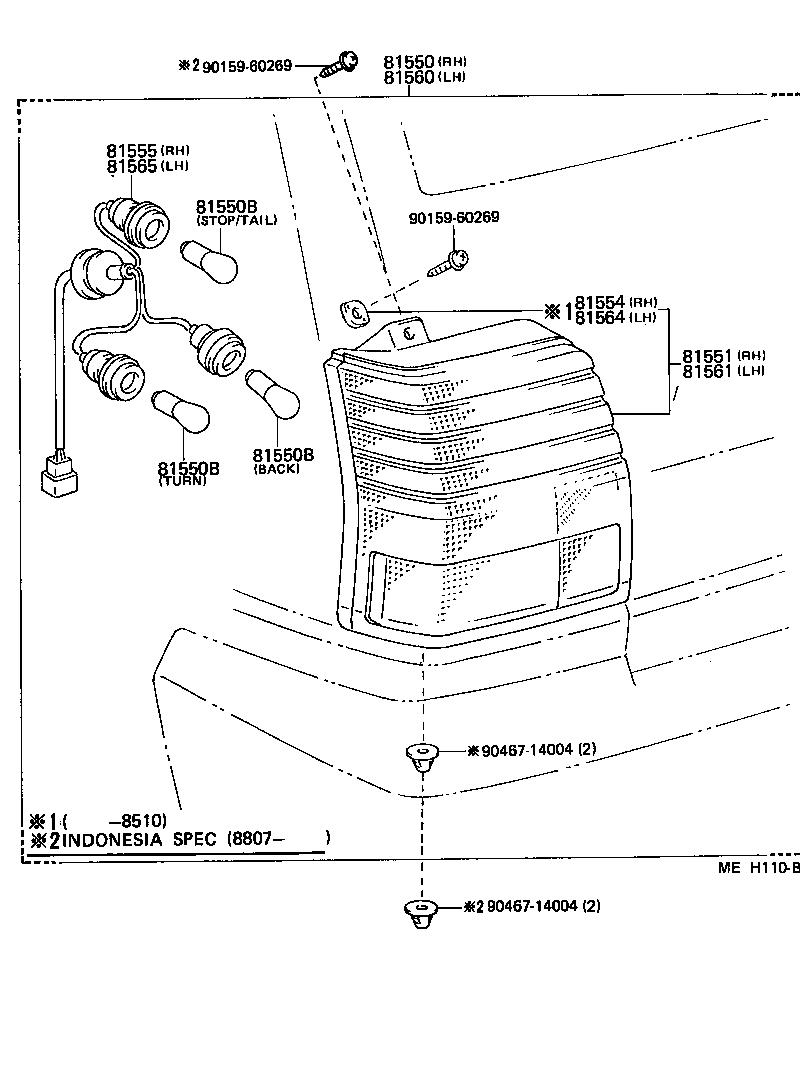

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9015960269 9015960269 9046714004 9046714004
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-10260

EP70,71..RHD..5D..5F

INDONESIA SPEC

 1
81550-80244

EP7#

 1
81550-80245

EP7#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

EP7#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

EP7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11210

EP70,71..RHD..5D..5F

12V 21W,12V 21W(TURN OR BACK)

 1
99132-11210

EP7#

12V 21W,12V 21W(TURN & BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

EP7#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

EP7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11210

EP70,71..RHD..5D..5F

12V 21W,12V 21W(TURN OR BACK)

 1
99132-11210

EP7#

12V 21W,12V 21W(TURN & BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

EP7#

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

EP7#

12V 21/5W,12V 21/5W(STOP/TAIL)

 2
99132-11210

EP70,71..RHD..5D..5F

12V 21W,12V 21W(TURN OR BACK)

 1
99132-11210

EP7#

12V 21W,12V 21W(TURN & BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-10260

EP70,71..RHD..5D..5F

INDONESIA SPEC

 1
81551-10250

EP7#

 1
81551-10240

EP7#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-10250

EP7#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-10250

EP7#

 1
81555-10240

EP7#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-10260

EP70,71..RHD..5D..5F

INDONESIA SPEC

 1
81560-80252

EP7#

 1
81560-80253

EP7#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-10230

EP7#

 1
81561-10220

EP7#

 1
81561-10260

EP70,71..RHD..5D..5F

INDONESIA SPEC

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-10250

EP7#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-10220

EP7#

 1
81555-10250

EP7#

 1
Common parts
90159-60269
90467-14004
