EP71R-PHMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

Click highlighted areas on diagram

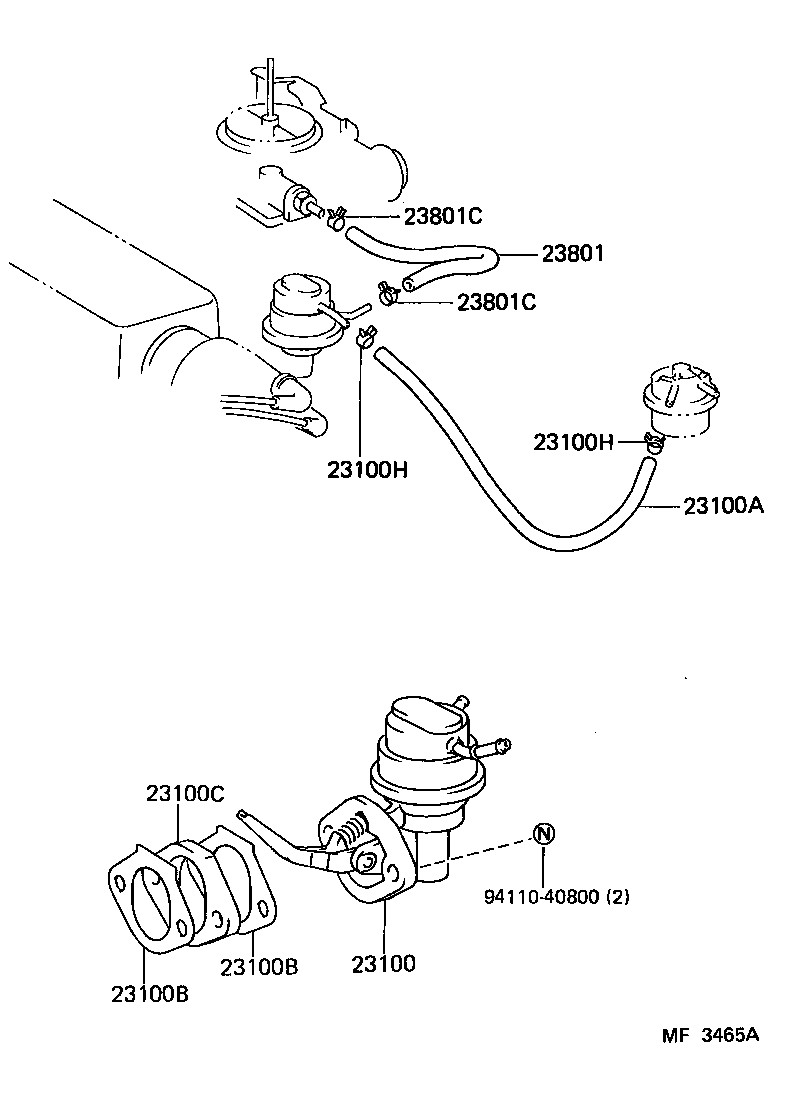

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 9411040800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-10020

1EL,2EL..EP7#

 1
23100-10021

1EL,2EL..EP7#

 1
23100A - HOSE, FUEL
95333-06040

1EL,2EL..EP7#

 1
95333-06036

1EL,2EL..EP7#

 1
95332-06040

1EL,2EL..EP7#

*H,L=360

 1
23100B - GASKET, FUEL PUMP
90923-05017

1EL,2EL..EP7#

 2
23100B - GASKET, FUEL PUMP
90923-05017

1EL,2EL..EP7#

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

1EL,2EL..EP7#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1EL,2EL..EP7#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1EL,2EL..EP7#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06010

1EL,2EL..EP7#

*H,L=100

 1
95333-06010

1EL,2EL..EP7#

*H,L=100

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1EL,2EL..EP7#

 2
90467-11009

1EL,2EL..EP7#

 2
90467-11049

1EL,2EL..EP7#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1EL,2EL..EP7#

 2
90467-11009

1EL,2EL..EP7#

 2
90467-11049

1EL,2EL..EP7#

 2
Common parts
94110-40800
