EP71R-PHHNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

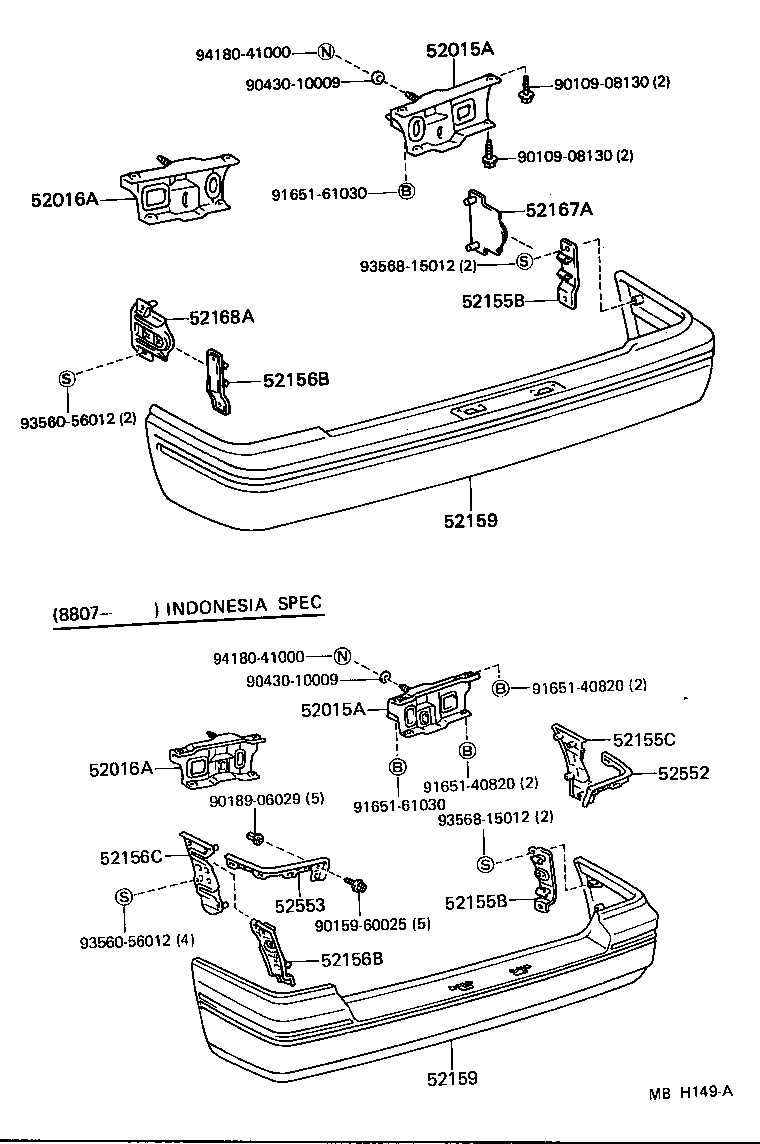

Click highlighted areas on diagram

diagram 52015A 52015A 52016A 52016A 52155B 52155B 52155C 52156B 52156B 52156C 52159 52159 52167A 52168A 52552 52553 9010908130 9010908130 9015960025 9018906029 9043010009 9043010009 9165140820 9165140820 9165161030 9165161030 9356056012 9356056012 9356815012 9356815012 9418041000 9418041000
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-10060

EP7#

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-10060

EP7#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-10060

EP7#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-10060

EP7#

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-10020

EP7#

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-10020

EP7#

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-10020

EP7#

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52157-10020

EP7#

 1
52159 - COVER, REAR BUMPER
52159-10070

EP7#

 1
52159 - COVER, REAR BUMPER
52159-10070

EP7#

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-10020

EP7#

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52167-10020

EP7#

 1
Common parts
90109-08130
90159-60025
90189-06029
90430-10009
91651-40820
91651-61030
93560-56012
93568-15012
94180-41000
