EP71R-PGMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

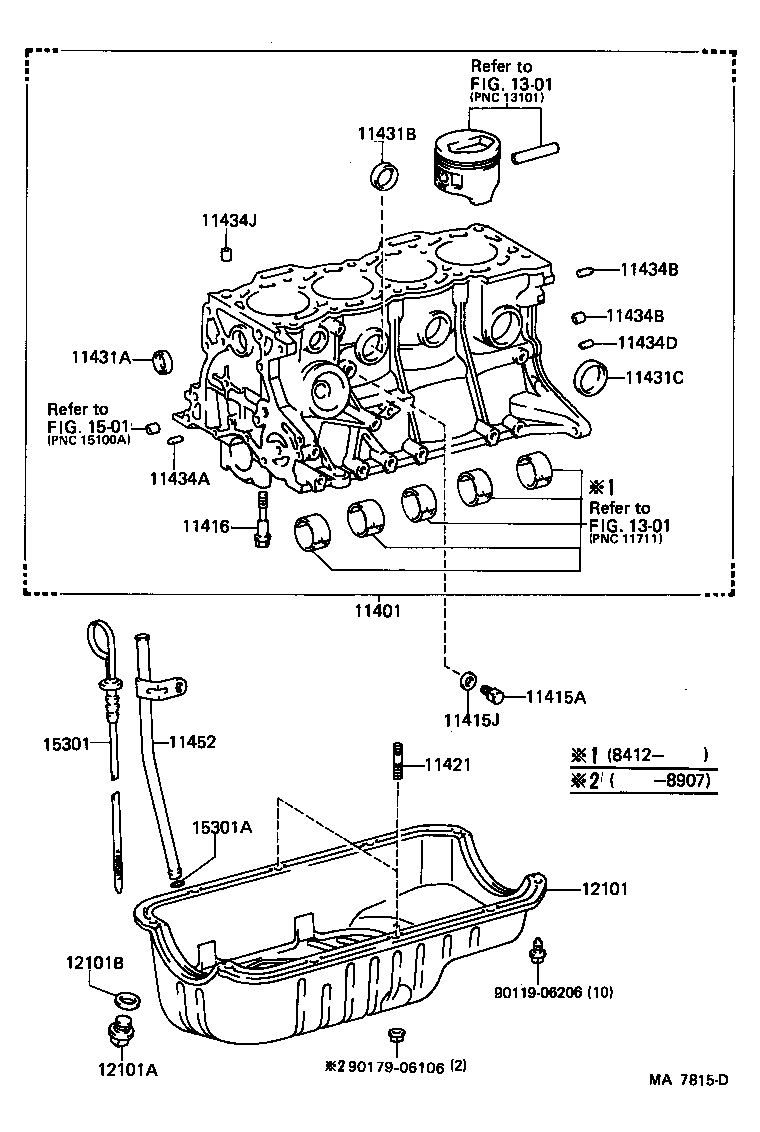

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11421 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906206 9017906106
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19316

2EL..EP71

 1
11401-19318

2EL..EP71,76

 1
11401-19317

2EL..EP71

 1
11401-19315

2EL..EP71

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

1EL,2EL..EP7#

 1
11415J - GASKET(FOR DRAIN COCK)
90430-13002

1EL,2EL..EP7#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

1EL,2EL..EP7#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1EL,2EL..EP7#

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

1EL,2EL..EP7#

OD=25

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

1EL,2EL..EP7#

OD=30

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

1EL,2EL..EP7#

OD=35

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

1EL,2EL..EP7#

L=11,OD=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

1EL,2EL..EP7#

L=20,OD=10,L=20,OD=8

 1
90253-15003

1EL,2EL..EP7#

L=17,OD=15,L=14,OD=15

 1
90250-10052

1EL,2EL..EP7#

L=20,OD=10,L=20,OD=10

 1
90253-15001

1EL,2EL..EP7#

L=14,OD=15,L=14,OD=15

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

1EL,2EL..EP7#

L=20,OD=10,L=20,OD=8

 1
90253-15003

1EL,2EL..EP7#

L=17,OD=15,L=14,OD=15

 1
90250-10052

1EL,2EL..EP7#

L=20,OD=10,L=20,OD=10

 1
90253-15001

1EL,2EL..EP7#

L=14,OD=15,L=14,OD=15

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1EL,2EL..EP7#

L=11,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

1EL,2EL..EP7#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-10010

1EL,2EL..EP7#

 1
12101 - PAN SUB-ASSY, OIL
12101-10010

1EL,2EL..EP7#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1EL,2EL..EP7#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

1EL,2EL..EP7#

 1
90430-12011

1EL,2EL..EP7#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-10020

1EL,2EL..EP7#

 1
15301-10021

1EL,2EL..EP7#

 1
15301-10022

1EL,2EL..EP7#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

1EL,2EL..EP7#

 1
Common parts
90119-06206
90179-06106
Linked diagrams
1301
1501
