EP71R-PGHNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

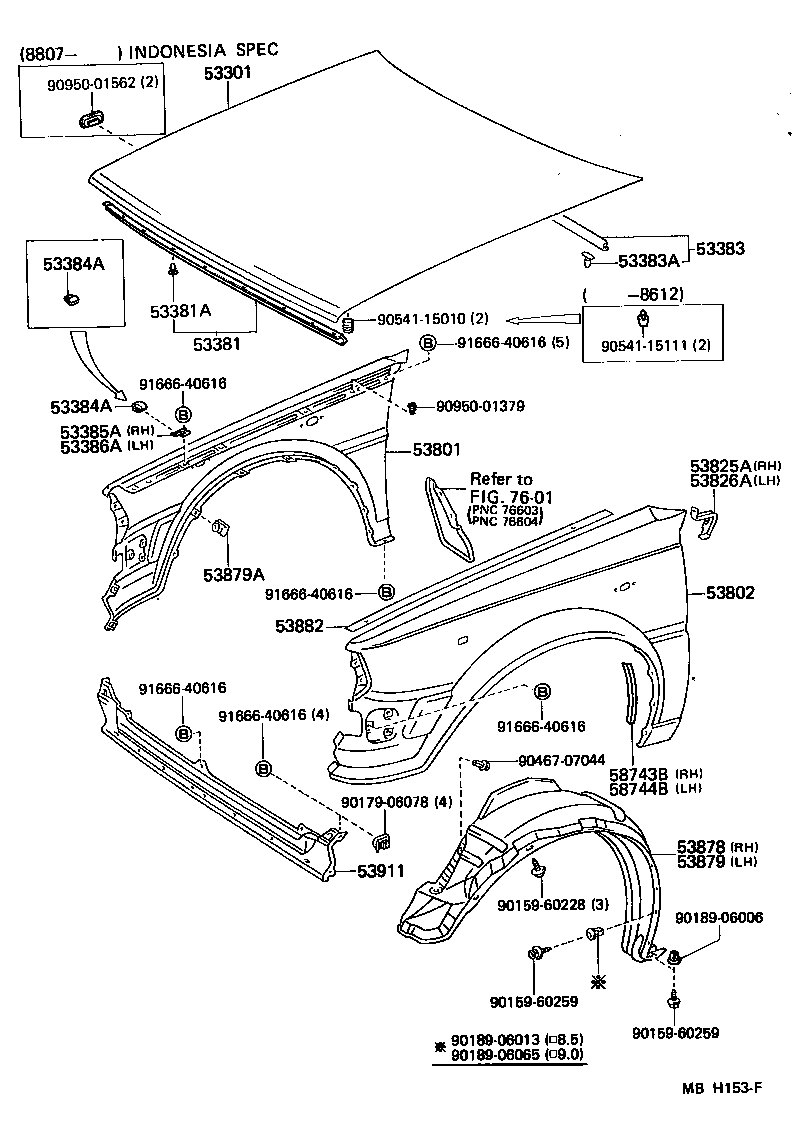

Click highlighted areas on diagram

diagram 53301 53381 53381A 53383 53383A 53384A 53384A 53385A 53386A 53801 53802 53825A 53826A 53878 53879 53879A 53882 53911 58743B 58744B 7601 9015960228 9015960259 9015960259 9017906078 9018906006 9018906013 9018906065 9046707044 9054115010 9054115111 9095001379 9095001562 9166640616 9166640616 9166640616 9166640616 9166640616 9166640616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10220

EP7#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-10020

EP7#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08030

EP7#

 8
53384A - BUMPER, FENDER TO HOOD
53384-10040

EP7#

 1
53384-10050

EP7#

 1
53384A - BUMPER, FENDER TO HOOD
53384-10040

EP7#

 1
53384-10050

EP7#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-10500

EP7#

 1
53801-10480

EP7#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10600

EP7#

 1
53802-10580

EP7#

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-10030

EP7#

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-10030

EP7#

 1
53878 - LINER, FRONT FENDER, RH
53875-10020

EP7#

 1
53879 - LINER, FRONT FENDER, LH
53876-10020

EP7#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-10010

EP7#

 6
53882 - PACKING, FRONT FENDER MAIN
53882-10050

EP7#

 2
53911 - PANEL, FRONT VALANCE
53911-10080

EP7#

 1
53911-10090

EP7#..XL

W/LWR GRILLE

 1
Common parts
90159-60228
90159-60259
90179-06078
90189-06006
90189-06013
90189-06065
90467-07044
90541-15010
90541-15111
90950-01379
90950-01562
91666-40616
Linked diagrams
7601
