EP71L-PHMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

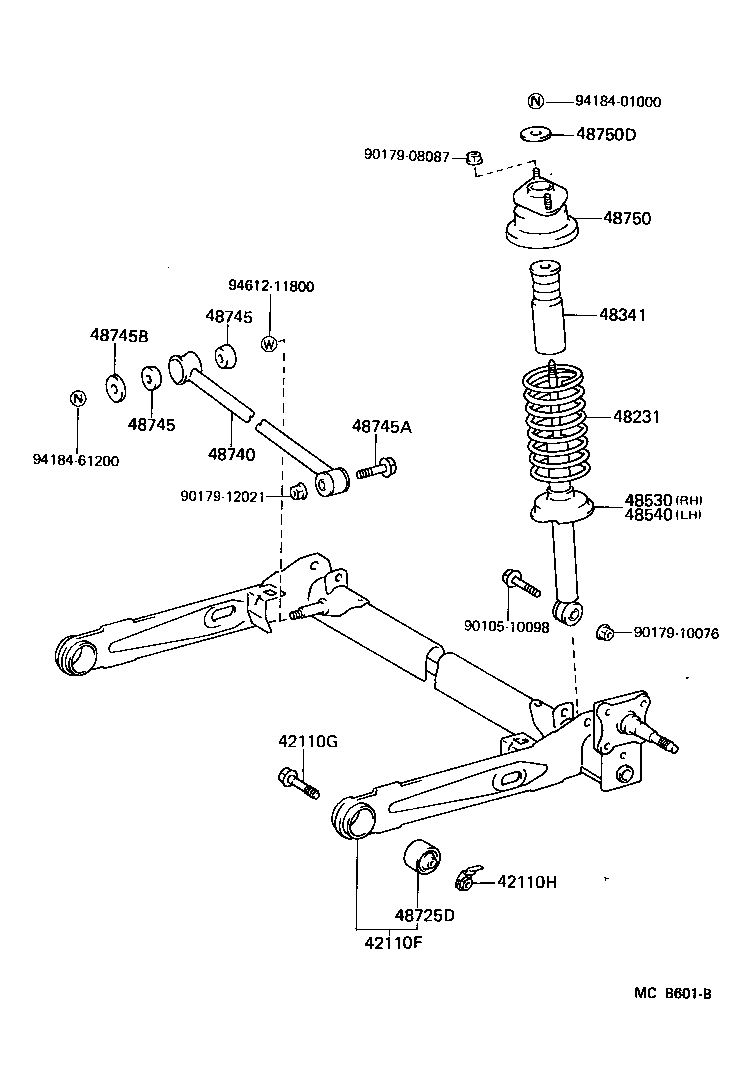

Click highlighted areas on diagram

diagram 42110F 42110G 42110H 48231 48341 48530 48540 48725D 48740 48745 48745 48745A 48745B 48750 48750D 9010510098 9017908087 9017910076 9017912021 9418401000 9418461200 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-10060

EP7#

HARSH ROAD PACKAGE

 1
42110-10040

EP7#

HARSH ROAD PACKAGE

 1
42110-10030

EP7#

 1
42110-10050

EP7#

 1
42110G - BOLT (FOR REAR AXLE BEAM)
90105-12088

EP7#

 2
42110H - NUT (FOR REAR AXLE BEAM)
90179-12041

EP7#

 2
48231 - SPRING, COIL, REAR
48231-10170

EP71..5F;EP70..RHD..5F

 2
48231-10180

EP7#..MTM

HARSH ROAD PACKAGE

 2
48231-10140

EP7#

 2
48341 - BUMPER, REAR SPRING
48341-10070

EP7#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-10010

EP7#

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-10010

EP7#

 1
48725D - BUSH, REAR SUSPENSION ARM, NO.3
48725-10010

EP7#

 2
48725-16110

EP7#

 2
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-10010

EP7#

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12037

EP7#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EP7#

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10010

EP7#

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP7#

 2
Common parts
90105-10098
90179-08087
90179-10076
90179-12021
94184-01000
94184-61200
94612-11800

(8410- )

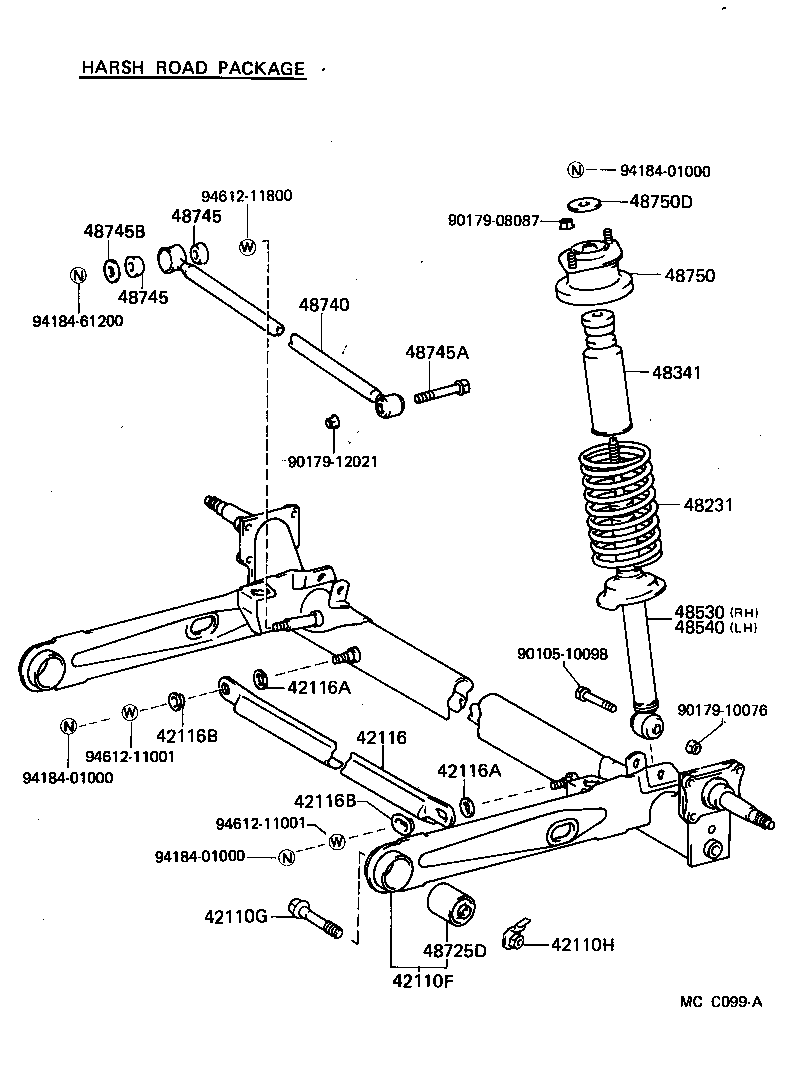

Click highlighted areas on diagram

diagram 42110F 42110G 42110H 42116 42116A 42116A 42116B 42116B 48231 48341 48530 48540 48725D 48740 48745 48745 48745A 48745B 48750 48750D 9010510098 9017908087 9017910076 9017912021 9418401000 9418401000 9418401000 9418461200 9461211001 9461211001 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-10060

EP7#

HARSH ROAD PACKAGE

 1
42110-10040

EP7#

HARSH ROAD PACKAGE

 1
42110-10030

EP7#

 1
42110-10050

EP7#

 1
42110G - BOLT (FOR REAR AXLE BEAM)
90105-12088

EP7#

 2
42110H - NUT (FOR REAR AXLE BEAM)
90179-12041

EP7#

 2
42116 - COVER, REAR AXLE BEAM
42116-10020

EP7#

HARSH ROAD PACKAGE

 1
42116A - CUSHION, NO.1 (FOR REAR AXLE BEAM COVER)
90540-14004

EP7#

HARSH ROAD PACKAGE

 2
42116A - CUSHION, NO.1 (FOR REAR AXLE BEAM COVER)
90540-14004

EP7#

HARSH ROAD PACKAGE

 2
42116B - CUSHION, NO.2 (FOR REAR AXLE BEAM COVER)
90540-14005

EP7#

HARSH ROAD PACKAGE,RH

 1
90540-14006

EP7#

HARSH ROAD PACKAGE,LH

 1
42116B - CUSHION, NO.2 (FOR REAR AXLE BEAM COVER)
90540-14005

EP7#

HARSH ROAD PACKAGE,RH

 1
90540-14006

EP7#

HARSH ROAD PACKAGE,LH

 1
48231 - SPRING, COIL, REAR
48231-10170

EP71..5F;EP70..RHD..5F

 2
48231-10180

EP7#..MTM

HARSH ROAD PACKAGE

 2
48231-10140

EP7#

 2
48341 - BUMPER, REAR SPRING
48341-10070

EP7#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-10010

EP7#

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-10010

EP7#

 1
48725D - BUSH, REAR SUSPENSION ARM, NO.3
48725-10010

EP7#

 2
48725-16110

EP7#

 2
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-10010

EP7#

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12037

EP7#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EP7#

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10010

EP7#

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP7#

 2
Common parts
90105-10098
90179-08087
90179-10076
90179-12021
94184-01000
94184-61200
94612-11001
94612-11800
