EP71L-PHHNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

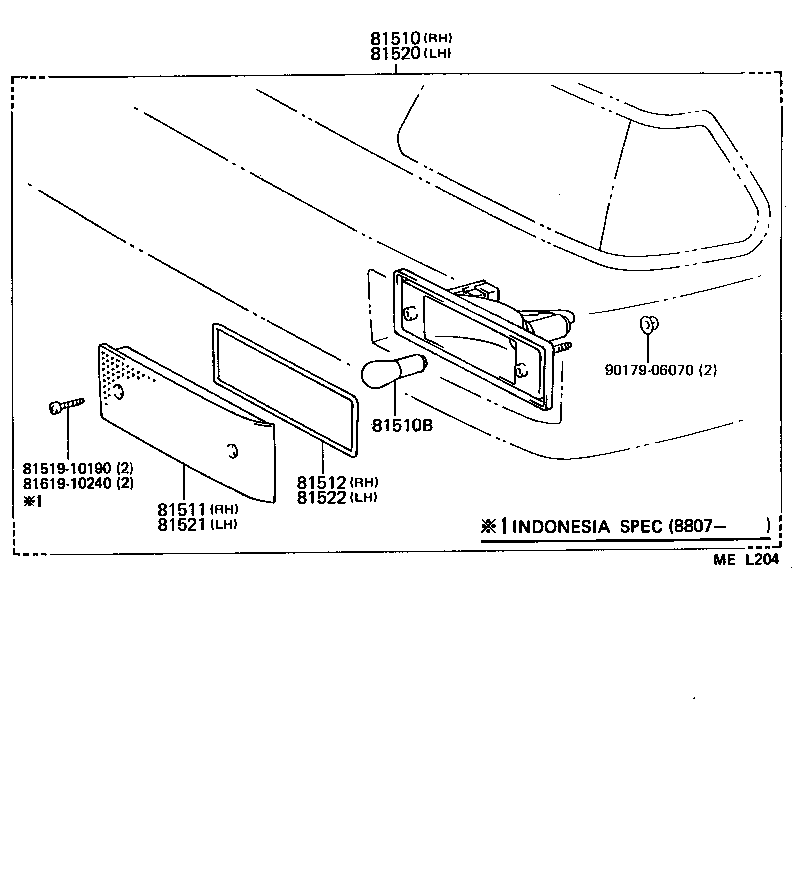

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 8151910190 81520 81521 81522 8161910240 9017906070
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80020

EP7#

 1
81510-80020

EP7#

 1
81510-80019

EP7#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

EP7#

12V 21W,12V 21W

 1
99132-11210

EP7#

12V 21W,12V 21W

 2
99132-11230

EP7#

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-10190

EP7#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-10190

EP7#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80020

EP7#

 1
81520-80019

EP7#

 1
81520-80020

EP7#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-10190

EP7#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-10190

EP7#

 1
Common parts
81519-10190
81619-10240
90179-06070
