EP71L-PHHNS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2EL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )LHD

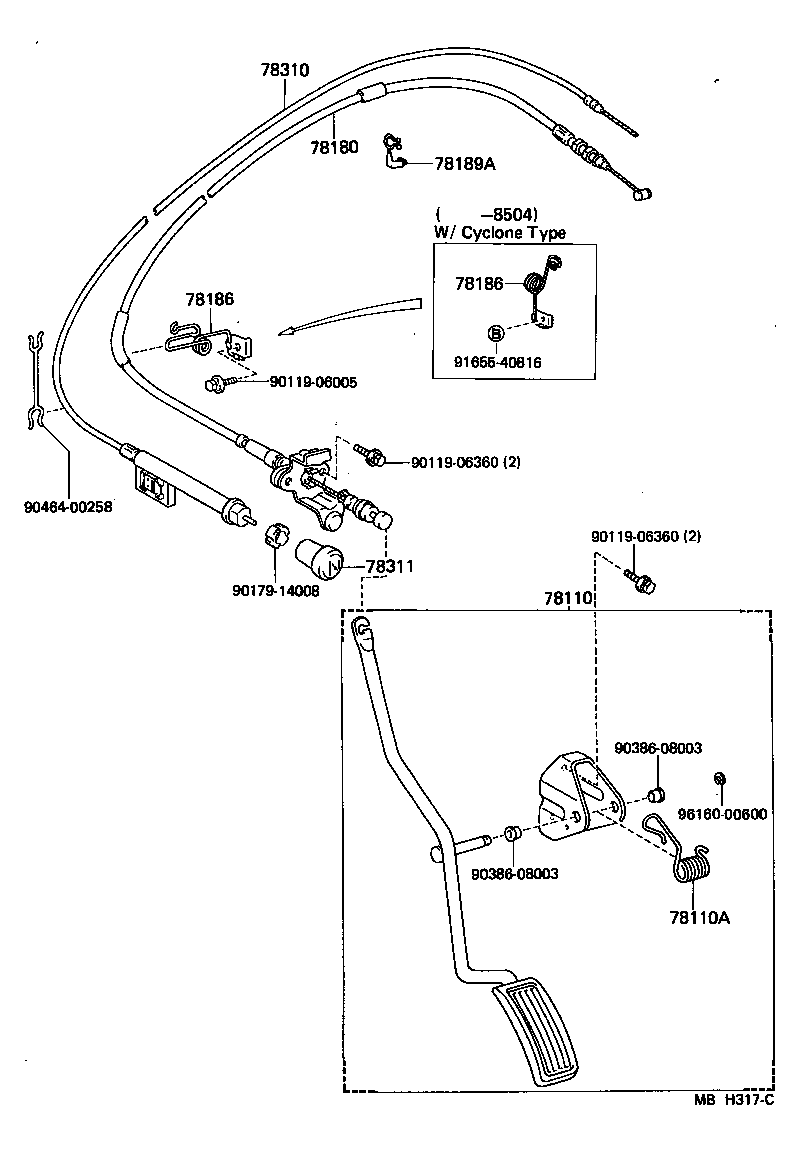

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-10020 |
EP7#..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18053 |
EP7#..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10250 |
EP7#..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10060 |
EP7#..LHD |
1 | ||
| 78186-10070 |
EP7#..LHD W/CYCLONE TYPE |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10060 |
EP7#..LHD |
1 | ||
| 78186-10070 |
EP7#..LHD W/CYCLONE TYPE |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78186-10080 |
EP7#..LHD |
1 | ||
| 78186-10080 |
EP7#..LHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 84506-10011 |
EP7#..LHD |
1 | ||
| 84506-10010 |
EP7#..LHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-10040 |
EP70,71 |
1 | ||
| 78311-10041 |
EP7# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06360 | ||||
| 90179-14008 | ||||
| 90386-08003 | ||||
| 90464-00258 | ||||
| 91655-40816 | ||||
| 96160-00600 | ||||
