EP71L-PGHNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8410- )

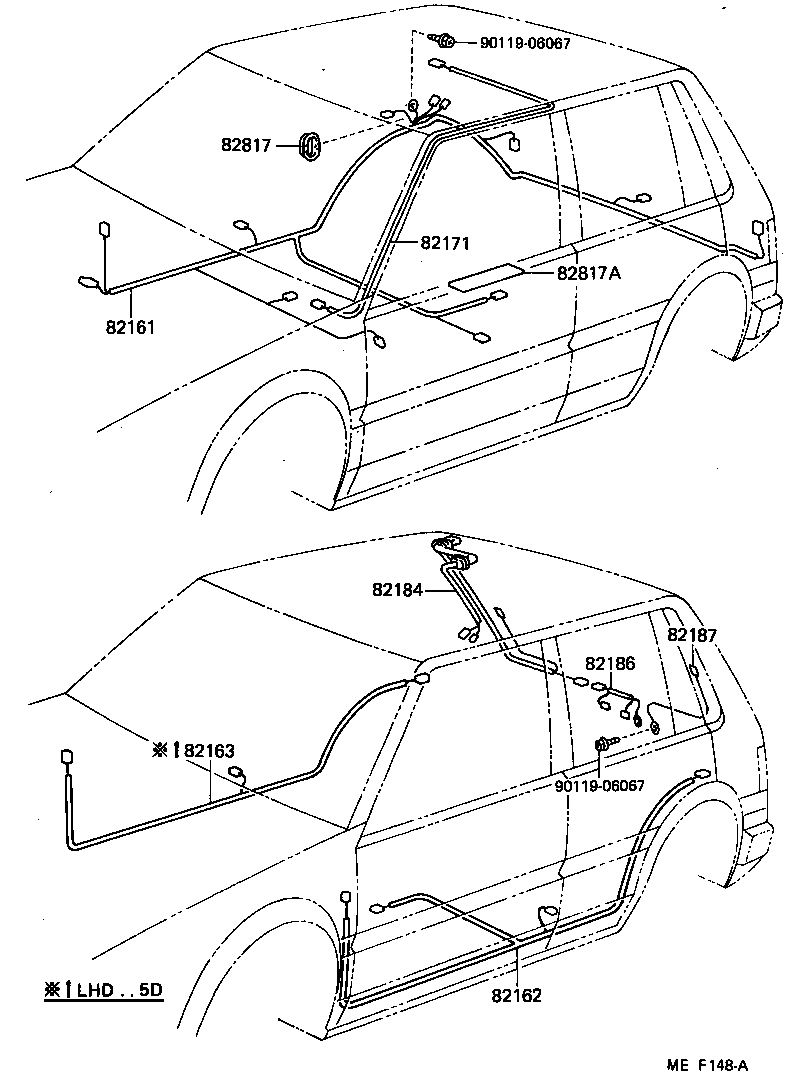

Click highlighted areas on diagram

diagram 82161 82162 82163 82171 82184 82186 82187 82817 82817A 9011906067 9011906067
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-10080

EP7#..LHD

W/*RWD

 1
82161-10090

EP70,71..LHD

W/*RWD,*TAC &/OR *AIC

 1
82161-10150

EP7#..LHD

 1
82162 - WIRE, FLOOR, NO.2
82162-10060

EP71..LHD..3FC

 1
82171 - WIRE, ROOF, NO.1
82171-10010

EP7#

 1
82171-10030

EP70,71..XL

W/SUN ROOF

 1
82184 - WIRE, BACK DOOR, NO.1
82184-10011

EP7#

W/*RWD

 1
82184-10020

EP7#

W/*RW,W/*RWD & *RW

 1
82184-10010

EP7#

W/*RWD

 1
82184-10021

EP7#

W/*RW,W/*RWD & *RW

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-10010

EP7#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-10140

EP7#

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16010

EP7#

 1
Common parts
90119-06067

ILLUST NO. 4 OF 4(8410- )

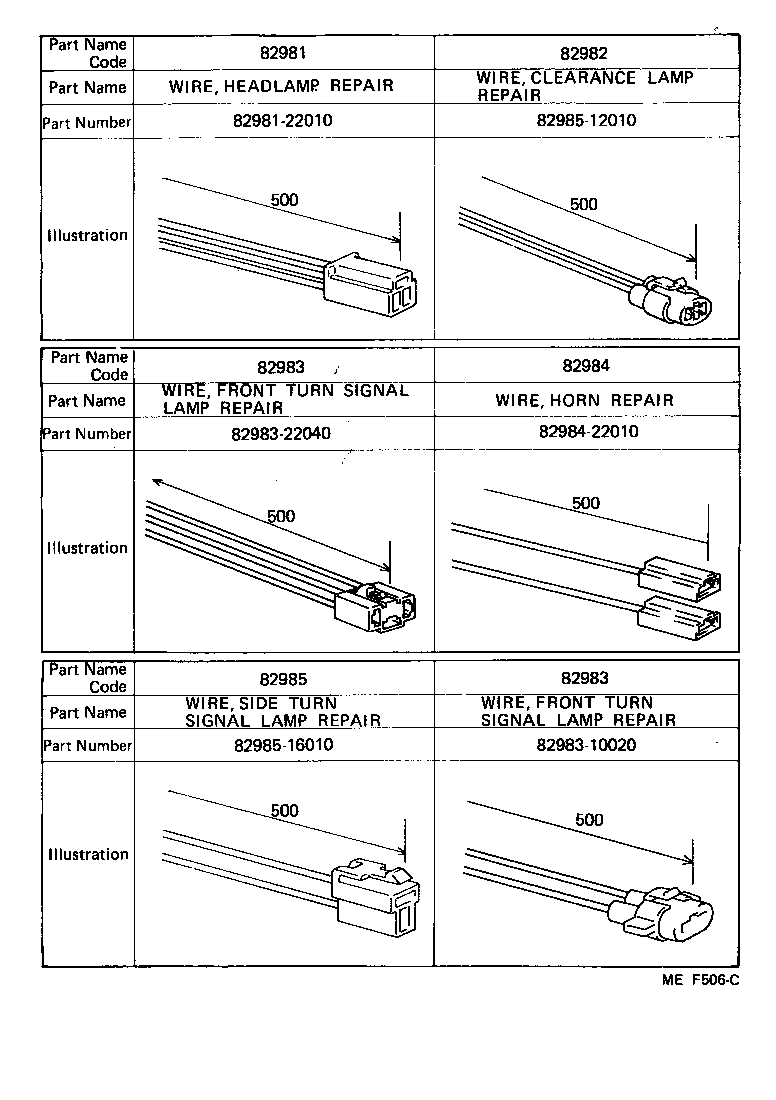

Click highlighted areas on diagram

REPAIR WIRE

diagram 82981 8298122010 82982 82983 82983 8298310020 8298322040 82984 8298422010 82985 8298512010 8298516010
Part # Description Qty Price
82981 - WIRE, HEADLAMP REPAIR
82981-22010

EP7#

 1
82982 - WIRE, CLEARANCE LAMP REPAIR
82985-12010

EP7#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040

EP7#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040

EP7#

 1
82984 - WIRE, HORN REPAIR
82984-22010

EP7#

 1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82985-16010

EP7#

 1
Common parts
82981-22010
82983-10020
82983-22040
82984-22010
82985-12010
82985-16010

ILLUST NO. 1 OF 4(8410- )

Click highlighted areas on diagram

diagram 82001 82001 82111 82121 82122 82123 82131 82210C 82210C 82817B 82817B 82823 8401 8401 8401 8401 8401 9011906067 9011906067 9011906067 9011906067 9011906067 9161160812 91651F0816 9165241016 9359016014
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07241

EP7#

E/G HUNGER TO BODY

 1
90980-07242

EP7#

E/G CLUTCH TO BODY

 1
82001 - CABLE, BOND, NO.1
90980-07241

EP7#

E/G HUNGER TO BODY

 1
90980-07242

EP7#

E/G CLUTCH TO BODY

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-10060

EP7#..LHD

 1
82121 - WIRE, ENGINE
82121-10181

EP71..LHD..3FC

 1
82121-10180

EP71..LHD..3FC

 1
82121-10182

EP71..LHD..3FC

 1
82122 - WIRE, ENGINE, NO.2
82122-10010

EP7#

 1
82123 - WIRE, ENGINE, NO.3
82123-10020

EP70,71

 1
82131 - WIRE, COWL
82131-10450

EP70,71..LHD..XL

 1
82131-10240

EP70,71..LHD..XL

W/*SNR,W/*RW,W/*SNR & *RW

 1
82210C - FUSIBLE LINK
90982-08190

EP7#

60A,TERM.:FEMALE,YEL,60A

 1
90982-08188

EP7#

30A,TERM.:FEMALE,PNK,30A

 1
82210C - FUSIBLE LINK
90982-08190

EP7#

60A,TERM.:FEMALE,YEL,60A

 1
90982-08188

EP7#

30A,TERM.:FEMALE,PNK,30A

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-22280

EP70,71

 2
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-22280

EP70,71

 2
82823 - CAP, TERMINAL, NO.1
82823-20040

EP7#

 1
Common parts
90119-06067
91611-60812
91651-F0816
91652-41016
93590-16014
Linked diagrams
8401

ILLUST NO. 3 OF 4(8410- )

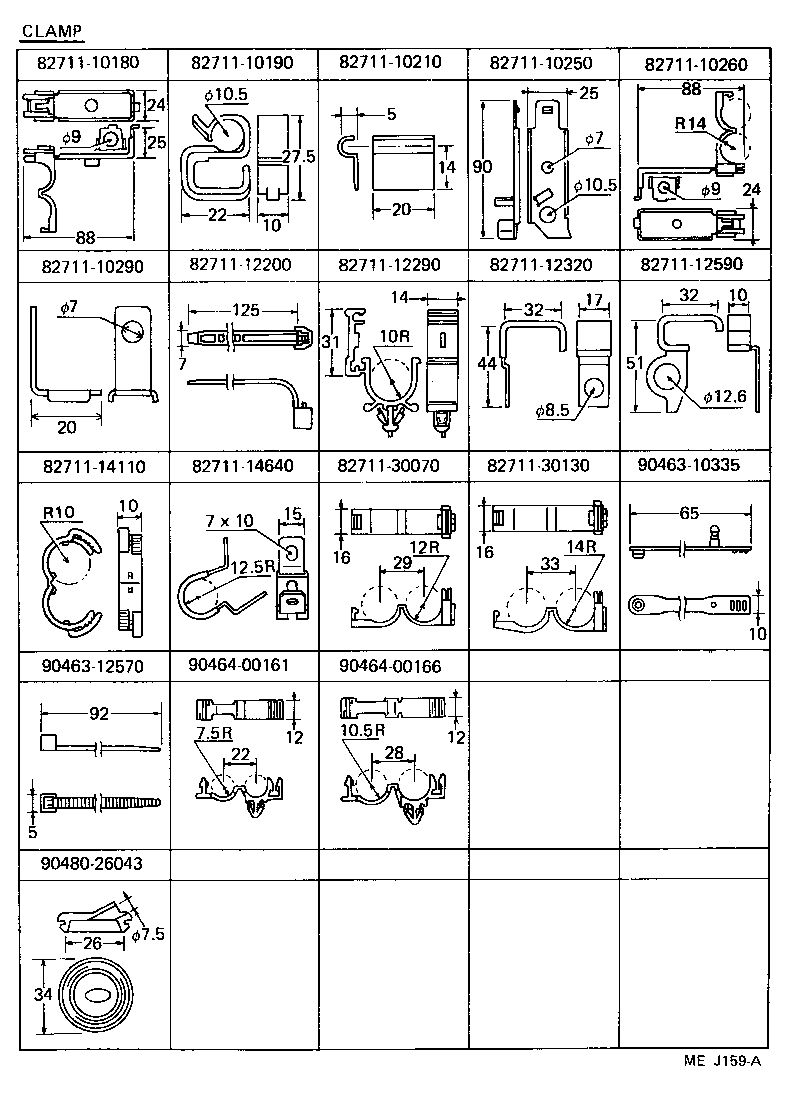

Click highlighted areas on diagram

CLAMP & GROMMET

diagram 8271110180 8271110190 8271110210 8271110250 8271110260 8271110290 8271112200 8271112290 8271112320 8271112590 8271114110 8271114640 8271130070 8271130130 9046310335 9046312570 9046400161 9046400166 9048026043
Part # Description Qty Price
Common parts
82711-10180
82711-10190
82711-10210
82711-10250
82711-10260
82711-10290
82711-12200
82711-12290
82711-12320
82711-12590
82711-14110
82711-14640
82711-30070
82711-30130
90463-10335
90463-12570
90464-00161
90464-00166
90480-26043
