EP71L-PGHNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

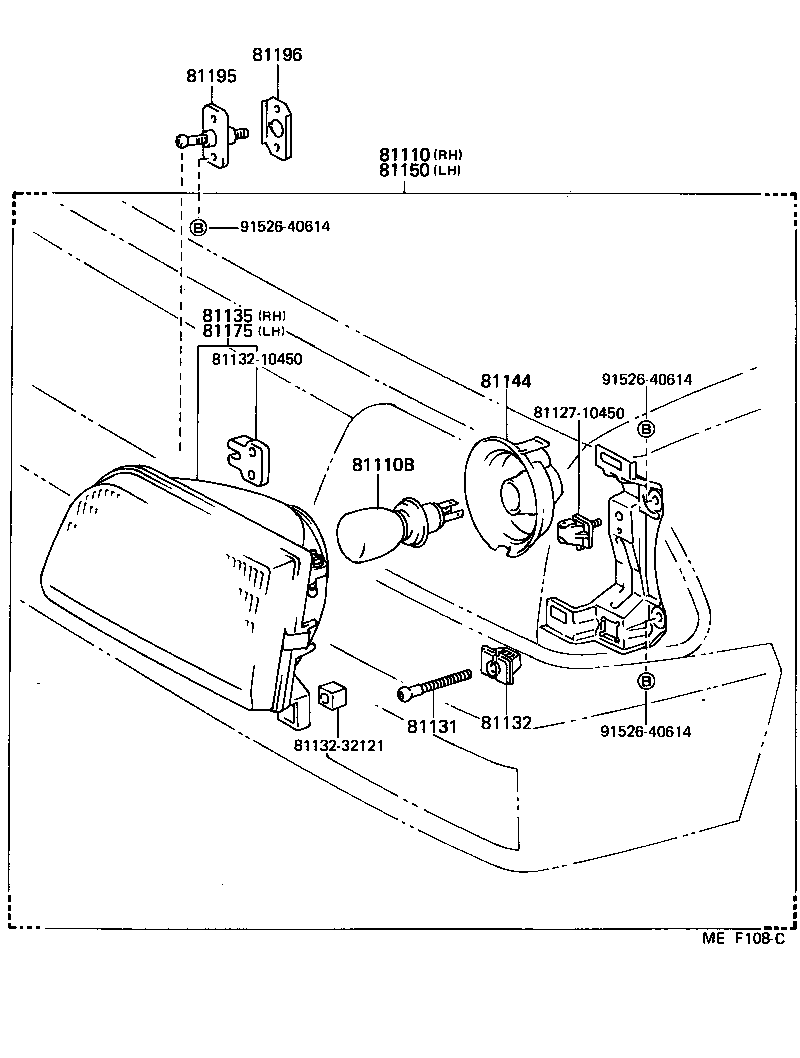

Click highlighted areas on diagram

diagram 81110 81110B 8112710450 81131 81132 8113210450 8113232121 81135 81144 81150 81175 81195 81196 9152640614 9152640614 9152640614
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80435

EP7#..LHD

WHITE

 1
81110-80437

EP7#..LHD

YELLOW

 1
81110-80433

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81110-80436

EP7#..LHD

*HAL WHITE

 1
81110-80434

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81110-80438

EP7#..LHD

*HAL,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

EP7#..LHD

12V 60/55W,*HAL *YE,12V 60/55W,*HAL YELLOW

 2
90981-13014

EP7#..LHD

12V 45/40W,YELLOW,12V 45/40W,YELLOW

 2
90981-13013

EP7#

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
90981-13015

EP7#

12V 60/55W,*HAL *WH,12V 60/55W,*HAL WHITE

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10450

EP7#

 2
81132 - NUT, HEADLAMP SELF LOCKING
81137-10450

EP7#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-10480

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81135-10500

EP7#..LHD

WHITE OR YELLOW

 1
81135-10510

EP7#..LHD

*HAL(WHITE OR YELLOW)

 1
81135-10490

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81144 - COVER, HEADLAMP, NO.1
81139-10450

EP7#

 2
81150 - HEADLAMP ASSY, LH
81150-80429

EP7#..LHD

YELLOW

 1
81150-80427

EP7#..LHD

WHITE

 1
81150-80426

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81150-80428

EP7#..LHD

*HAL WHITE

 1
81150-80425

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81150-80430

EP7#..LHD

*HAL YELLOW

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-10480

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81175-10500

EP7#..LHD

WHITE OR YELLOW

 1
81175-10510

EP7#..LHD

*HAL(WHITE OR YELLOW)

 1
81175-10490

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81195 - SCREW, HEADLAMP
81195-10010

EP7#

 2
81196 - RETAINER, HEADLAMP
81196-10010

EP7#

 2
Common parts
81127-10450
81132-10450
81132-32121
91526-40614

(8807- )

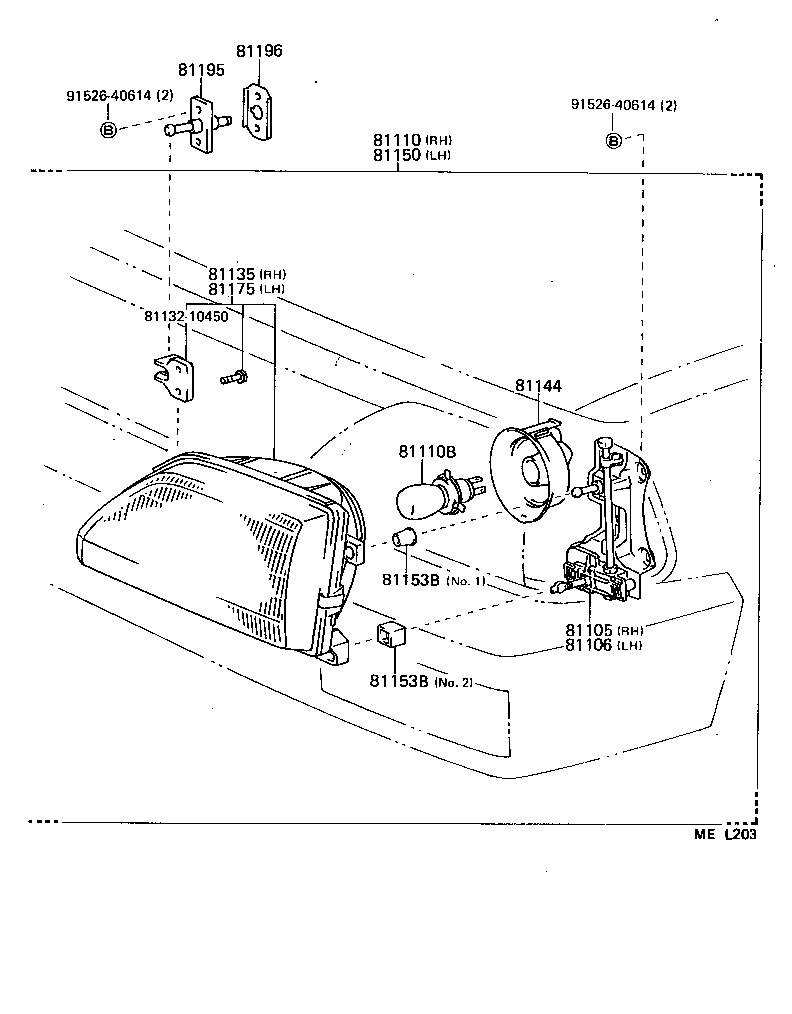

Click highlighted areas on diagram

INDONESIA SPEC

diagram 81105 81106 81110 81110B 8113210450 81135 81144 81150 81153B 81153B 81175 81195 81196 9152640614 9152640614
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80435

EP7#..LHD

WHITE

 1
81110-80437

EP7#..LHD

YELLOW

 1
81110-80433

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81110-80436

EP7#..LHD

*HAL WHITE

 1
81110-80434

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81110-80438

EP7#..LHD

*HAL,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

EP7#..LHD

12V 60/55W,*HAL *YE,12V 60/55W,*HAL YELLOW

 2
90981-13014

EP7#..LHD

12V 45/40W,YELLOW,12V 45/40W,YELLOW

 2
90981-13013

EP7#

12V 45/40W,WHITE,12V 45/40W,WHITE

 2
90981-13015

EP7#

12V 60/55W,*HAL *WH,12V 60/55W,*HAL WHITE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81135-10480

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81135-10500

EP7#..LHD

WHITE OR YELLOW

 1
81135-10510

EP7#..LHD

*HAL(WHITE OR YELLOW)

 1
81135-10490

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81144 - COVER, HEADLAMP, NO.1
81139-10450

EP7#

 2
81150 - HEADLAMP ASSY, LH
81150-80429

EP7#..LHD

YELLOW

 1
81150-80427

EP7#..LHD

WHITE

 1
81150-80426

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81150-80428

EP7#..LHD

*HAL WHITE

 1
81150-80425

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81150-80430

EP7#..LHD

*HAL YELLOW

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-10480

EP7#..LHD

WHITE,LH DRIVE SPEC(*46)

 1
81175-10500

EP7#..LHD

WHITE OR YELLOW

 1
81175-10510

EP7#..LHD

*HAL(WHITE OR YELLOW)

 1
81175-10490

EP7#..LHD

*HAL WHITE,LH DRIVE SPEC(*46)

 1
81195 - SCREW, HEADLAMP
81195-10010

EP7#

 2
81196 - RETAINER, HEADLAMP
81196-10010

EP7#

 2
Common parts
81132-10450
91526-40614
