EP70R-PHMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D

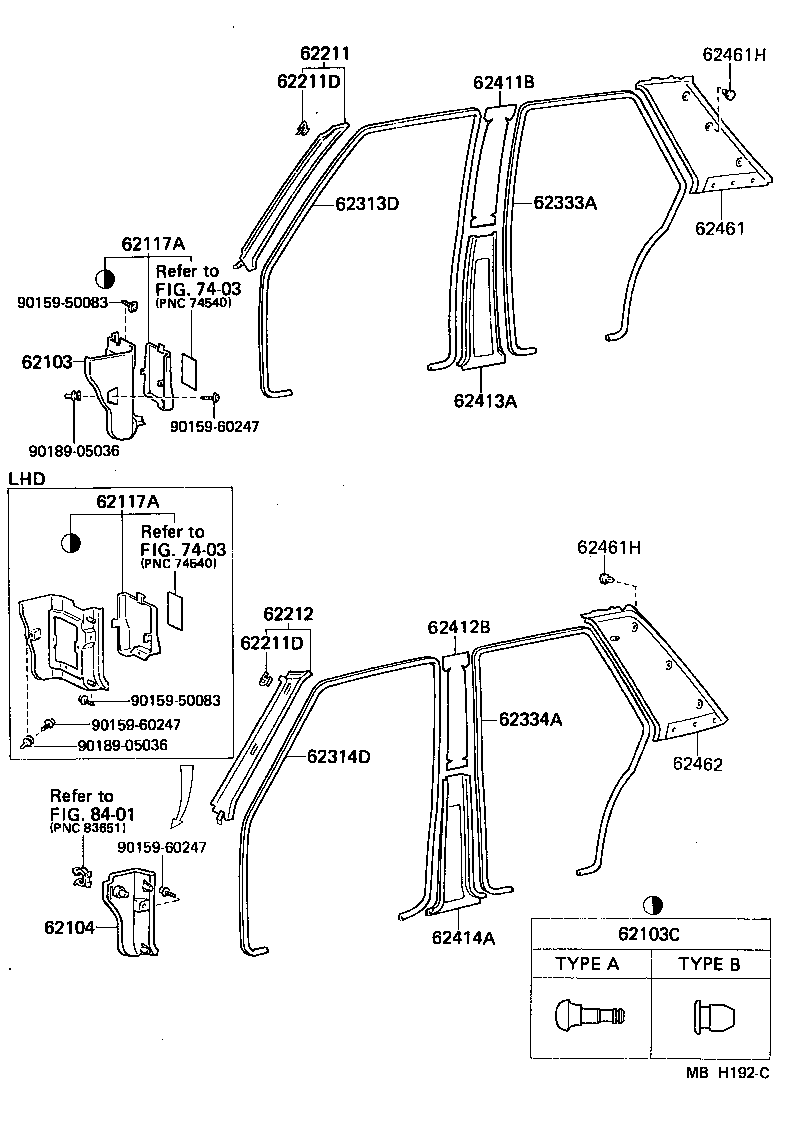

Click highlighted areas on diagram

diagram 62103 62103C 62104 62117A 62117A 62211 62211D 62211D 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62461 62461H 62461H 62462 7403 7403 8401 9015950083 9015950083 9015960247 9015960247 9015960247 9018905036 9018905036
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62111-1006004

EP70,71..RHD

BLUE,BLUE

 1
62111-1006006

EP70,71..RHD

BROWN,BROWN

 1
62111-1006003

EP70,71..RHD

GRAY,GRAY

 1
62103C - CLIP, COWL SIDE TRIM BOARD SET
90467-0803114

EP7#

TYPE B,BLUE,BLUE

 1
90467-0803126

EP70,71..RHD

TYPE B,BROWN,BROWN

 1
90467-0501503

EP7#

TYPE A,GRAY,GRAY

 1
90467-0501514

EP7#

TYPE A,BLUE,BLUE

 1
90467-0803103

EP7#

TYPE B,GRAY,GRAY

 1
90467-0501526

EP70,71..RHD

TYPE A,BROWN,BROWN

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62112-1006004

EP70,71..RHD

BLUE,BLUE

 1
62112-1006003

EP70,71..RHD

GRAY,GRAY

 1
62112-1006006

EP70,71..RHD

BROWN,BROWN

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
55545-1002003

EP70,71..RHD

GRAY,GRAY

 1
55545-1005003

EP70,71..RHD

GRAY,GRAY

 1
55545-1002004

EP70,71..RHD

BLUE,BLUE

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
55545-1002003

EP70,71..RHD

GRAY,GRAY

 1
55545-1005003

EP70,71..RHD

GRAY,GRAY

 1
55545-1002004

EP70,71..RHD

BLUE,BLUE

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-1006003

EP7#

GRAY,GRAY

 1
62211-1006004

EP7#

BLUE,BLUE

 1
62211-1006006

EP7#

BROWN,BROWN

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90468-05011

EP7#

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90468-05011

EP7#

 4
62212 - GARNISH, FRONT PILLAR, LH
62212-1006003

EP7#

GRAY,GRAY

 1
62212-1006006

EP7#

BROWN,BROWN

 1
62212-1006004

EP7#

BLUE,BLUE

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-1007003

EP70,71..5D

GRAY,GRAY

 1
62313-1007004

EP70,71..5D

BLUE,BLUE

 1
62313-1007006

EP70,71..5D

BROWN,BROWN

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-1007003

EP70,71..5D

GRAY,GRAY

 1
62313-1007004

EP70,71..5D

BLUE,BLUE

 1
62313-1007006

EP70,71..5D

BROWN,BROWN

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-1002003

EP70,71..5D

GRAY,GRAY

 1
62333-1002004

EP70,71..5D

BLUE,BLUE

 1
62333-1002006

EP70,71..5D

BROWN,BROWN

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-1002003

EP70,71..5D

GRAY,GRAY

 1
62333-1002006

EP70,71..5D

BROWN,BROWN

 1
62333-1002004

EP70,71..5D

BLUE,BLUE

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-1007018

EP70,71..5D..XL

IVORY,IVORY

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-1007018

EP70,71..5D..XL

IVORY,IVORY

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-1005004

EP70,71..5D

BLUE,BLUE

 1
62413-1005006

EP70,71..5D

BROWN,BROWN

 1
62413-1005003

EP70,71..5D

GRAY,GRAY

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-1005004

EP70,71..5D

BLUE,BLUE

 1
62414-1005006

EP70,71..5D

BROWN,BROWN

 1
62414-1005003

EP70,71..5D

GRAY,GRAY

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62471-1013018

EP70,71..RHD..5D..5F

INDONESIA SPEC,IVORY,IVORY

 1
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-0705306

EP70,71..RHD..5D..5F

INDONESIA SPEC,BROWN,BROWN

 6
90467-0705303

EP70,71..RHD..5D..5F

INDONESIA SPEC,GRAY,GRAY

 6
90467-0705318

EP70,71..RHD..5D..5F

INDONESIA SPEC,IVORY,IVORY

 6
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-0705306

EP70,71..RHD..5D..5F

INDONESIA SPEC,BROWN,BROWN

 6
90467-0705303

EP70,71..RHD..5D..5F

INDONESIA SPEC,GRAY,GRAY

 6
90467-0705318

EP70,71..RHD..5D..5F

INDONESIA SPEC,IVORY,IVORY

 6
62462 - GARNISH, ROOF SIDE TRIM, LH
62472-1013018

EP70,71..RHD..5D..5F

INDONESIA SPEC,IVORY,IVORY

 1
Common parts
90159-50083
90159-60247
90189-05036
Linked diagrams
7403
8401
