EP70R-PHKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

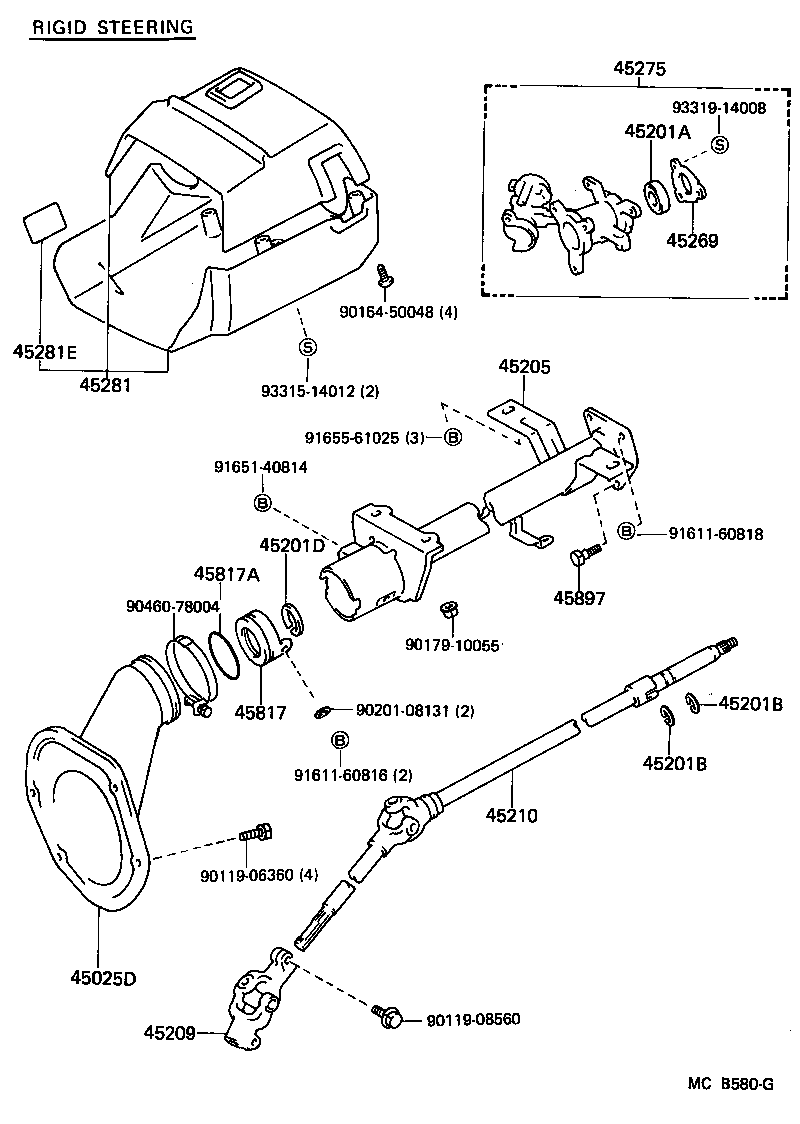

Click highlighted areas on diagram

diagram 45025D 45201A 45201B 45201B 45201D 45205 45209 45210 45269 45275 45281 45281E 45817 45817A 45897 9011906360 9011908560 9016450048 9017910055 9020108131 9046078004 9161160816 9161160818 9165140814 9165561025 9331514012 9331914008
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10031

EP70,71..RHD

 1
45025-10030

EP70,71..RHD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

EP7#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#

T=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#

T=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

EP7#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-10140

EP70,71..RHD

RIGID STEERING

 1
45204-10010

EP70,71..RHD

LWR,COLLAPSIBLE STEERING

 1
45205-10150

EP70,71..RHD

UPR,COLLAPSIBLE STEERING

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-10020

EP7#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-10090

EP70,71..RHD

RIGID STEERING

 1
45210-10120

EP70,71..RHD

COLLAPSIBLE STEERING

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010

EP7#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-10040

EP70,71..RHD

 1
45280-10041

EP70,71..RHD

 1
45281 - HOUSING, STEERING COLUMN
45286-1091001

EP70,71..RHD

BLACK,BLACK

 1
45286-1091401

EP70,71..RHD

BLACK,BLACK

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

EP70,71..RHD

 1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020

EP7#

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
96711-24056

EP7#

 1
90301-54002

EP7#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

EP7#

 1
Common parts
90119-06360
90119-08560
90164-50048
90179-10055
90201-08131
90460-78004
91611-60816
91611-60818
91651-40814
91655-61025
93315-14012
93319-14008

(8410- )

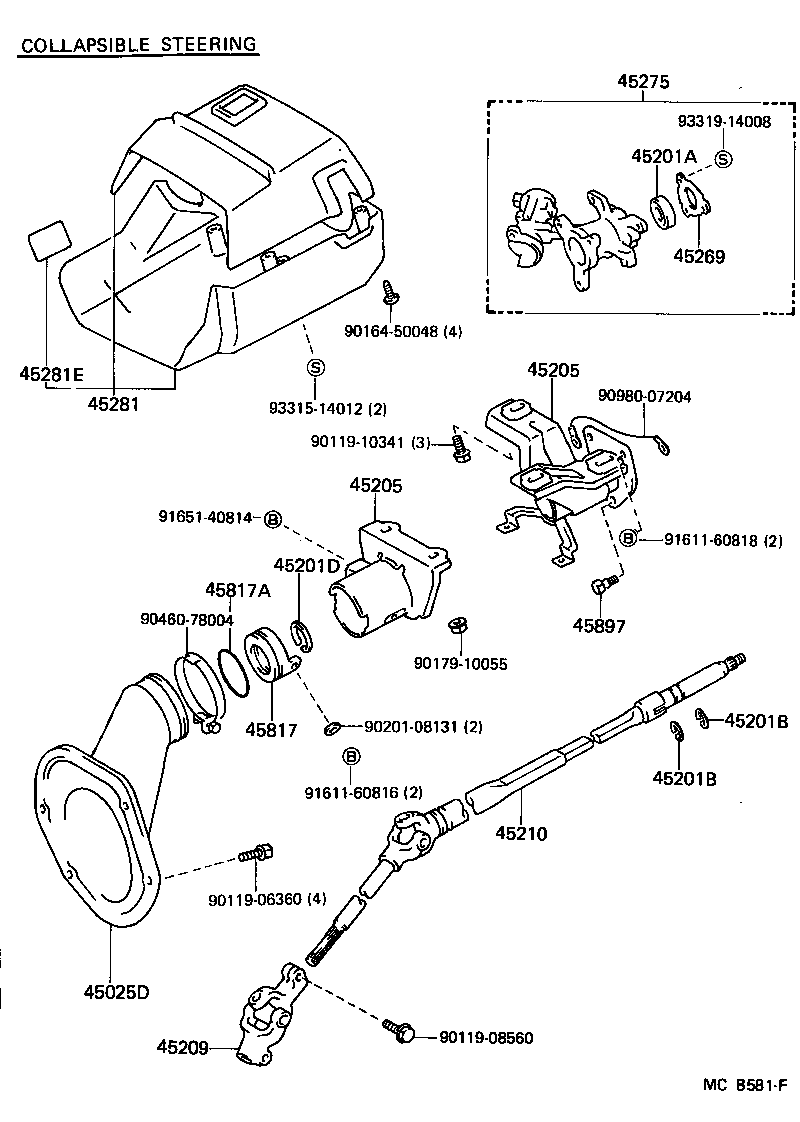

Click highlighted areas on diagram

diagram 45025D 45201A 45201B 45201B 45201D 45205 45205 45209 45210 45269 45275 45281 45281E 45817 45817A 45897 9011906360 9011908560 9011910341 9016450048 9017910055 9020108131 9046078004 9098007204 9161160816 9161160818 9165140814 9331514012 9331914008
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10031

EP70,71..RHD

 1
45025-10030

EP70,71..RHD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

EP7#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#

T=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#

T=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

EP7#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-10140

EP70,71..RHD

RIGID STEERING

 1
45204-10010

EP70,71..RHD

LWR,COLLAPSIBLE STEERING

 1
45205-10150

EP70,71..RHD

UPR,COLLAPSIBLE STEERING

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-10140

EP70,71..RHD

RIGID STEERING

 1
45204-10010

EP70,71..RHD

LWR,COLLAPSIBLE STEERING

 1
45205-10150

EP70,71..RHD

UPR,COLLAPSIBLE STEERING

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-10020

EP7#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-10090

EP70,71..RHD

RIGID STEERING

 1
45210-10120

EP70,71..RHD

COLLAPSIBLE STEERING

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010

EP7#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-10040

EP70,71..RHD

 1
45280-10041

EP70,71..RHD

 1
45281 - HOUSING, STEERING COLUMN
45286-1091001

EP70,71..RHD

BLACK,BLACK

 1
45286-1091401

EP70,71..RHD

BLACK,BLACK

 1
45281E - PLATE, SAFETY CAUTION
45283-22010

EP70,71..RHD

 1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020

EP7#

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
96711-24056

EP7#

 1
90301-54002

EP7#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

EP7#

 1
Common parts
90119-06360
90119-08560
90119-10341
90164-50048
90179-10055
90201-08131
90460-78004
90980-07204
91611-60816
91611-60818
91651-40814
93315-14012
93319-14008
