EP70R-PGMNS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1986
Engine
1EL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

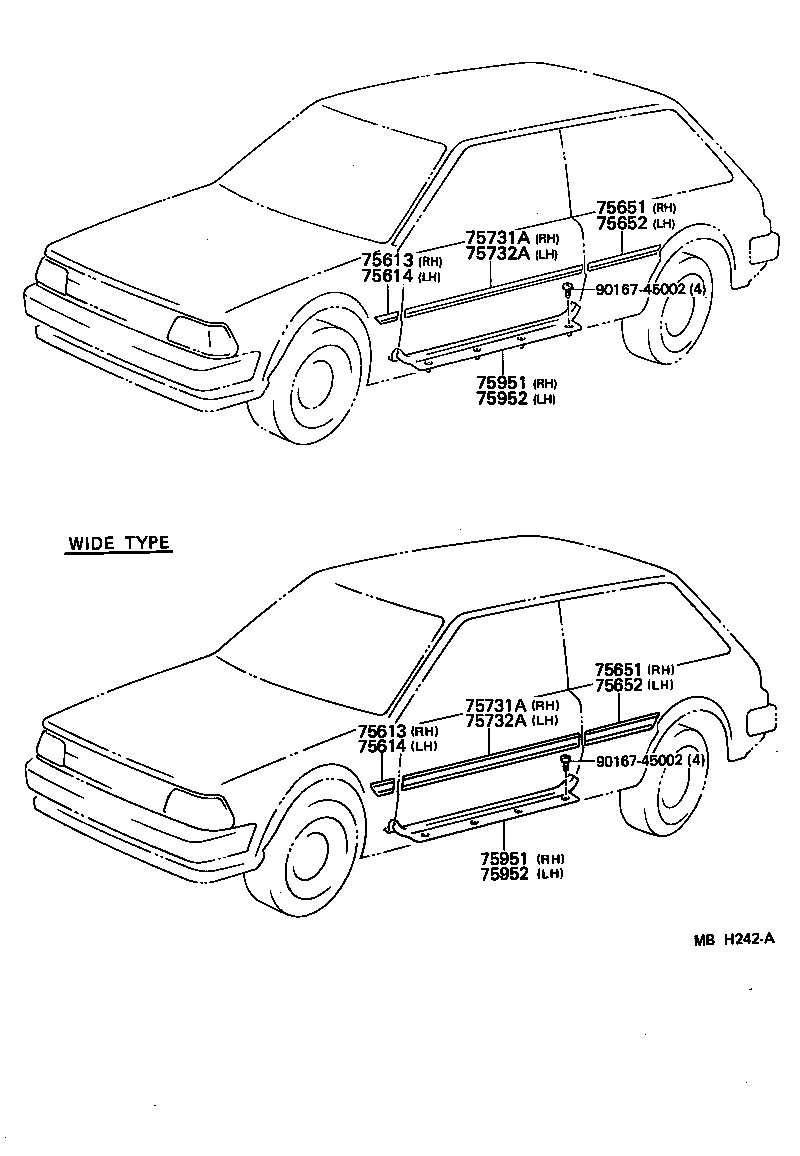

ILLUST NO. 2 OF 2(8410- )2D,3D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-10090 |
EP7# |
1 | ||
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-10090 |
EP7# |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-10090 |
EP7# |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-10090 |
EP7# |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-10140 |
EP70,71..3D |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-10140 |
EP70,71..3D |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-10130 |
EP70,71..3D |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-10130 |
EP70,71..3D |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-10230 |
EP70,71..3D |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-10230 |
EP70,71..3D |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-10220 |
EP70,71..3D |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-10220 |
EP70,71..3D |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-1003003 |
EP70,71..3D GRAY,GRAY |
1 | ||
| 67913-1003006 |
EP70,71..3D BROWN,BROWN |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-1003003 |
EP70,71..3D GRAY,GRAY |
1 | ||
| 67913-1003006 |
EP70,71..3D BROWN,BROWN |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67913-1003003 |
EP70,71..3D GRAY,GRAY |
1 | ||
| 67913-1003006 |
EP70,71..3D BROWN,BROWN |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67913-1003003 |
EP70,71..3D GRAY,GRAY |
1 | ||
| 67913-1003006 |
EP70,71..3D BROWN,BROWN |
1 | ||
| Common parts | ||||
| 90167-45002 | ||||
ILLUST NO. 1 OF 2(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75549B - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2 | ||||
| 75549-10020 |
EP7# |
6 | ||
| 75551A - CLIP, ROOF DRIP MOULDING, NO.1 | ||||
| 75561-10010 |
EP7# |
16 | ||
| 75551B - CLIP, ROOF DRIP MOULDING, NO.2 | ||||
| 75546-10010 |
EP7# |
10 | ||
| 75553 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-10080 |
EP7# |
1 | ||
| 75554 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-10080 |
EP7# |
1 | ||
