EP70R-PGMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1986
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

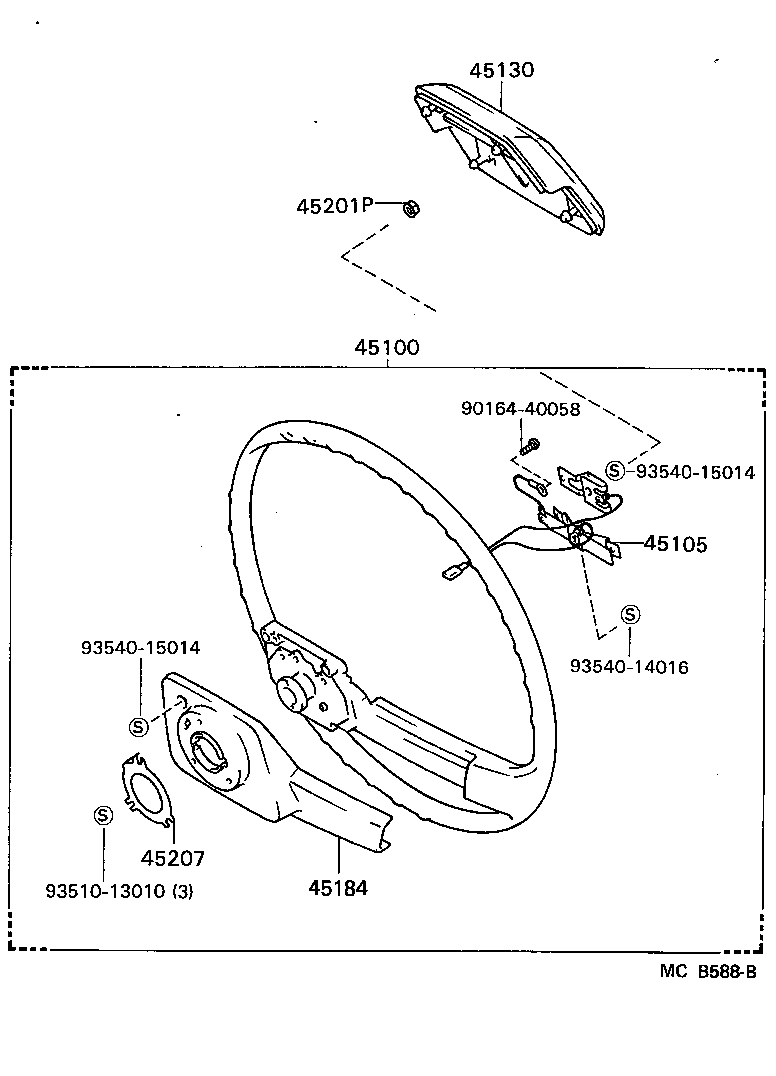

Click highlighted areas on diagram

diagram 45100 45105 45130 45201P 45207 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027001

EP7#

2SPOKE,POLYPROPYLENE,BLACK,BLACK

 1
45100-10280

EP7#..CS,XL

URETHANE

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

EP7#

 1
45105-10020

EP7#..CS,XL

W/URETHANE

 1
45130 - BUTTON ASSY, HORN
45130-1006001

EP7#..CS,XL

W/URETHANE,BLACK,BLACK

 1
45130-1008001

EP7#

BLACK,BLACK

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP7#

 1
45207 - RING, HORN CONTACT
45176-30070

EP7#..CS,XL

W/URETHANE

 1
45176-35020

EP7#

 1
Common parts
93510-15014

(8410- )CS,XL

Click highlighted areas on diagram

diagram 45100 45105 45130 45184 45201P 45207 9016440058 9351013010 9354014016 9354015014 9354015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027001

EP7#

2SPOKE,POLYPROPYLENE,BLACK,BLACK

 1
45100-10280

EP7#..CS,XL

URETHANE

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

EP7#

 1
45105-10020

EP7#..CS,XL

W/URETHANE

 1
45130 - BUTTON ASSY, HORN
45130-1006001

EP7#..CS,XL

W/URETHANE,BLACK,BLACK

 1
45130-1008001

EP7#

BLACK,BLACK

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1004001

EP7#..CS,XL

BLACK,BLACK

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP7#

 1
45207 - RING, HORN CONTACT
45176-30070

EP7#..CS,XL

W/URETHANE

 1
45176-35020

EP7#

 1
Common parts
90164-40058
93510-13010
93540-14016
93540-15014
