EP70R-PGKRS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

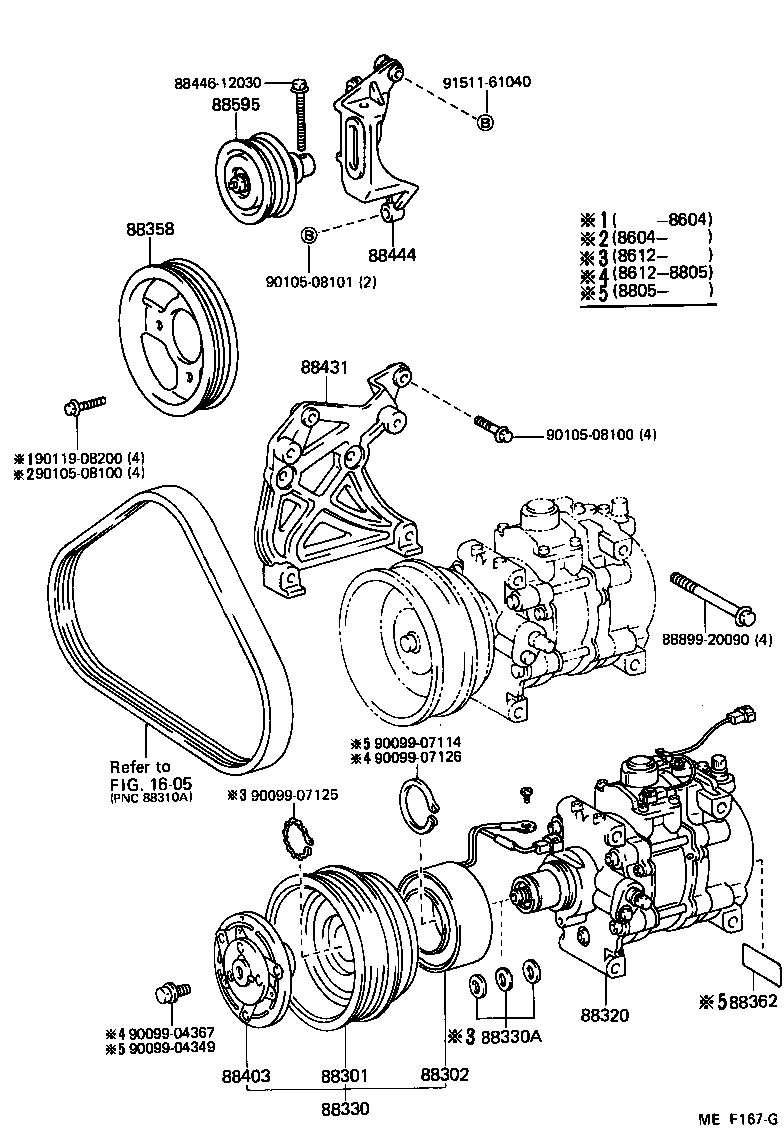

ILLUST NO. 1 OF 2(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-10010 |
EP7# |
1 | ||
| 88412-10070 |
EP70 |
1 | ||
| 88412-10031 |
EP70 |
1 | ||
| 88412-10120 |
EP70 |
1 | ||
| 88412-10030 |
EP70 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EP7# |
1 | ||
| 88411-10030 |
EP7# |
1 | ||
| 88411-10010 |
EP7# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10060 |
EP7# |
1 | ||
| 88320-10090 |
EP7# |
1 | ||
| 88320-10180 |
EP7# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-10020 |
EP7# |
1 | ||
| 88410-10040 |
EP70 |
1 | ||
| 88410-10041 |
EP70 |
1 | ||
| 88410-10042 |
EP70 |
1 | ||
| 88410-10110 |
EP70 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-10030 |
EP7# |
1 | ||
| 88335-14020 |
EP7# |
1 | ||
| 88358 - PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE | ||||
| 88358-10011 |
EP7# |
1 | ||
| 88358-10010 |
EP7# |
1 | ||
| 88362 - PLATE, COOLER COMPRESSOR SEAL | ||||
| 88356-12010 |
EP7# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
EP7# |
1 | ||
| 88403-10010 |
EP7# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-10040 |
EP7# |
1 | ||
| 88431-16060 |
EP7# |
1 | ||
| 88431-10041 |
EP7# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-10021 |
EP70 |
1 | ||
| 88444-10020 |
EP70 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
EP7# |
1 | ||
| Common parts | ||||
| 88446-12030 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-04367 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-07126 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 90119-08200 | ||||
| 91511-61040 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 2(8410-8612)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88308 - PUMP ASSY, COOLER COMPRESSOR | ||||
| 88309-10030 |
EP7# |
1 | ||
| 88309-10020 |
EP7# |
1 | ||
| 88309-10010 |
EP7# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10060 |
EP7# |
1 | ||
| 88320-10090 |
EP7# |
1 | ||
| 88320-10180 |
EP7# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-10010 |
EP7# |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP7# FR |
1 | ||
| 88321-10010 |
EP7# FR |
1 | ||
| 88321-10040 |
EP7# FR |
1 | ||
| 88322-10010 |
EP7# RR |
1 | ||
| 88322-10020 |
EP7# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP7# FR |
1 | ||
| 88321-10010 |
EP7# FR |
1 | ||
| 88321-10040 |
EP7# FR |
1 | ||
| 88322-10010 |
EP7# RR |
1 | ||
| 88322-10020 |
EP7# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-10010 |
EP7# |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-10030 |
EP7# |
1 | ||
| 88376-16020 |
EP7# |
1 | ||
| 88371-16050 |
EP7# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 88328-10010 |
EP7# |
2 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 90096-90029 |
EP7# |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88376-16030 |
EP7# |
1 | ||
| 88372-16030 |
EP7# |
1 | ||
| 88372-10040 |
EP7# |
1 | ||
| 88372-16040 |
EP7# |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-10020 |
EP7# |
1 | ||
| 88335-10010 |
EP7# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-10010 |
EP7# |
1 | ||
| 88336-10020 |
EP7# |
1 | ||
| 88360B - SEAL, SHAFT | ||||
| 88360-10020 |
EP7# |
1 | ||
| 88360-10010 |
EP7# |
1 | ||
| 88397 - CLIP, SENSOR | ||||
| 88397-10020 |
EP7# |
1 | ||
| 88397-10010 |
EP7# |
1 | ||
| Common parts | ||||
| 88329-10020 | ||||
| 88329-10030 | ||||
| 91511-40820 | ||||
ILLUST NO. 2 OF 2(8612- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88308 - PUMP ASSY, COOLER COMPRESSOR | ||||
| 88309-10030 |
EP7# |
1 | ||
| 88309-10020 |
EP7# |
1 | ||
| 88309-10010 |
EP7# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10060 |
EP7# |
1 | ||
| 88320-10090 |
EP7# |
1 | ||
| 88320-10180 |
EP7# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-10010 |
EP7# |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP7# FR |
1 | ||
| 88321-10010 |
EP7# FR |
1 | ||
| 88321-10040 |
EP7# FR |
1 | ||
| 88322-10010 |
EP7# RR |
1 | ||
| 88322-10020 |
EP7# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-10060 |
EP7# FR |
1 | ||
| 88321-10010 |
EP7# FR |
1 | ||
| 88321-10040 |
EP7# FR |
1 | ||
| 88322-10010 |
EP7# RR |
1 | ||
| 88322-10020 |
EP7# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-10010 |
EP7# |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-10030 |
EP7# |
1 | ||
| 88376-16020 |
EP7# |
1 | ||
| 88371-16050 |
EP7# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 88328-10010 |
EP7# |
2 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88376-16030 |
EP7# |
1 | ||
| 88372-16030 |
EP7# |
1 | ||
| 88372-10040 |
EP7# |
1 | ||
| 88372-16040 |
EP7# |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-10020 |
EP7# |
1 | ||
| 88335-10010 |
EP7# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-10010 |
EP7# |
1 | ||
| 88336-10020 |
EP7# |
1 | ||
| 88360B - SEAL, SHAFT | ||||
| 88360-10020 |
EP7# |
1 | ||
| 88360-10010 |
EP7# |
1 | ||
| 88397 - CLIP, SENSOR | ||||
| 88397-10020 |
EP7# |
1 | ||
| 88397-10010 |
EP7# |
1 | ||
| 88648C - WIRE SUB-ASSY, SENSOR | ||||
| 88648-10240 |
EP7# |
1 | ||
| Common parts | ||||
| 88329-10020 | ||||
| 91511-40820 | ||||
| 93381-15008 | ||||
