EP70R-PGKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1986
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

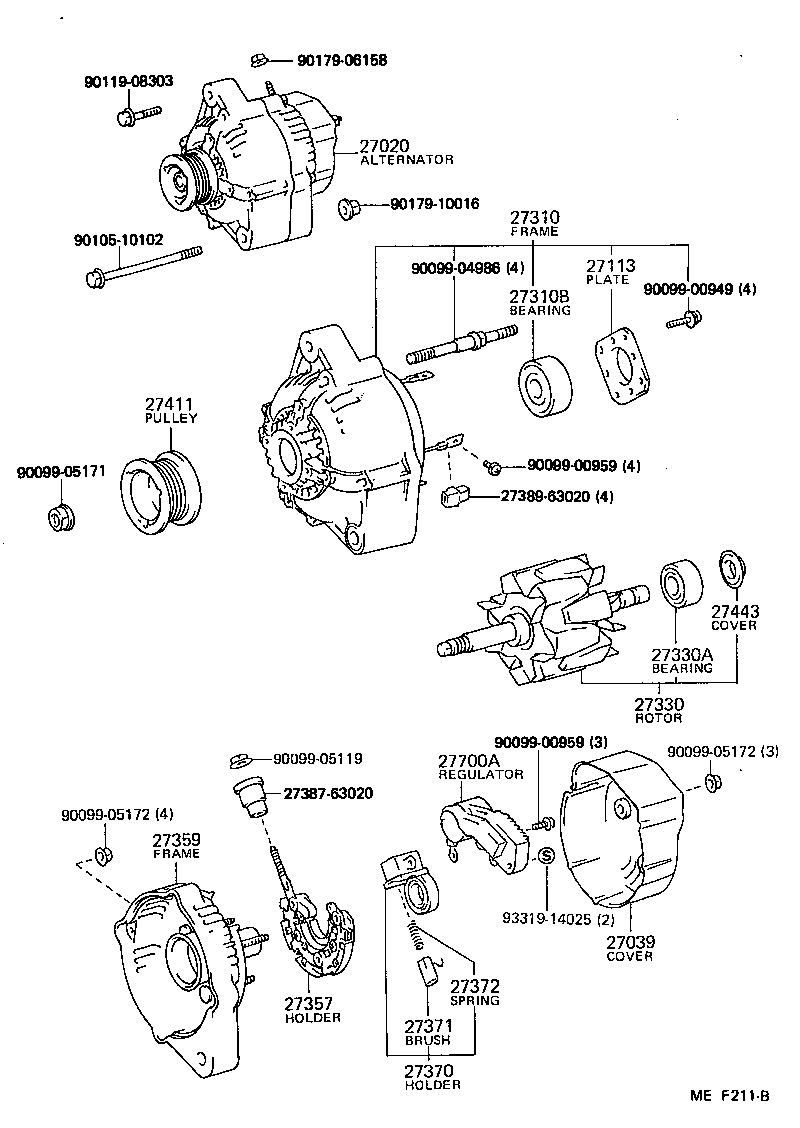

(8410-8602)

Click highlighted areas on diagram

12V 45A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904986 9009905119 9009905171 9009905172 9009905172 9010510102 9011908303 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-10070

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27060-10050

1EL,2EL..EP7#

12V 40A

 1
27060-10051

1EL,2EL..EP7#..MTM

12V 40A,12V 40A

 1
27060-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27060-10030

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27039 - COVER, ALTERNATOR REAR END
27039-10050

1EL,2EL..EP7#

12V 40A

 1
27039-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27039-10040

1EL,2EL..EP7#

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-10050

1EL,2EL..EP7#

12V 40A

 1
27312-63020

1EL,2EL..EP7#

12V 45A

 1
27312-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27312-10050

1EL,2EL..EP7#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27310-10040

1EL,2EL..EP7#

12V 45A

 1
27310-10050

1EL,2EL..EP7#

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10155

1EL,2EL..EP7#

12V 40A,45A

 1
90099-10155

1EL,2EL..EP7#

12V 40A

 1
90099-10155

1EL,2EL..EP7#..MTM

12V 40A

 1
90099-10152

1EL,2EL..EP7#

12V 45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-10040

1EL,2EL..EP7#

12V 45A

 1
27330-10050

1EL,2EL..EP7#

12V 40A

 1
27330-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

1EL,2EL..EP7#

12V 40A,45A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-10050

1EL,2EL..EP7#

12V 40A

 1
27357-10040

1EL,2EL..EP7#

12V 45A

 1
27357-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-10040

1EL,2EL..EP7#

12V 45A

 1
27359-10050

1EL,2EL..EP7#

12V 40A

 1
27359-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

1EL,2EL..EP7#

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27411 - PULLEY, ALTERNATOR
27411-10050

1EL,2EL..EP7#

12V 40A

 1
27411-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27411-10040

1EL,2EL..EP7#

12V 45A

 1
27411-10051

1EL,2EL..EP7#..MTM

12V 40A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1EL,2EL..EP7#

12V 40A,45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27700-63021

1EL,2EL..EP7#

12V 45A

 1
27700-10050

1EL,2EL..EP7#

12V 40A

 1
Common parts
27387-63020
27389-63020
90099-00949
90099-00959
90099-04986
90099-05119
90099-05171
90099-05172
90105-10102
90119-08303
90179-06158
90179-10016
93319-14025

(8410-8612)

Click highlighted areas on diagram

12V 40A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738710050 2738710080 27411 27443 27700A 9009900159 9009900160 9009900161 9009900959 9009904329 9009904330 9009905119 9009905131 9009905171 9009905172 9010510102 9011908303 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-10070

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27060-10050

1EL,2EL..EP7#

12V 40A

 1
27060-10051

1EL,2EL..EP7#..MTM

12V 40A,12V 40A

 1
27060-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27060-10030

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27039 - COVER, ALTERNATOR REAR END
27039-10050

1EL,2EL..EP7#

12V 40A

 1
27039-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27039-10040

1EL,2EL..EP7#

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-10050

1EL,2EL..EP7#

12V 40A

 1
27312-63020

1EL,2EL..EP7#

12V 45A

 1
27312-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27312-10050

1EL,2EL..EP7#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27310-10040

1EL,2EL..EP7#

12V 45A

 1
27310-10050

1EL,2EL..EP7#

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10155

1EL,2EL..EP7#

12V 40A,45A

 1
90099-10155

1EL,2EL..EP7#

12V 40A

 1
90099-10155

1EL,2EL..EP7#..MTM

12V 40A

 1
90099-10152

1EL,2EL..EP7#

12V 45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-10040

1EL,2EL..EP7#

12V 45A

 1
27330-10050

1EL,2EL..EP7#

12V 40A

 1
27330-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

1EL,2EL..EP7#

12V 40A,45A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-10050

1EL,2EL..EP7#

12V 40A

 1
27357-10040

1EL,2EL..EP7#

12V 45A

 1
27357-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-10040

1EL,2EL..EP7#

12V 45A

 1
27359-10050

1EL,2EL..EP7#

12V 40A

 1
27359-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

1EL,2EL..EP7#

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27411 - PULLEY, ALTERNATOR
27411-10050

1EL,2EL..EP7#

12V 40A

 1
27411-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27411-10040

1EL,2EL..EP7#

12V 45A

 1
27411-10051

1EL,2EL..EP7#..MTM

12V 40A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1EL,2EL..EP7#

12V 40A,45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27700-63021

1EL,2EL..EP7#

12V 45A

 1
27700-10050

1EL,2EL..EP7#

12V 40A

 1
Common parts
27387-10050
27387-10080
90099-00159
90099-00160
90099-00161
90099-00959
90099-04329
90099-04330
90099-05119
90099-05131
90099-05171
90099-05172
90105-10102
90119-08303
90179-06158
90179-10016
93319-14025

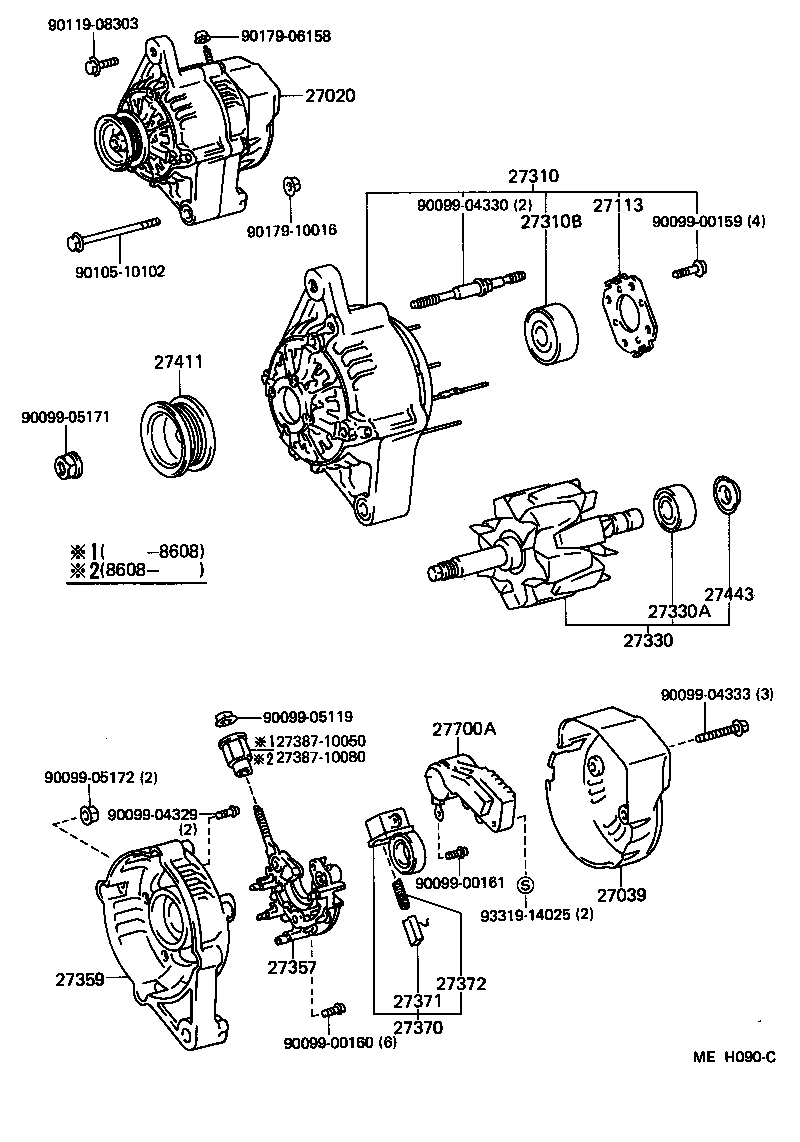

(8602- )

Click highlighted areas on diagram

12V 45A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738710050 2738710080 27411 27443 27700A 9009900159 9009900160 9009900161 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010510102 9011908303 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-10070

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27060-10050

1EL,2EL..EP7#

12V 40A

 1
27060-10051

1EL,2EL..EP7#..MTM

12V 40A,12V 40A

 1
27060-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27060-10030

1EL,2EL..EP7#

12V 45A,12V 45A

 1
27039 - COVER, ALTERNATOR REAR END
27039-10050

1EL,2EL..EP7#

12V 40A

 1
27039-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27039-10040

1EL,2EL..EP7#

12V 45A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-10050

1EL,2EL..EP7#

12V 40A

 1
27312-63020

1EL,2EL..EP7#

12V 45A

 1
27312-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27312-10050

1EL,2EL..EP7#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27310-10040

1EL,2EL..EP7#

12V 45A

 1
27310-10050

1EL,2EL..EP7#

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10155

1EL,2EL..EP7#

12V 40A,45A

 1
90099-10155

1EL,2EL..EP7#

12V 40A

 1
90099-10155

1EL,2EL..EP7#..MTM

12V 40A

 1
90099-10152

1EL,2EL..EP7#

12V 45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-10040

1EL,2EL..EP7#

12V 45A

 1
27330-10050

1EL,2EL..EP7#

12V 40A

 1
27330-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

1EL,2EL..EP7#

12V 40A,45A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-10050

1EL,2EL..EP7#

12V 40A

 1
27357-10040

1EL,2EL..EP7#

12V 45A

 1
27357-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-10040

1EL,2EL..EP7#

12V 45A

 1
27359-10050

1EL,2EL..EP7#

12V 40A

 1
27359-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

1EL,2EL..EP7#

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1EL,2EL..EP7#

12V 40A,45A

 2
27411 - PULLEY, ALTERNATOR
27411-10050

1EL,2EL..EP7#

12V 40A

 1
27411-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27411-10040

1EL,2EL..EP7#

12V 45A

 1
27411-10051

1EL,2EL..EP7#..MTM

12V 40A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1EL,2EL..EP7#

12V 40A,45A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10050

1EL,2EL..EP7#..MTM

12V 40A

 1
27700-63021

1EL,2EL..EP7#

12V 45A

 1
27700-10050

1EL,2EL..EP7#

12V 40A

 1
Common parts
27387-10050
27387-10080
90099-00159
90099-00160
90099-00161
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90105-10102
90119-08303
90179-06158
90179-10016
93319-14025
