EP70L-PHMNS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
1EL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

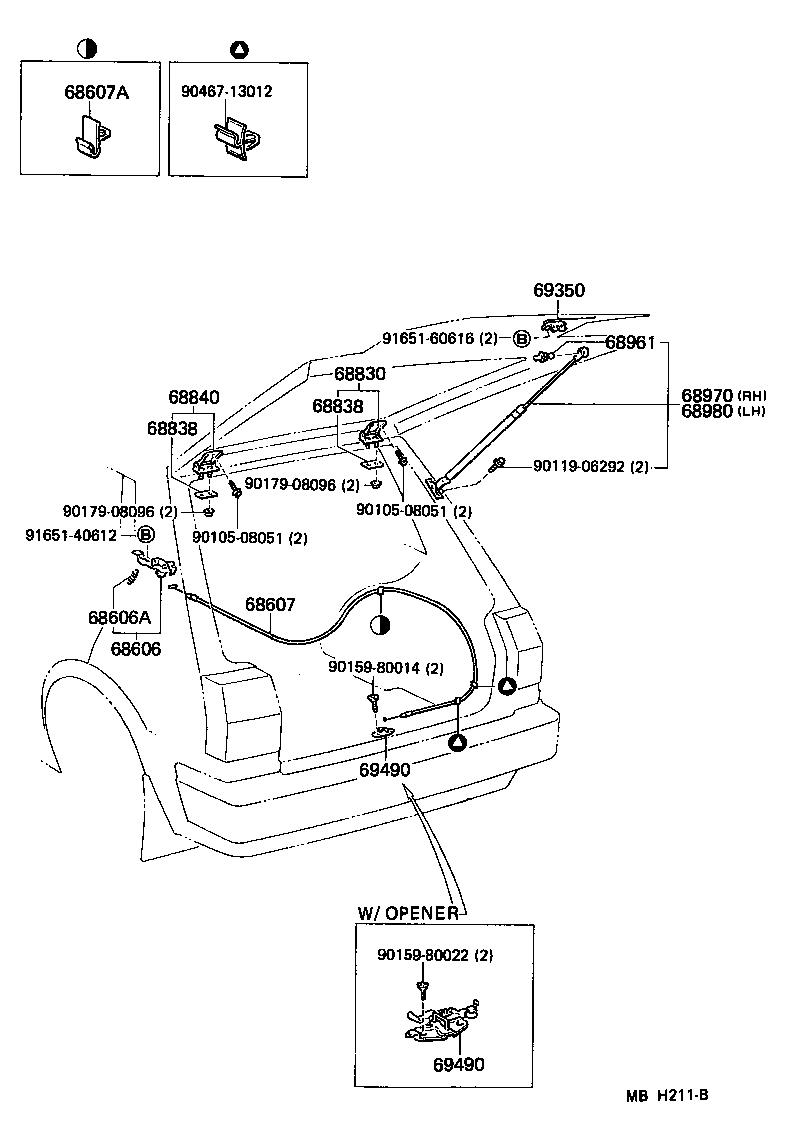

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-10070 |
EP7#..LHD |
1 | ||
| 64606-12050 |
EP7#..LHD W/FUEL LID OPENER |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EP7# |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-10080 |
EP7#..LHD |
1 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP7# |
1 | ||
| 69749-30020 |
EP7# |
1 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-10020 |
EP7# |
1 | ||
| 68801-10021 |
EP7# |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-10011 |
EP7# |
2 | ||
| 68838-10010 |
EP7# |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-10011 |
EP7# |
2 | ||
| 68838-10010 |
EP7# |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-10020 |
EP7# |
1 | ||
| 68801-10021 |
EP7# |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-10030 |
EP7# |
2 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19525 |
EP7# |
1 | ||
| 68950-19526 |
EP7# |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-19256 |
EP7# |
1 | ||
| 68960-19255 |
EP7# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-10060 |
EP7# |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-10040 |
EP7# |
1 | ||
| 69430-10051 |
EP7# W/OPENER |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-10040 |
EP7# |
1 | ||
| 69430-10051 |
EP7# W/OPENER |
1 | ||
| Common parts | ||||
| 90105-08051 | ||||
| 90119-06292 | ||||
| 90159-80014 | ||||
| 90159-80022 | ||||
| 90179-08096 | ||||
| 90467-13012 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
