EP70L-PHMNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

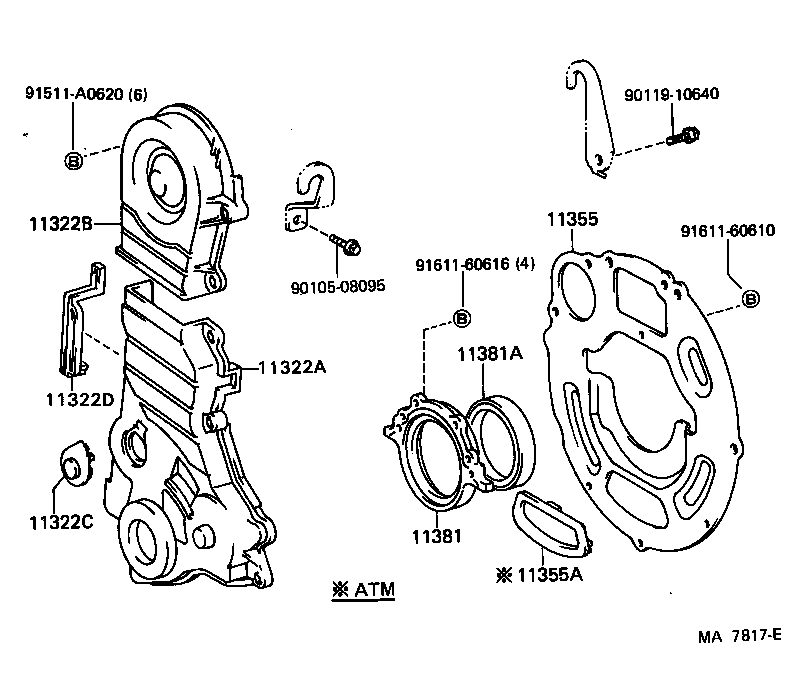

Click highlighted areas on diagram

diagram 11322A 11322B 11322C 11322D 11355 11355A 11381 11381A 9010508095 9011910640 91511A0620 9161160610 9161160616
Part # Description Qty Price
11322A - COVER, TIMING BELT, NO.1
11302-10020

1EL..EP70

 1
11302-10021

1EL..EP70

 1
11322B - COVER, TIMING BELT, NO.2
11303-10020

1EL,2EL..EP7#

 1
11303-10022

1EL,2EL..EP7#

 1
11303-10021

1EL,2EL..EP7#

 1
11322C - COVER, TIMING BELT, NO.3
11323-10010

1EL,2EL..EP7#

 1
11323-10011

1EL,2EL..EP7#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-10020

1EL..EP70

 1
11355 - PLATE, REAR END
11355-10010

1EL,2EL..EP7#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10020

1EL,2EL..EP7#

 1
11381-10010

1EL,2EL..EP7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

1EL,2EL..EP7#

 1
Common parts
90105-08095
90119-10640
91511-A0620
91611-60610
91611-60616
