EP70L-PHKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

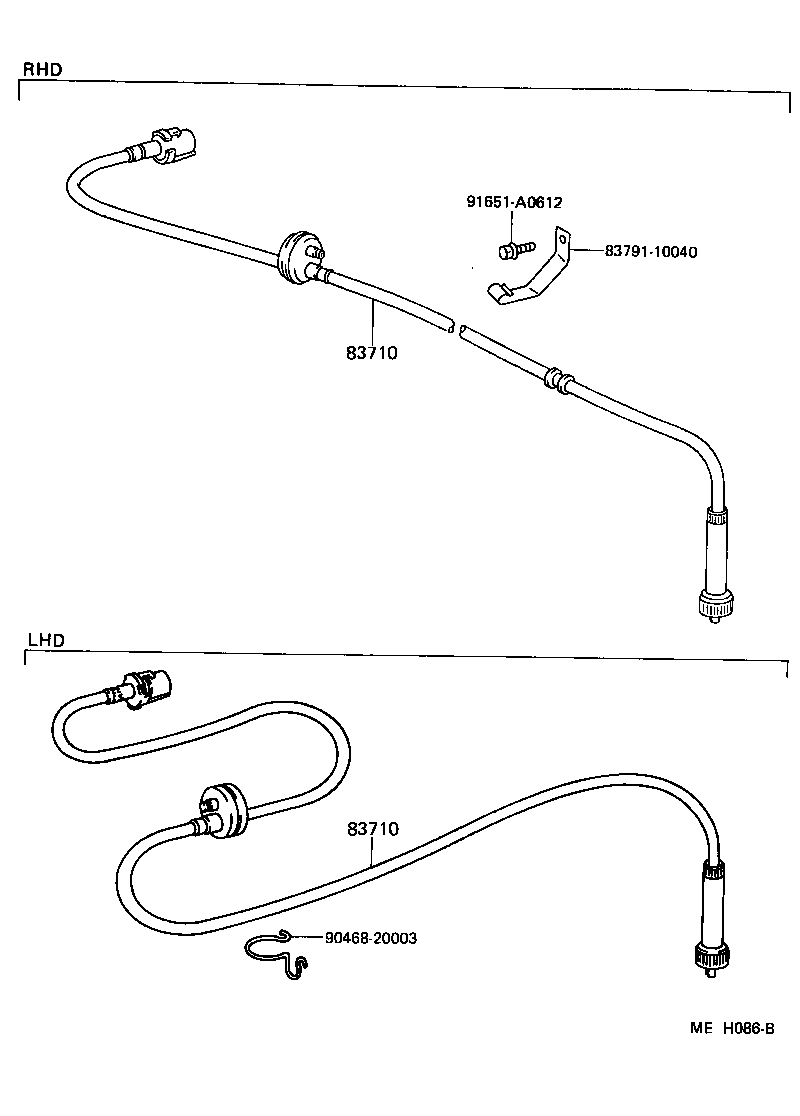

ILLUST NO. 2 OF 2(8410- )

Click highlighted areas on diagram

diagram 83710 83710 8379110040 9046820003 91651A0612
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-10250

EP7#..LHD..MTM

 1
83710-10251

EP7#..LHD..MTM

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-10250

EP7#..LHD..MTM

 1
83710-10251

EP7#..LHD..MTM

 1
Common parts
83791-10040
90468-20003
91651-A0612

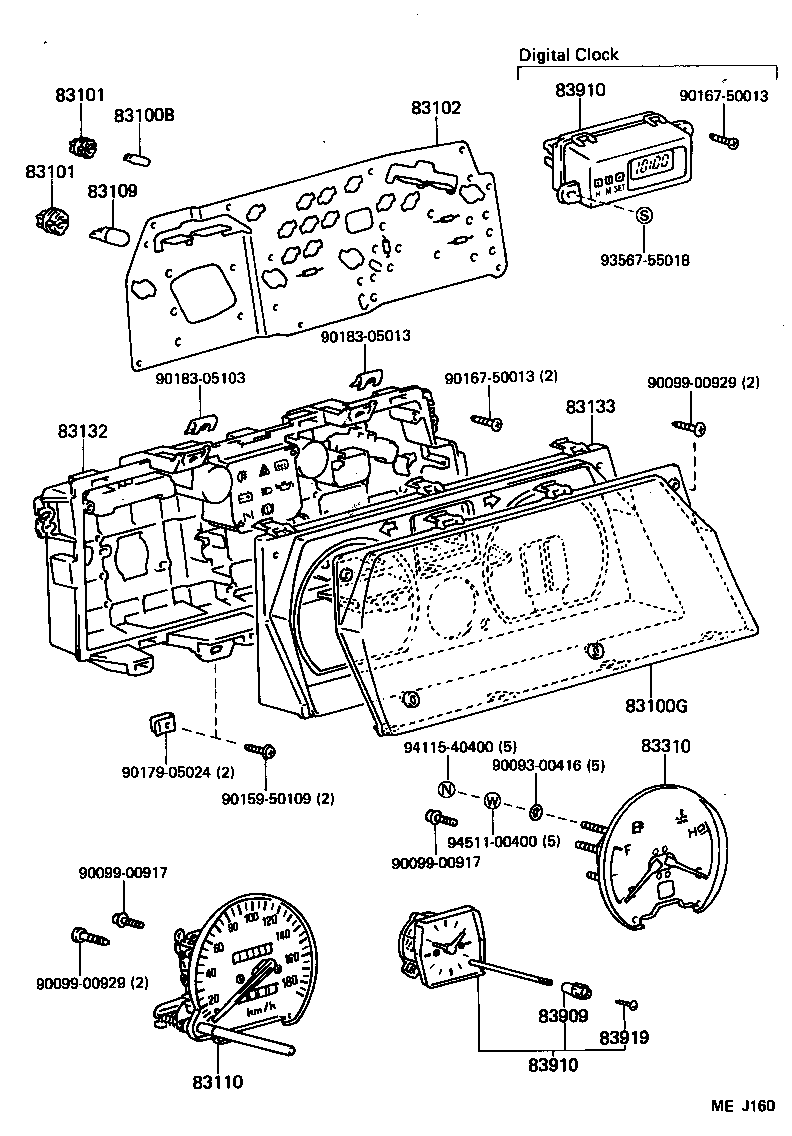

ILLUST NO. 1 OF 2(8612- )

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83109 83110 83132 83133 83310 83909 83910 83910 83919 9009300416 9009900917 9009900917 9009900929 9009900929 9015950109 9016750013 9016750013 9017905024 9018305013 9018305103 9356755018 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP7#

12V 1.2W W/O SOCKET,12V 1.4W

 9
99132-12034

EP7#

12V 3.4W,12V 3.4W

 8
83100G - GLASS, COMBINATION METER
83138-10390

EP7#

W/TRIP COUNTER

 1
83138-10030

EP71;EP70..LHD

W/TRIP COUNTER

 1
83138-10090

EP70,76

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-10790

EP7#

 1
83247-1C570

EP70..LHD

KM,W/ANALOG CLOCK,*ME

 1
83247-1C510

EP7#

KM

 1
83247-1C530

EP7#

MILE/KM

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83110 - SPEEDOMETER ASSY
83110-1C210

EP70,71..XL;EP70..LHD..STD

KM,W/TRIP COUNTER

 1
83110-1C240

EP70,76

MILE/KM

 1
83110-1C200

EP70,76

KM

 1
83110-1C430

EP7#

MILE/KM

 1
83110-1C410

EP7#

KM

 1
83132 - CASE, COMBINATION METER
83132-10550

EP7#

 1
83132-10730

EP7#

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10650

EP7#

 1
83133-10670

EP70..LHD

W/TRIP COUNTER

 1
83133-10730

EP7#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP7#

 1
83243-10230

EP7#

 1
83243-10370

EP70..LHD

*ME

 1
Common parts
90093-00416
90099-00917
90099-00929
90159-50109
90167-50013
90179-05024
90183-05013
90183-05103
93567-55018
94115-40400
94511-00400

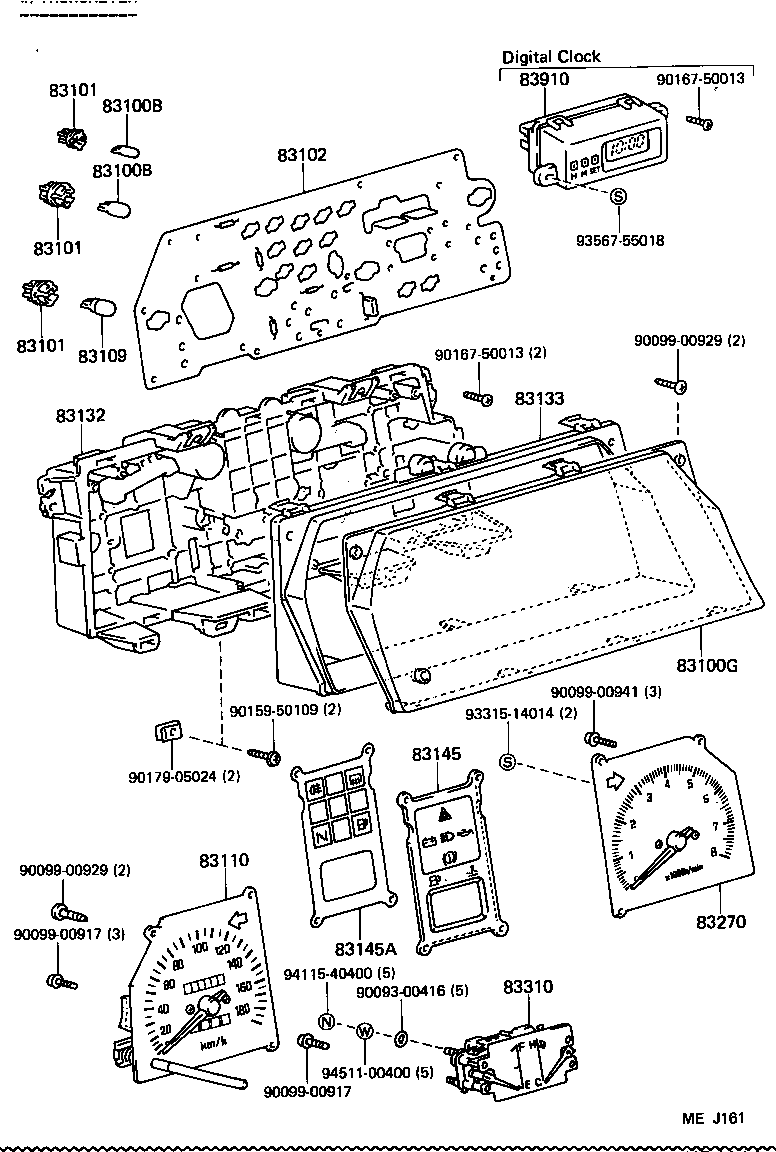

ILLUST NO. 1 OF 2(8612- )

Click highlighted areas on diagram

W/TACHOMETER

diagram 83100B 83100B 83100G 83101 83101 83101 83102 83109 83110 83132 83133 83145 83145A 83270 83310 83910 9009300416 9009900917 9009900917 9009900929 9009900929 9009900941 9015950109 9016750013 9016750013 9017905024 9331514014 9356755018 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP7#

12V 1.2W W/O SOCKET,12V 1.4W

 9
99132-12034

EP7#

12V 3.4W,12V 3.4W

 8
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP7#

12V 1.2W W/O SOCKET,12V 1.4W

 9
99132-12034

EP7#

12V 3.4W,12V 3.4W

 8
83100G - GLASS, COMBINATION METER
83138-10390

EP7#

W/TRIP COUNTER

 1
83138-10030

EP71;EP70..LHD

W/TRIP COUNTER

 1
83138-10090

EP70,76

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-10790

EP7#

 1
83247-1C570

EP70..LHD

KM,W/ANALOG CLOCK,*ME

 1
83247-1C510

EP7#

KM

 1
83247-1C530

EP7#

MILE/KM

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83110 - SPEEDOMETER ASSY
83110-1C210

EP70,71..XL;EP70..LHD..STD

KM,W/TRIP COUNTER

 1
83110-1C240

EP70,76

MILE/KM

 1
83110-1C200

EP70,76

KM

 1
83110-1C430

EP7#

MILE/KM

 1
83110-1C410

EP7#

KM

 1
83132 - CASE, COMBINATION METER
83132-10550

EP7#

 1
83132-10730

EP7#

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10650

EP7#

 1
83133-10670

EP70..LHD

W/TRIP COUNTER

 1
83133-10730

EP7#

 1
83145A - LENS, METER, NO.2
83145-10430

EP70,71

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP7#

 1
83243-10230

EP7#

 1
83243-10370

EP70..LHD

*ME

 1
Common parts
90093-00416
90099-00917
90099-00929
90099-00941
90159-50109
90167-50013
90179-05024
93315-14014
93567-55018
94115-40400
94511-00400

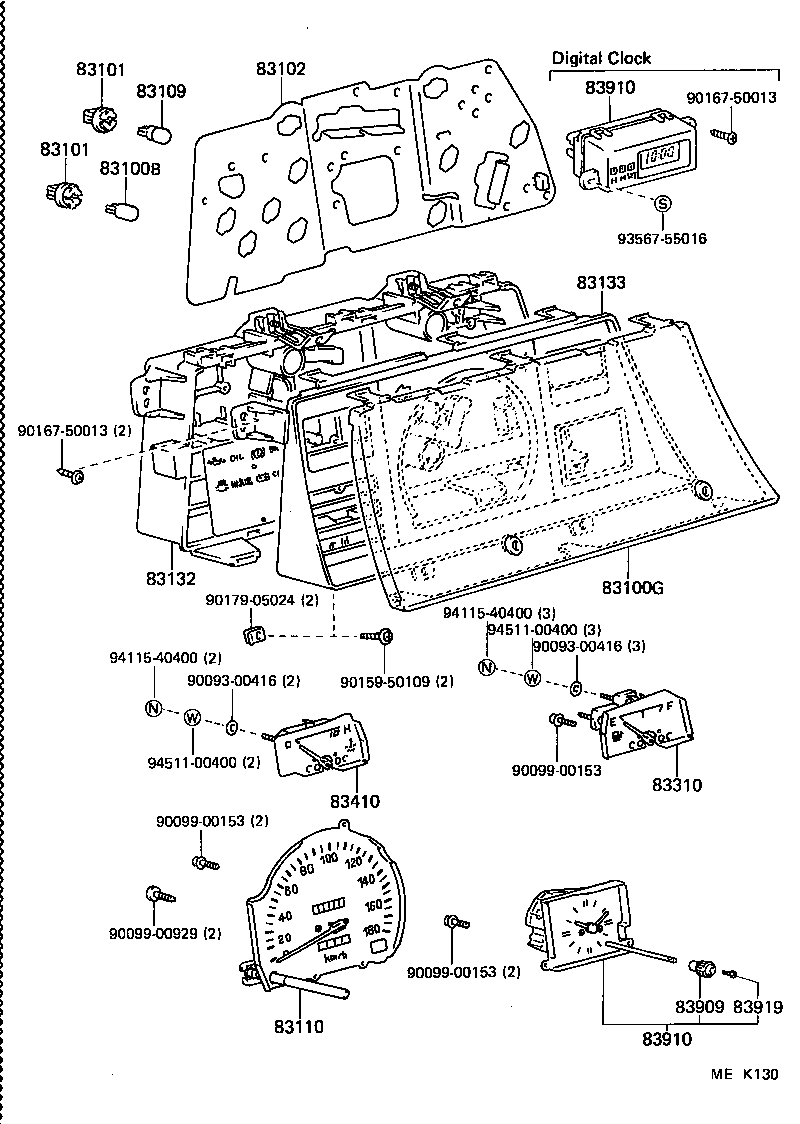

ILLUST NO. 1 OF 2(8410-8612)

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83109 83110 83132 83133 83310 83410 83909 83910 83910 83919 9009300416 9009300416 9009900153 9009900153 9009900153 9009900929 9015950109 9016750013 9016750013 9017905024 9356755016 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP7#

12V 1.2W W/O SOCKET,12V 1.4W

 9
99132-12034

EP7#

12V 3.4W,12V 3.4W

 8
83100G - GLASS, COMBINATION METER
83138-10390

EP7#

W/TRIP COUNTER

 1
83138-10030

EP71;EP70..LHD

W/TRIP COUNTER

 1
83138-10090

EP70,76

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-10790

EP7#

 1
83247-1C570

EP70..LHD

KM,W/ANALOG CLOCK,*ME

 1
83247-1C510

EP7#

KM

 1
83247-1C530

EP7#

MILE/KM

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83110 - SPEEDOMETER ASSY
83110-1C210

EP70,71..XL;EP70..LHD..STD

KM,W/TRIP COUNTER

 1
83110-1C240

EP70,76

MILE/KM

 1
83110-1C200

EP70,76

KM

 1
83110-1C430

EP7#

MILE/KM

 1
83110-1C410

EP7#

KM

 1
83132 - CASE, COMBINATION METER
83132-10550

EP7#

 1
83132-10730

EP7#

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10650

EP7#

 1
83133-10670

EP70..LHD

W/TRIP COUNTER

 1
83133-10730

EP7#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP7#

 1
83243-10230

EP7#

 1
83243-10370

EP70..LHD

*ME

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-10150

EP7#

 1
83244-10170

EP70,71..LHD..MTM

*ME

 1
Common parts
90093-00416
90099-00153
90099-00929
90159-50109
90167-50013
90179-05024
93567-55016
94115-40400
94511-00400

ILLUST NO. 1 OF 2(8410-8612)

Click highlighted areas on diagram

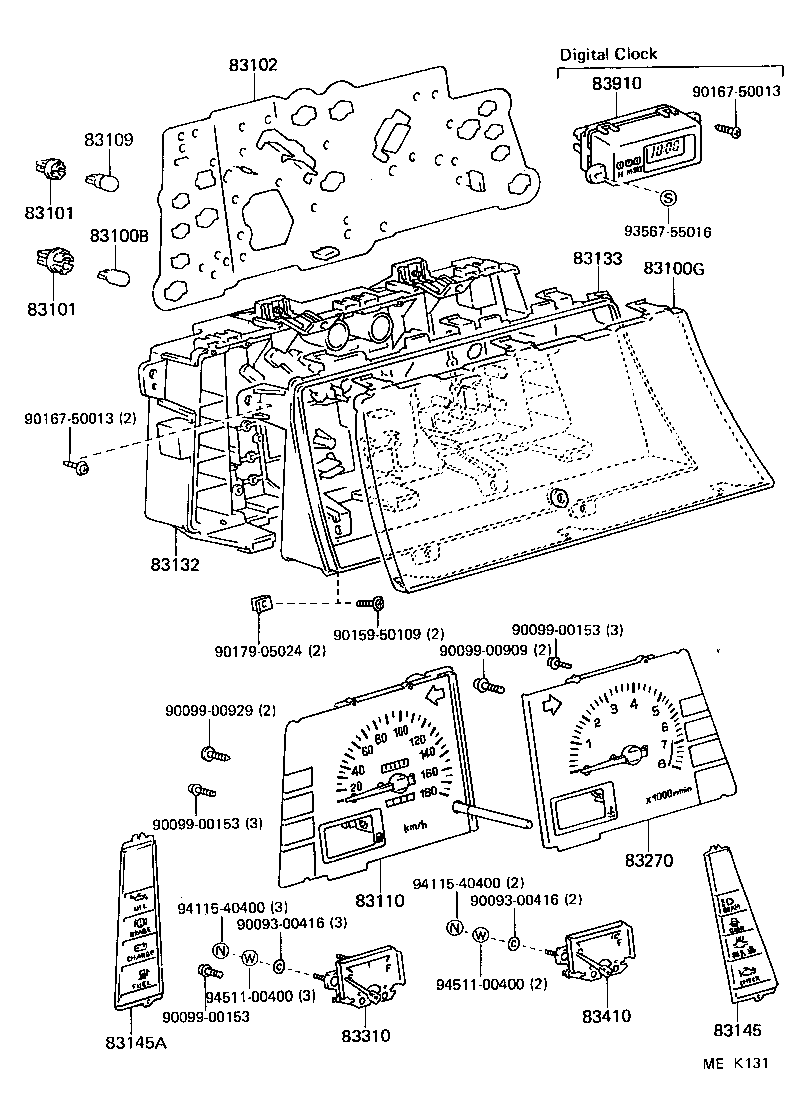

W/TACHOMETER

diagram 83100B 83100G 83101 83101 83102 83109 83110 83132 83133 83145 83145A 83270 83310 83410 83910 9009300416 9009300416 9009900153 9009900153 9009900153 9009900909 9009900929 9015950109 9016750013 9016750013 9017905024 9356755016 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP7#

12V 1.2W W/O SOCKET,12V 1.4W

 9
99132-12034

EP7#

12V 3.4W,12V 3.4W

 8
83100G - GLASS, COMBINATION METER
83138-10390

EP7#

W/TRIP COUNTER

 1
83138-10030

EP71;EP70..LHD

W/TRIP COUNTER

 1
83138-10090

EP70,76

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP7#

12V 3.4W

 10
83101-14040

EP7#

12V 1.4W

 9
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-10790

EP7#

 1
83247-1C570

EP70..LHD

KM,W/ANALOG CLOCK,*ME

 1
83247-1C510

EP7#

KM

 1
83247-1C530

EP7#

MILE/KM

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83110 - SPEEDOMETER ASSY
83110-1C210

EP70,71..XL;EP70..LHD..STD

KM,W/TRIP COUNTER

 1
83110-1C240

EP70,76

MILE/KM

 1
83110-1C200

EP70,76

KM

 1
83110-1C430

EP7#

MILE/KM

 1
83110-1C410

EP7#

KM

 1
83132 - CASE, COMBINATION METER
83132-10550

EP7#

 1
83132-10730

EP7#

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10650

EP7#

 1
83133-10670

EP70..LHD

W/TRIP COUNTER

 1
83133-10730

EP7#

 1
83145A - LENS, METER, NO.2
83145-10430

EP70,71

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP7#

 1
83243-10230

EP7#

 1
83243-10370

EP70..LHD

*ME

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-10150

EP7#

 1
83244-10170

EP70,71..LHD..MTM

*ME

 1
Common parts
90093-00416
90099-00153
90099-00909
90099-00929
90159-50109
90167-50013
90179-05024
93567-55016
94115-40400
94511-00400
