EP70L-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

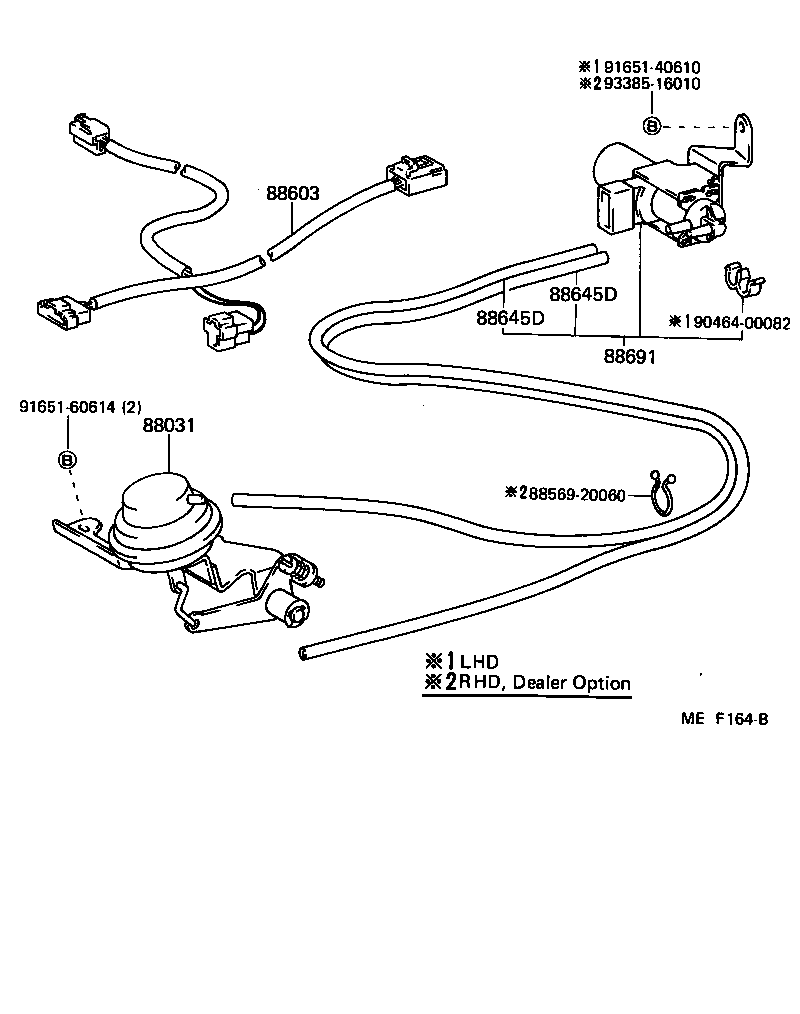

Click highlighted areas on diagram

diagram 88031 8856920060 88603 88645D 88645D 88691 9046400082 9165140610 9165160614 9338516010
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-10010

EP7#

 1
88645D - HOSE (FOR IDLE UP DEVICE)
90999-92002

EP7#..LHD

*H,L=240,MARK=#0

 1
95411-19930

EP7#..LHD

*H,L=280,MARK=#*

 1
95411-10030

EP7#..LHD

*H,L=240,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
90999-92002

EP7#..LHD

*H,L=240,MARK=#0

 1
95411-19930

EP7#..LHD

*H,L=280,MARK=#*

 1
95411-10030

EP7#..LHD

*H,L=240,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10200

EP7#..LHD

 1
Common parts
88569-20060
90464-00082
91651-40610
91651-60614
93385-16010
