EP70L-PGKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

Click highlighted areas on diagram

MAKER OPTION

diagram 88501 88510 88515 88539 8856910010 88605 88625 88630 88645G 88650 88688A 9017906115 9048024008 9048026004 9166640618 9351015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10091

EP7#..LHD

 1
88501-10090

EP7#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-10150

EP7#..LHD

MAKER OPTION,W/HEATER

 1
88510-10190

EP7#..LHD

DEALER OPTION

 1
88510-10170

EP7#..LHD

MAKER OPTION,W/*BV

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

EP7#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12080

EP7#

MAKER OPTION

 1
88539-10080

EP7#

DEALER OPTION

 1
88539-12080

EP7#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10240

EP7#

W/BOOST VENTILATOR

 1
88605-10230

EP7#

W/HEATER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-10020

EP7#

 1
88630 - RELAY ASSY, COOLER
88630-10040

EP7#

 1
88645G - SWITCH, PRESSURE
88645-12020

EP7#

 1
88645-10020

EP7#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10060

EP7#

W/*BV

 1
88650-10140

EP70

W/HEATER

 1
88650-10050

EP7#

W/HEATER

 1
88650-10150

EP70

W/*BV

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10060

EP7#

 1
Common parts
88569-10010
90179-06115
90480-24008
90480-26004
91666-40618
93510-15012

(8410- )

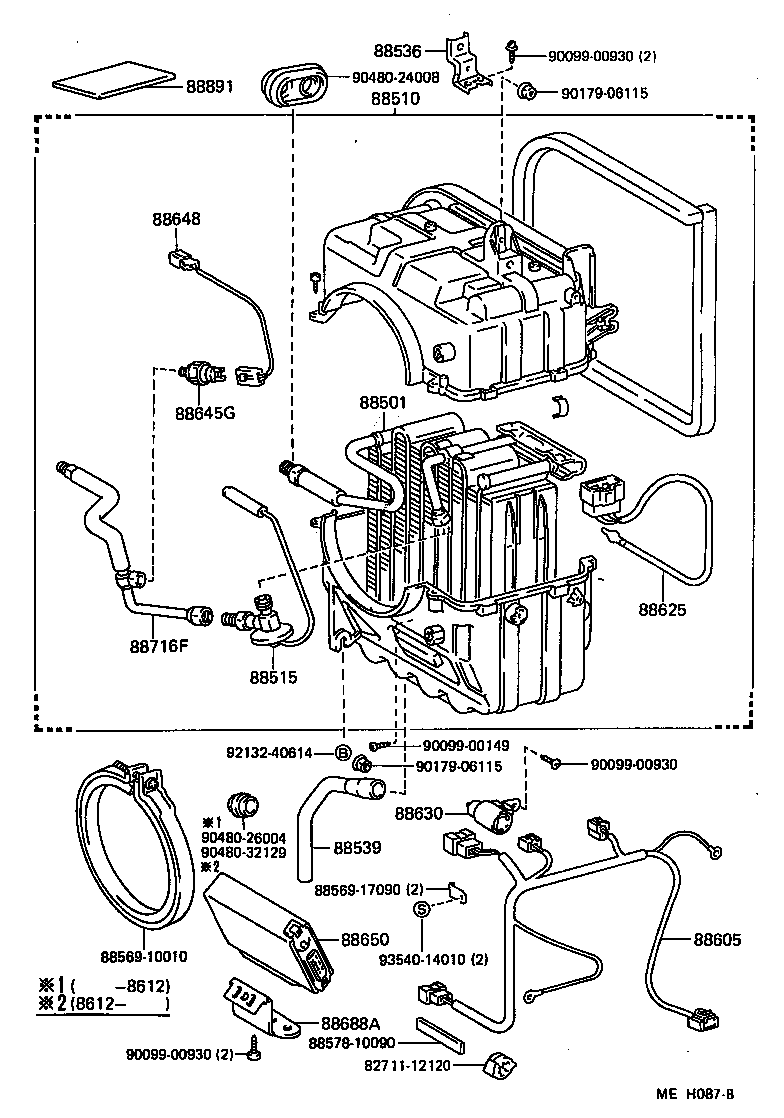

Click highlighted areas on diagram

DEALER OPTION

diagram 8271112120 88501 88510 88515 88536 88539 8856910010 8856917090 8857810090 88605 88625 88630 88645G 88648 88650 88688A 88716F 88891 9009900149 9009900930 9009900930 9009900930 9017906115 9017906115 9048024008 9048026004 9048032129 9213240614 9354014010
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10091

EP7#..LHD

 1
88501-10090

EP7#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-10150

EP7#..LHD

MAKER OPTION,W/HEATER

 1
88510-10190

EP7#..LHD

DEALER OPTION

 1
88510-10170

EP7#..LHD

MAKER OPTION,W/*BV

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

EP7#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12080

EP7#

MAKER OPTION

 1
88539-10080

EP7#

DEALER OPTION

 1
88539-12080

EP7#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10240

EP7#

W/BOOST VENTILATOR

 1
88605-10230

EP7#

W/HEATER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-10020

EP7#

 1
88630 - RELAY ASSY, COOLER
88630-10040

EP7#

 1
88645G - SWITCH, PRESSURE
88645-12020

EP7#

 1
88645-10020

EP7#

 1
88648 - WIRING, COOLER, NO.1
88648-10230

EP7#..LHD

DEALER OPTION

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10060

EP7#

W/*BV

 1
88650-10140

EP70

W/HEATER

 1
88650-10050

EP7#

W/HEATER

 1
88650-10150

EP70

W/*BV

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10060

EP7#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-10430

EP7#..LHD

DEALER OPTION

 1
88891 - PACKING (FOR COOLER)
88578-12170

EP70,71..LHD

DEALER OPTION

 2
88578-12170

EP7#..LHD

DEALER OPTION

 2
88578-12160

EP7#..LHD

DEALER OPTION

 2
88578-12160

EP70,71..LHD

DEALER OPTION

 2
Common parts
82711-12120
88569-10010
88569-17090
88578-10090
90099-00149
90099-00930
90179-06115
90480-24008
90480-26004
90480-32129
92132-40614
93540-14010
