EP70L-PGKNS (1984)
Toyota Starlet
Production
Oct 1984
-
Aug 1988
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

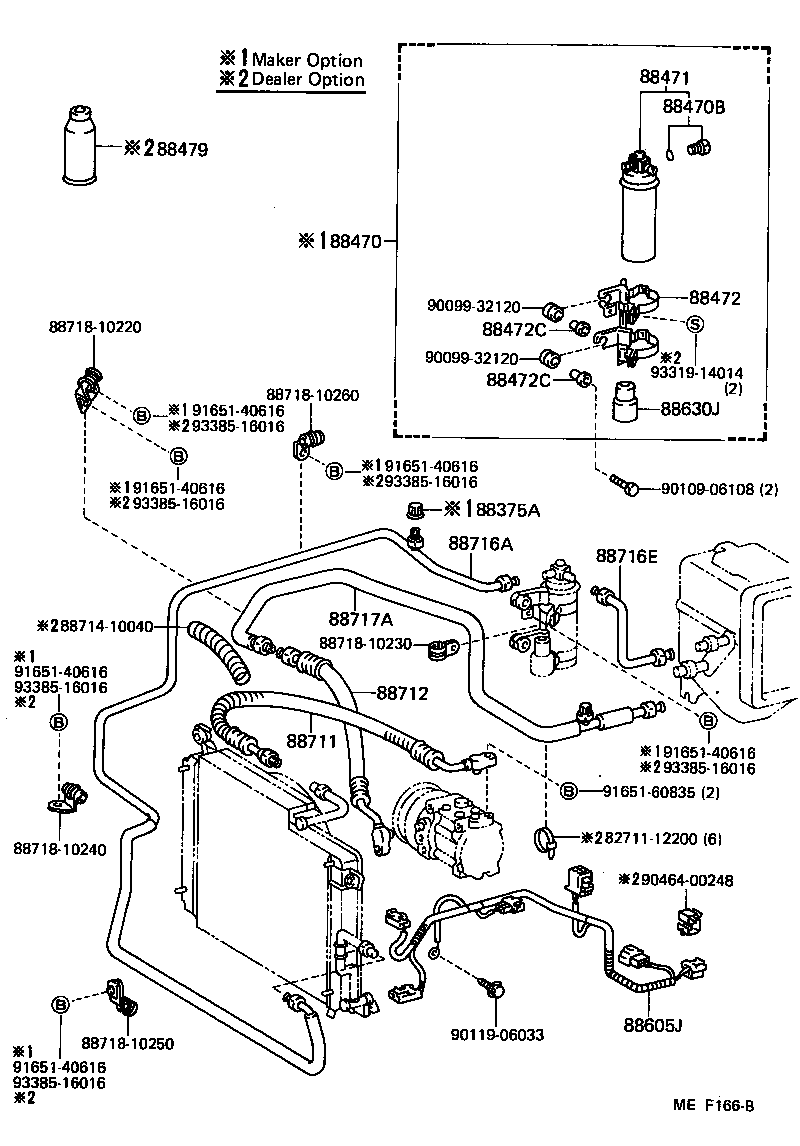

ILLUST NO. 1 OF 2(8410-8612)LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
EP7# MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-10020 |
EP7#..LHD MAKER OPTION |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
EP7# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16010 |
EP7#..LHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10140 |
EP7#..LHD |
1 | ||
| 88472C - INSULATOR, RECEIVER BRACKET | ||||
| 88467-14070 |
EP7# |
2 | ||
| 88472C - INSULATOR, RECEIVER BRACKET | ||||
| 88467-14070 |
EP7# |
2 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-10220 |
EP7#..LHD |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-10030 |
EP7# MAKER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10100 |
EP7#..LHD DEALER OPTION |
1 | ||
| 88711-10090 |
EP7# MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10110 |
EP7#..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10410 |
EP7#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10401 |
EP7#..LHD |
1 | ||
| 88716-10400 |
EP7#..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-10090 |
EP7#..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88714-10040 | ||||
| 88718-10220 | ||||
| 88718-10230 | ||||
| 88718-10240 | ||||
| 88718-10250 | ||||
| 88718-10260 | ||||
| 90099-32120 | ||||
| 90109-06108 | ||||
| 90119-06033 | ||||
| 90464-00248 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| 93319-14014 | ||||
| 93385-16016 | ||||

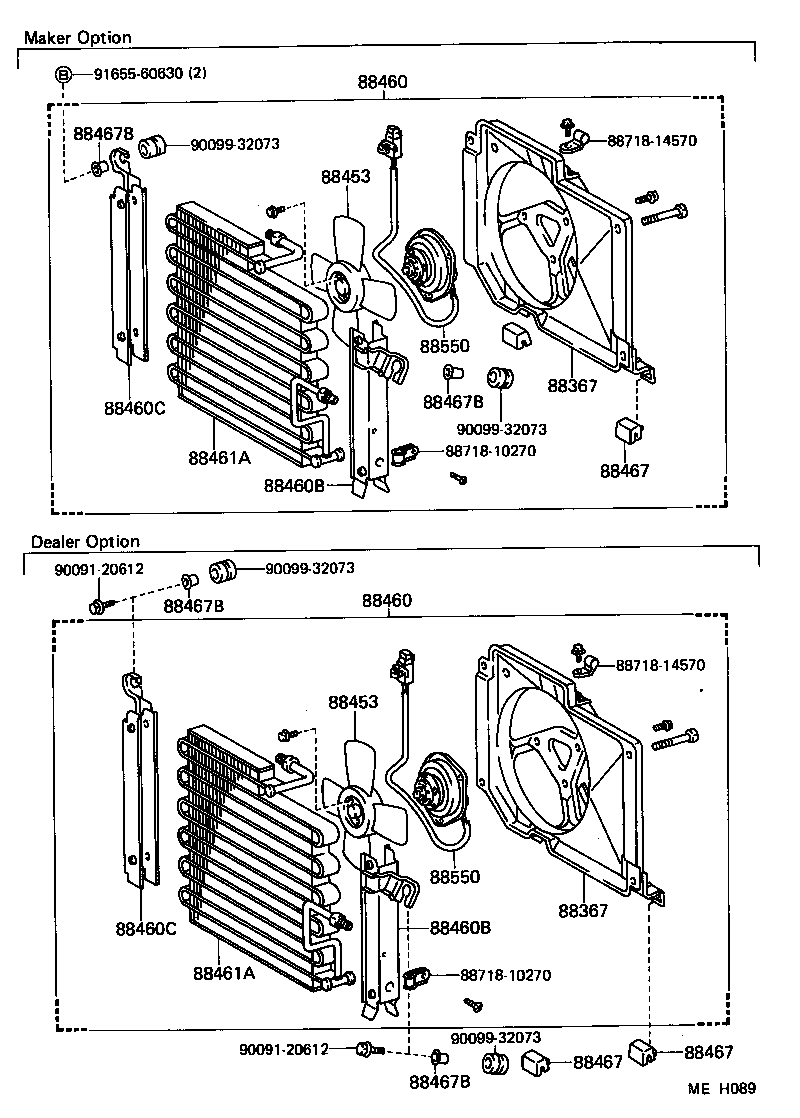

ILLUST NO. 2 OF 2(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10050 |
EP7# |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10050 |
EP7# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
EP7# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
EP7# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10100 |
EP7# MAKER OPTION |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10100 |
EP7# MAKER OPTION |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10080 |
EP7# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10080 |
EP7# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10070 |
EP7# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10070 |
EP7# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88463-10050 |
EP7# |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88463-10050 |
EP7# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-10010 |
EP7# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-10010 |
EP7# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-10010 |
EP7# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88469-22010 |
EP7# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88469-22010 |
EP7# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88469-22010 |
EP7# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88469-22010 |
EP7# |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10040 |
EP7# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10040 |
EP7# |
1 | ||
| Common parts | ||||
| 88718-10270 | ||||
| 88718-14570 | ||||
| 90091-20612 | ||||
| 90099-32073 | ||||
| 91655-60630 | ||||

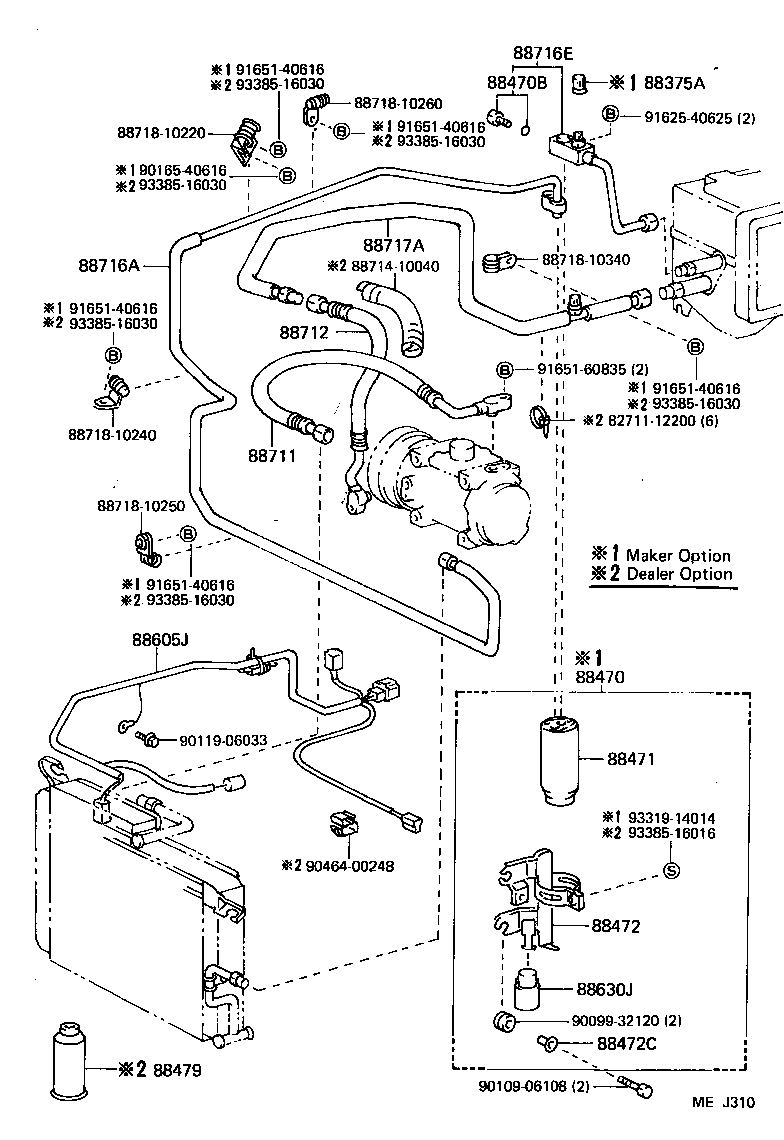

ILLUST NO. 1 OF 2(8612- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
EP7# MAKER OPTION |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-10020 |
EP7#..LHD MAKER OPTION |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
EP7# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16010 |
EP7#..LHD |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10140 |
EP7#..LHD |
1 | ||
| 88472C - INSULATOR, RECEIVER BRACKET | ||||
| 88467-14070 |
EP7# |
2 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-10220 |
EP7#..LHD |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-10030 |
EP7# MAKER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10100 |
EP7#..LHD DEALER OPTION |
1 | ||
| 88711-10090 |
EP7# MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10110 |
EP7#..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10410 |
EP7#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10401 |
EP7#..LHD |
1 | ||
| 88716-10400 |
EP7#..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-10090 |
EP7#..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88714-10040 | ||||
| 88718-10220 | ||||
| 88718-10240 | ||||
| 88718-10250 | ||||
| 88718-10260 | ||||
| 88718-10340 | ||||
| 90099-32120 | ||||
| 90109-06108 | ||||
| 90119-06033 | ||||
| 90165-40616 | ||||
| 90464-00248 | ||||
| 91625-40625 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| 93319-14014 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
