EP70L-PGKNS (1984)
Toyota Starlet
Production
Oct 1984
-
Aug 1988
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

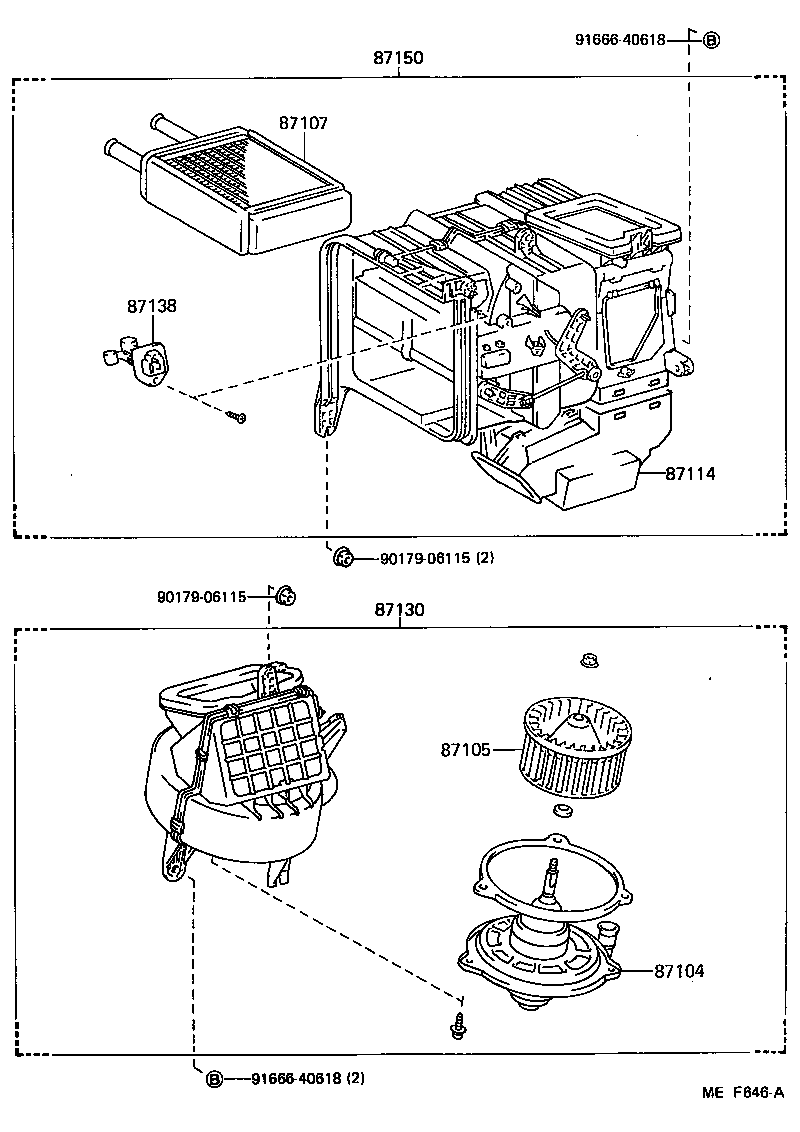

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87102 - CASE SUB-ASSY, RADIATOR | ||||
| 87102-10020 |
EP7#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-10110 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 87138-10120 |
EP7#..LHD |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-10060 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 88910-10080 |
EP7#..LHD |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91666-40618 | ||||
(8410- )

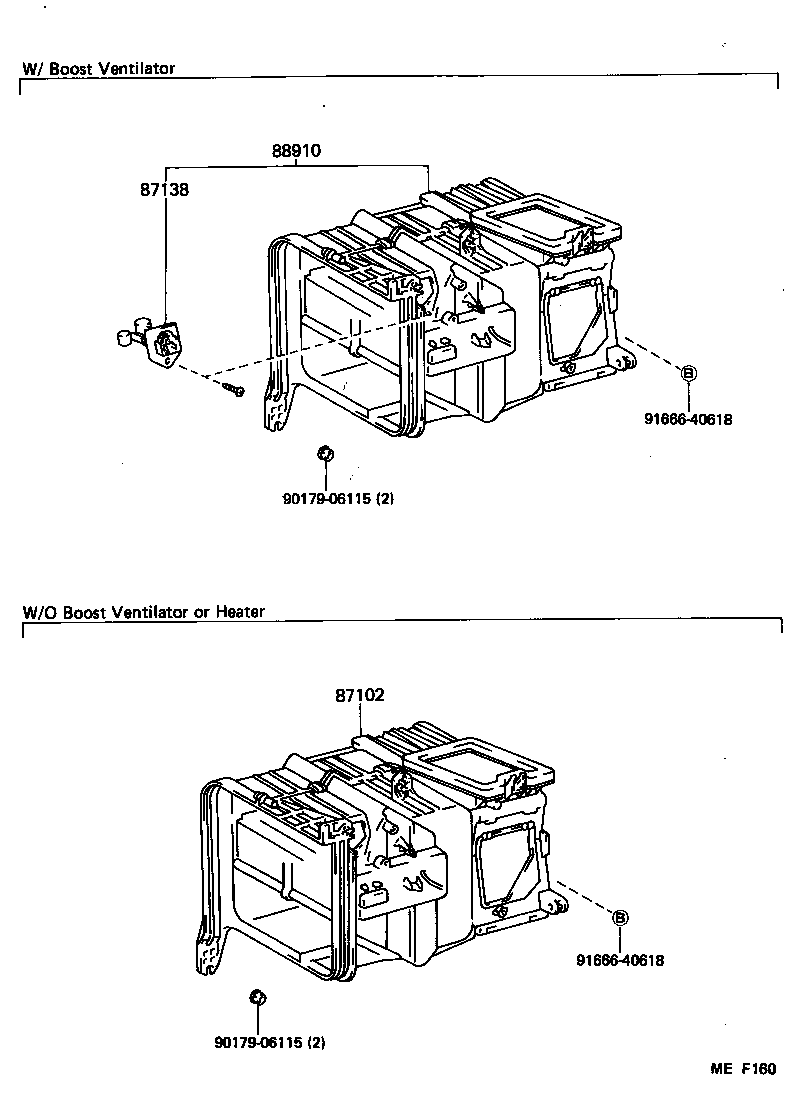

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-10170 |
EP7#..LHD |
1 | ||
| 87104-89110 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87134-30010 |
EP7#..LHD |
1 | ||
| 87105-14020 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-10200 |
EP7#..LHD |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-10030 |
EP7#..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-10130 |
EP7#..LHD |
1 | ||
| 87130-10140 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-10110 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| 87138-10120 |
EP7#..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-10150 |
EP7#..LHD |
1 | ||
| 87150-10180 |
EP7#..LHD W/AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91666-40618 | ||||
