EP70L-PGKNS (1984)
Toyota Starlet
Production
Oct 1984
-
Aug 1988
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

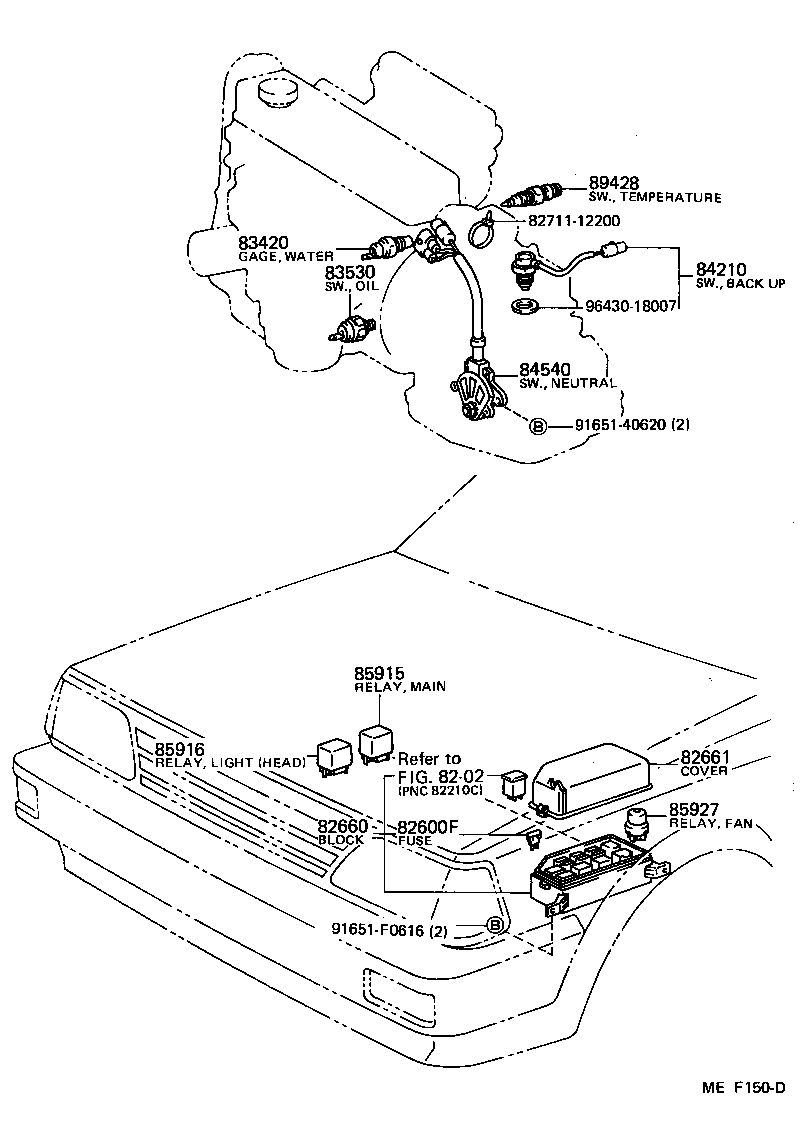

ILLUST NO. 1 OF 4(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EP7# 10A,10A |
33 | ||
| 90982-09003 |
EP7# 15A,15A |
33 | ||
| 90982-09004 |
EP7# 20A,YELLOW,20A |
33 | ||
| 90982-07011 |
EP7# 30A,GREEN,30A |
33 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
33 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-10020 |
EP7# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-10010 |
EP7# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
EP7# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
EP7#..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02006 |
EP7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
EP7# HEAD |
1 | ||
| 90987-01003 |
EP7# TAIL |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP7# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EP7# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 91651-40620 | ||||
| 91651-F0616 | ||||
| 96430-18007 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 4(8410-8612)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19715 |
EP7#..LHD |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-10060 |
EP70,71..XL |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
EP70,71..XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-10020 |
EP70,71..XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19385 |
EP7#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10590 |
EP70,71..LHD..XL W/INTERMITTENT WIPER |
1 | ||
| 84310-10580 |
EP7#..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80062 |
EP70,71..LHD..XL W/INTERMITTENT WIPER |
1 | ||
| 84652-80061 |
EP7#..LHD |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-10030 |
EP7# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10050 |
EP7#..LHD W/HEATER |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
EP7# W/HEATER |
2 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-10010 |
EP7# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7# 14V 1.4W,12V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP70,71..XL NO.1 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10080 |
EP7# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10100 |
EP7# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7# |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90463-15402 | ||||
| 90984-01013 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-15012 | ||||
| 93567-15012 | ||||

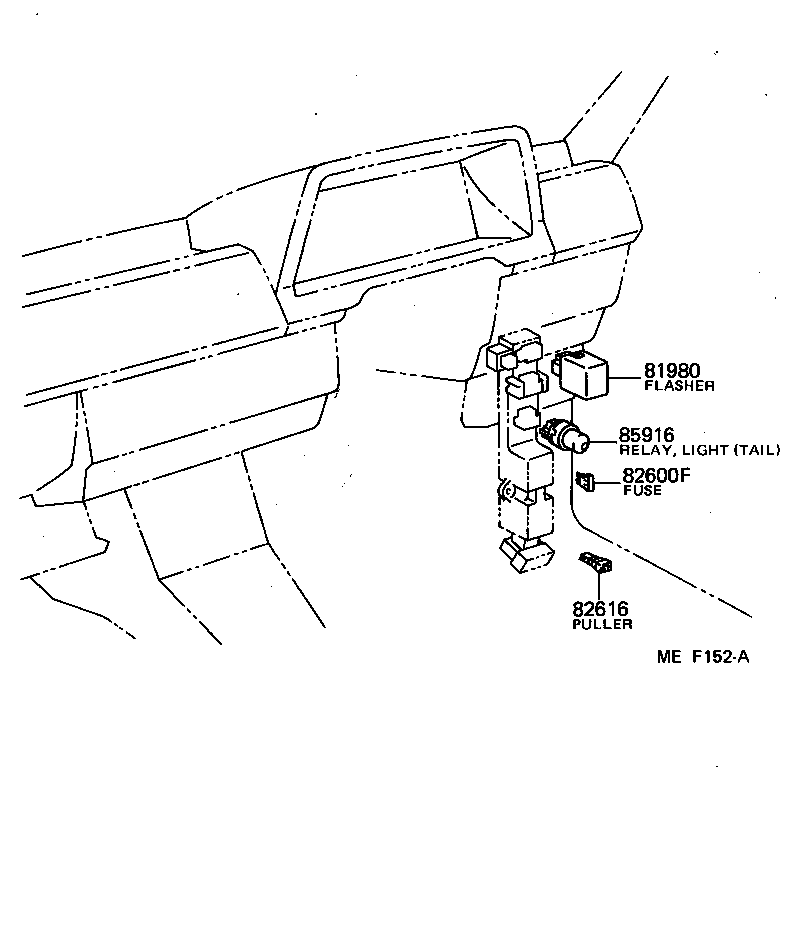

ILLUST NO. 3 OF 4(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
EP7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EP7# 10A,10A |
33 | ||
| 90982-09003 |
EP7# 15A,15A |
33 | ||
| 90982-09004 |
EP7# 20A,YELLOW,20A |
33 | ||
| 90982-07011 |
EP7# 30A,GREEN,30A |
33 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
33 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EP7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
EP7# HEAD |
1 | ||
| 90987-01003 |
EP7# TAIL |
1 | ||
ILLUST NO. 4 OF 4(8410- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19805 |
EP7# |
1 | ||
| 83320-19816 |
EP70,71..XL W/TACHOMETER |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
EP7# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
EP7# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
EP7# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10020 |
EP7# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
EP7# |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-1002008 |
EP70,71..XL IVORY,IVORY |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-40155 | ||||
| 90480-26043 | ||||
| 93249-24016 | ||||
| 93315-14012 | ||||
| 93560-14016 | ||||
| 94120-41000 | ||||
ILLUST NO. 2 OF 4(8612- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19715 |
EP7#..LHD |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-10060 |
EP70,71..XL |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
EP70,71..XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-10020 |
EP70,71..XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19385 |
EP7#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10590 |
EP70,71..LHD..XL W/INTERMITTENT WIPER |
1 | ||
| 84310-10580 |
EP7#..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80062 |
EP70,71..LHD..XL W/INTERMITTENT WIPER |
1 | ||
| 84652-80061 |
EP7#..LHD |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10050 |
EP7#..LHD W/HEATER |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
EP7# W/HEATER |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7# 14V 1.4W,12V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP70,71..XL NO.1 |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP70,71..XL NO.1 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10080 |
EP7# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10100 |
EP7# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90183-05094 | ||||
| 90984-01013 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-15012 | ||||
| 93567-15012 | ||||
