EP70L-PGKNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

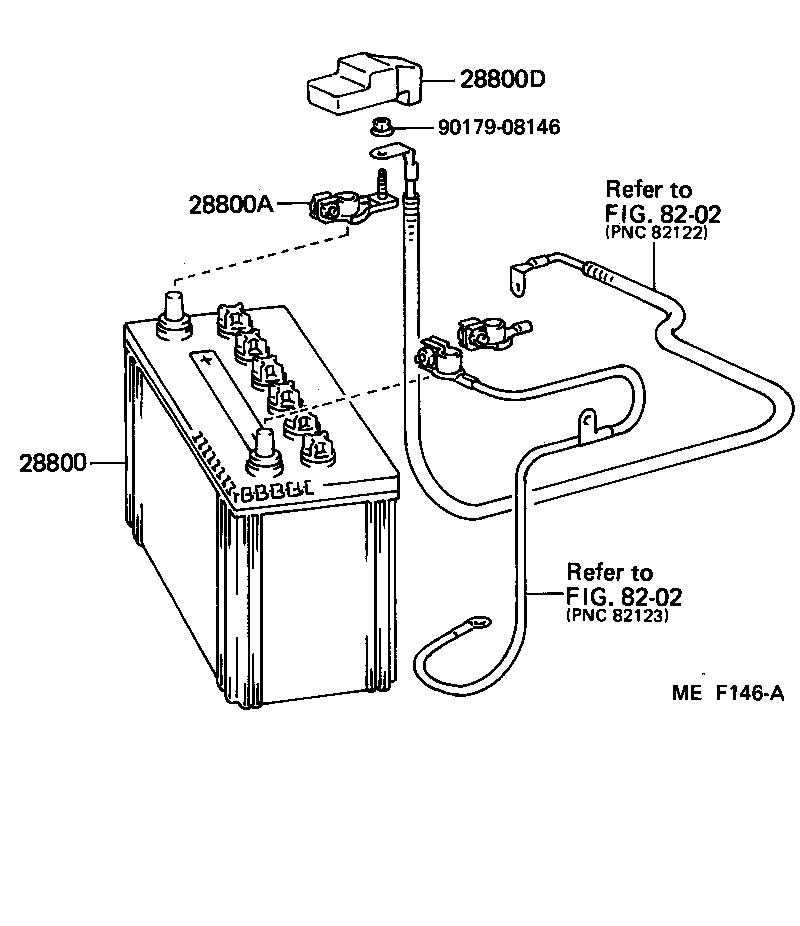

Click highlighted areas on diagram

diagram 28800 28800A 28800D 8202 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-13110

1EL,2EL..EP7#

28B19R(S),28B19R(S)(NS40S(S))

 1
28800-33071

1EL,2EL..EP7#

32C24R,32C24R(N40)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05029

1EL,2EL..EP7#

 1
90982-05023

1EL,2EL..EP7#

 1
90982-05027

1EL,2EL..EP70,71

INDONESIA SPEC

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

1EL,2EL..EP7#

 1
Common parts
90179-08146
Linked diagrams
8202
