EP70L-PGKNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

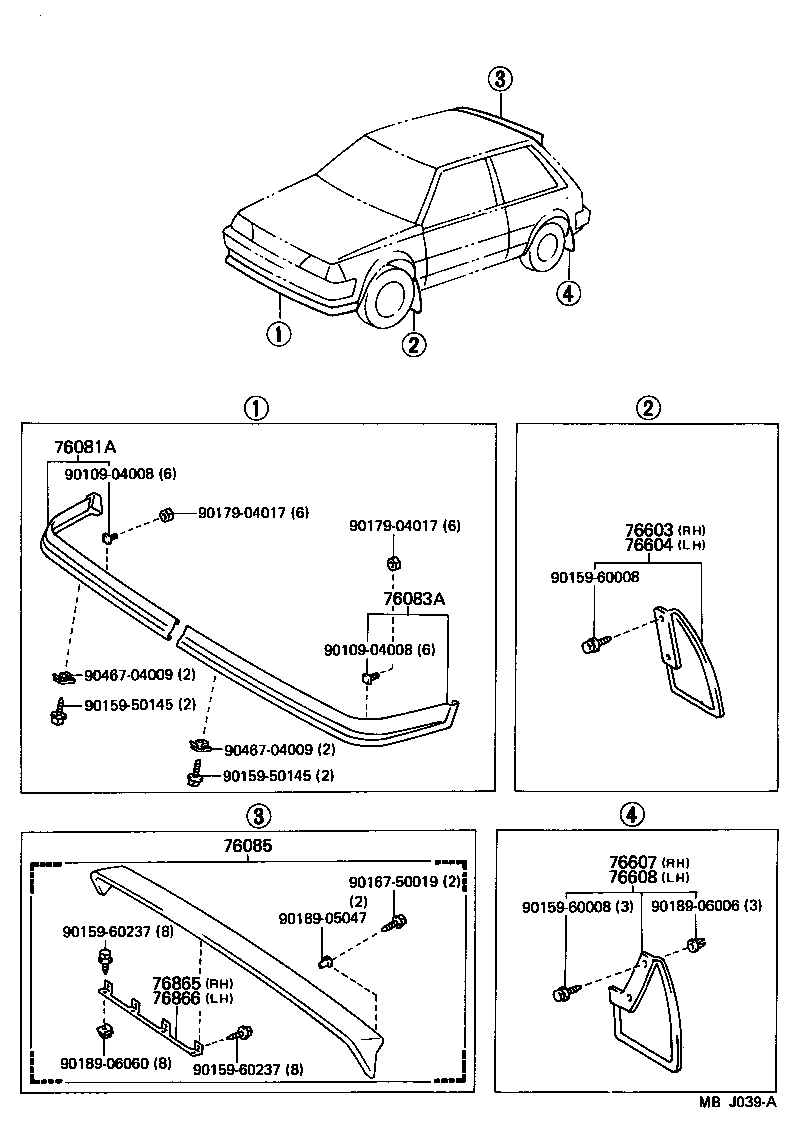

Click highlighted areas on diagram

diagram 76081A 76083A 76085 76603 76604 76607 76608 76865 76866 9010904008 9010904008 9015950145 9015950145 9015960008 9015960008 9015960237 9015960237 9016750019 9017904017 9017904017 9018905047 9018906006 9018906060 9046704009 9046704009
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19135

EP7#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19135

EP7#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19245

EP7#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19245

EP7#

 1
Common parts
90109-04008
90159-50145
90159-60008
90159-60237
90167-50019
90179-04017
90189-05047
90189-06006
90189-06060
90467-04009
