EP70L-PGKNS (1984)

Toyota Starlet

Production Oct 1984 - Aug 1988
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

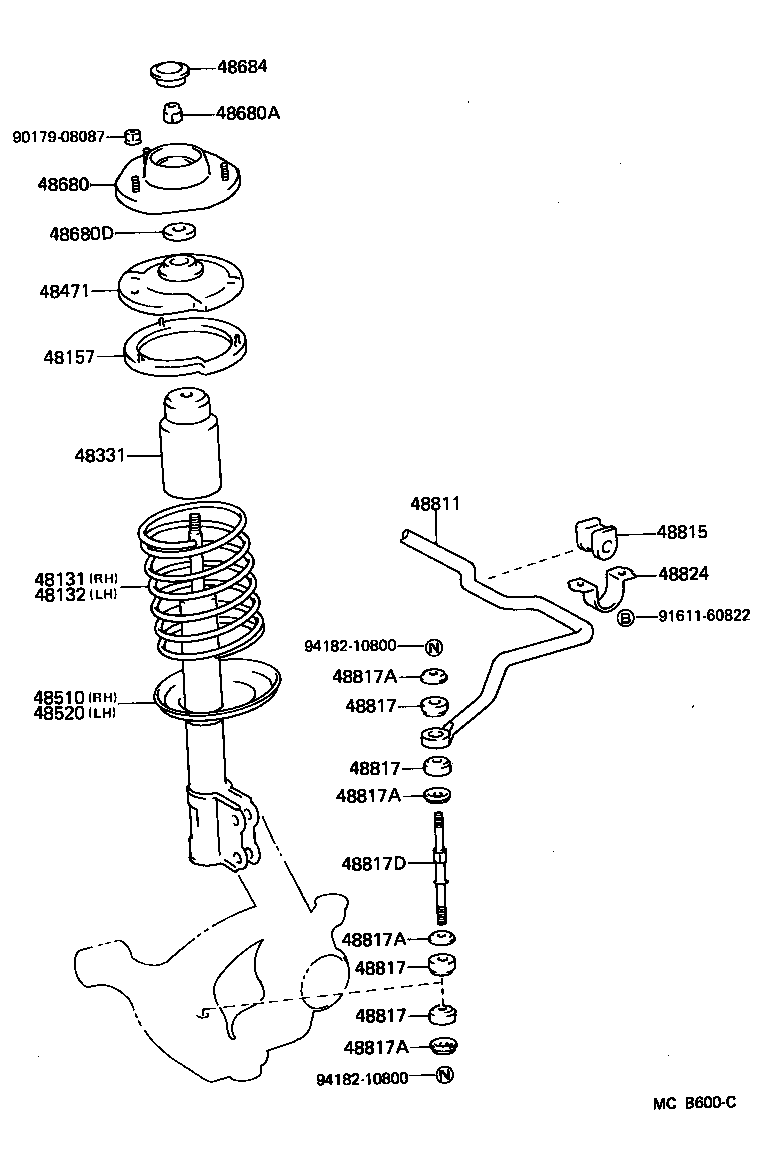

Click highlighted areas on diagram

diagram 48131 48132 48157 48331 48471 48510 48520 48680 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817D 48824 9017908087 9161160822 9418210800 9418210800
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-10220

EP7#..LHD..MTM

W/COOLER

 1
48131-10290

EP7#..LHD..MTM

*HRP 2 ORS (W/COOLER)

 1
48131-10270

EP7#..LHD

*HRP 1

 1
48131-10210

EP7#..LHD..MTM

 1
48131-10280

EP7#..LHD..MTM

*HRP 2 ORS;*HRP 1 ORA (W/COOLER)

 1
48132 - SPRING, FRONT COIL, LH
48131-10280

EP7#..LHD

*HRP

 1
48131-10290

EP7#..LHD..MTM

*HRP 1 OR A(W/COOLER);*HRP 2 OR S

 1
48131-10220

EP7#..LHD..MTM

 1
48131-10260

EP7#..LHD..MTM

W/COOLER

 1
48131-10300

EP7#..LHD..MTM

*HRP 2 OR S(W/COOLER)

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-10010

EP7#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-10070

EP7#

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-10020

EP7#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-10120

EP7#

 1
48510-10130

EP7#

 1
48510-10150

EP7#

HARSH ROAD PACKAGE

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-10110

EP7#

 1
48520-10130

EP7#

HARSH ROAD PACKAGE

 1
48520-10100

EP7#

 1
48680 - SUPPORT ASSY, FRONT SUSPENSION
48609-10060

EP7#

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

EP7#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

EP7#

 2
48684 - COVER, BEARING DUST
48684-10010

EP7#

 2
Common parts
90179-08087
91611-60822
94182-10800
