EP70L-PGKNS (1984)
Toyota Starlet
Production
Oct 1984
-
Aug 1988
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

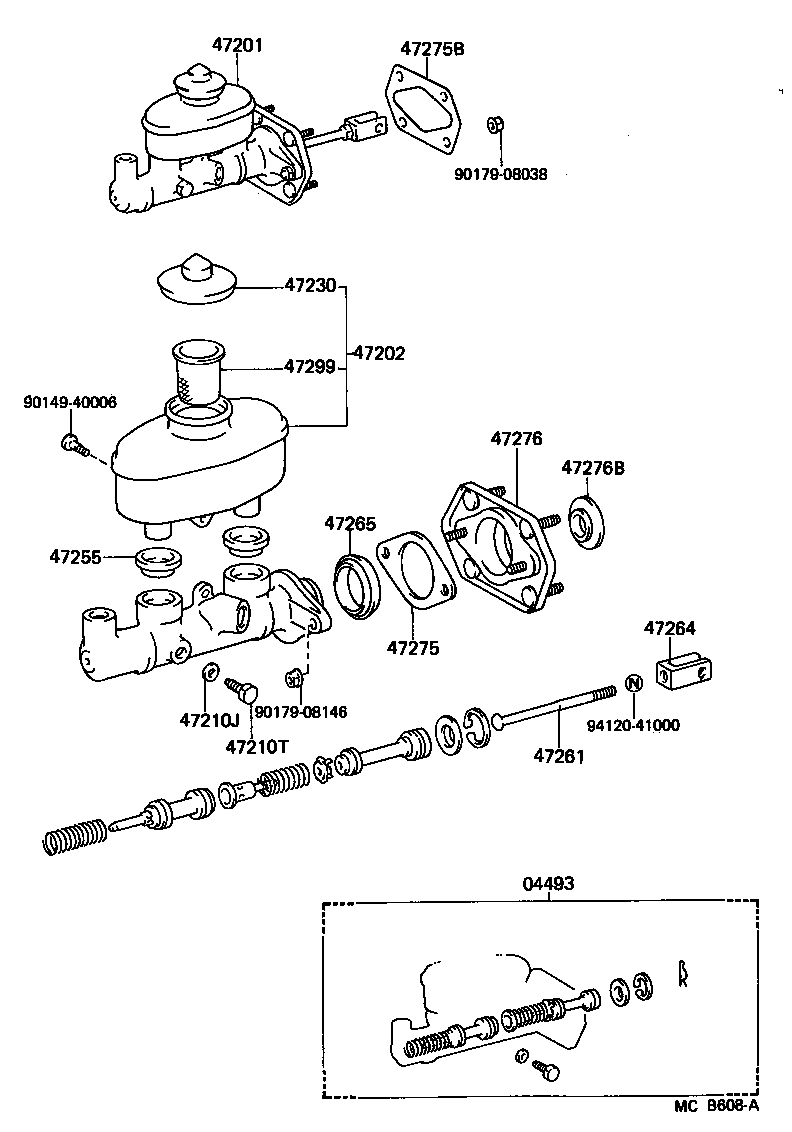

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-10100 |
EP70 |
1 | ||
| 04493-10090 |
EP7# W/BOOSTER |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-10120 |
EP7#..LHD W/BOOSTER |
1 | ||
| 47200-10340 |
EP70..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12360 |
EP7# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
EP7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
EP7# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
EP7# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
EP7# |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-10040 |
EP70 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
EP7# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
EP7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
EP7# |
1 | ||
| 47275B - GASKET, BRAKE MASTER CYLINDER, NO.2 | ||||
| 47275-10030 |
EP70 |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-10030 |
EP70 |
1 | ||
| 47276B - GROMMET(FOR BRAKE MASTER CYLINDER BRACKET) | ||||
| 90480-22004 |
EP70 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
EP7# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08038 | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
(8410- )

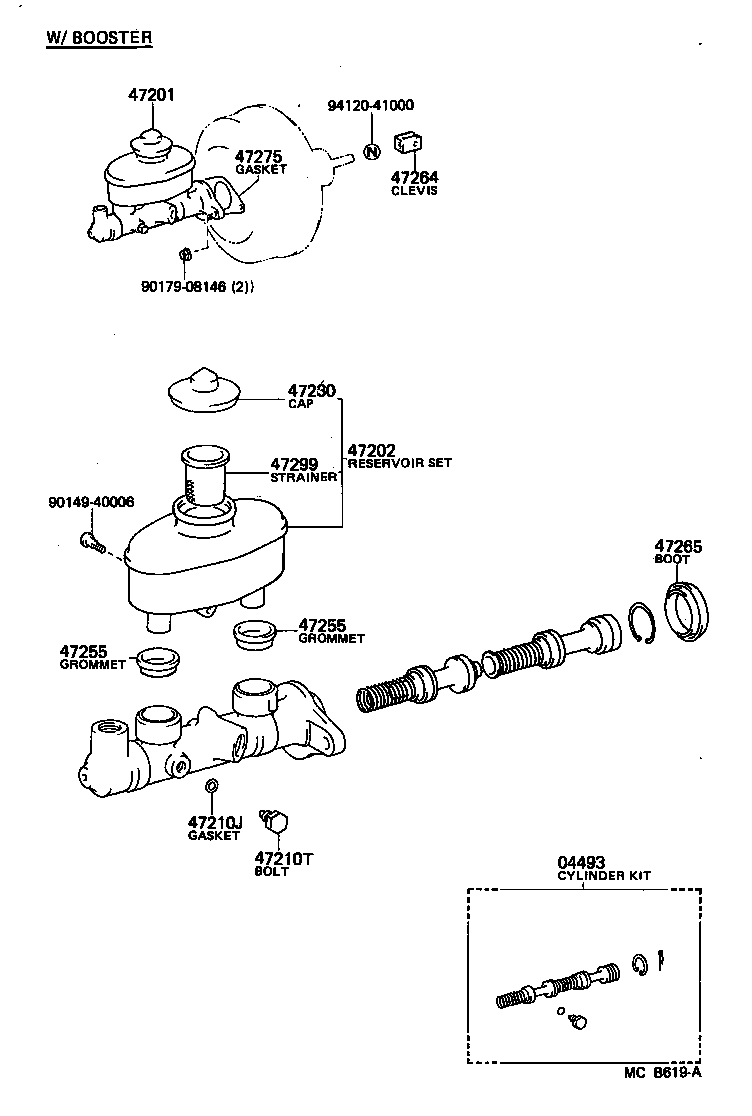

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-10100 |
EP70 |
1 | ||
| 04493-10090 |
EP7# W/BOOSTER |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-10120 |
EP7#..LHD W/BOOSTER |
1 | ||
| 47200-10340 |
EP70..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12360 |
EP7# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
EP7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
EP7# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
EP7# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
EP7# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
EP7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
EP7# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
EP7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
EP7# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
EP7# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
