NSP141R-BEXYBH (2015)
Toyota Spade
(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1507- )

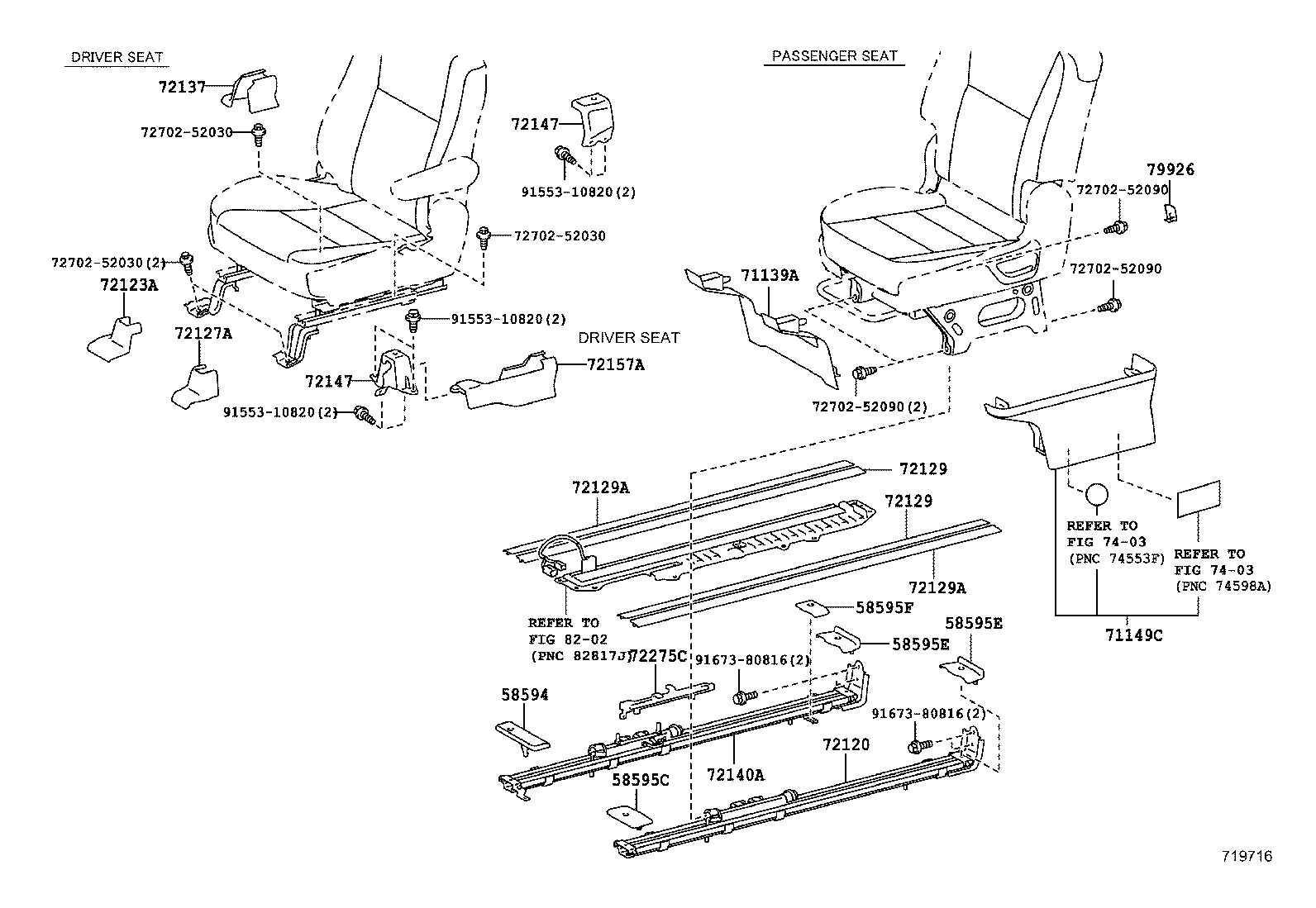

FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58595-52051E0 |
NSP141..F PLUM,TRIM0#,4# |
1 | ||
| 58595-52050E0 |
NSP141..Y PLUM,TRIM4# |
1 | ||
| 58595-52050E0 |
NSP141..F PLUM,TRIM0#,4# |
1 | ||
| 58595-52051E0 |
NSP141..Y PLUM,TRIM4# |
1 | ||
| 58595C - MOULDING, FLOOR CARPET, NO.1 | ||||
| 58595-52080E0 |
NSP141..Y PLUM,TRIM4# |
1 | ||
| 58595-52081E0 |
NSP141..F PLUM,TRIM0#,4# |
1 | ||
| 58595-52080E0 |
NSP141..F PLUM,TRIM0#,4# |
1 | ||
| 58595-52081E0 |
NSP141..Y PLUM,TRIM4# |
1 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 58595-52061E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 58595-52061E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-52060E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 58595-52060E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 58595-52061E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 58595-52061E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 58595F - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-52070E0 |
NSP141..Y PLUM,TRIM4# |
1 | ||
| 58595-52070E0 |
NSP141..F PLUM,TRIM0#,4# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-52020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71139-52020E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71139-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-52051E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71148-52050A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71148-52050E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71148-52050C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71148-52051C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52191 |
NSP141 |
1 | ||
| 72120-52190 |
NSP141 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-52030E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72123-52030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72123-52030A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-52020A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72127-52020E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72127-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52071E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52072E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52071E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52072E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-52071E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52072E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52071E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52072E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52041E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52042E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52041E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52042E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52041E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52042E0 |
NSP141..F PLUM,TRIM0#,4# |
2 | ||
| 72129-52041E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72129-52042E0 |
NSP141..Y PLUM,TRIM4# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52140E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72137-52140A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72137-52140C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52300 |
NSP141 |
1 | ||
| 72140-52301 |
NSP141 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52140 |
NSP141 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52140 |
NSP141 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52180A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72157-52180E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72157-52180C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72275C - STOPPER, FRONT SEAT TRACK SLIDE | ||||
| 72275-52020 |
NSP141 |
1 | ||
| 79926 - COVER, SEAT LEG GARNISH | ||||
| 79926-52010E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 79926-52010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 79926-52010A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 72702-52090 | ||||
| 91553-10820 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||

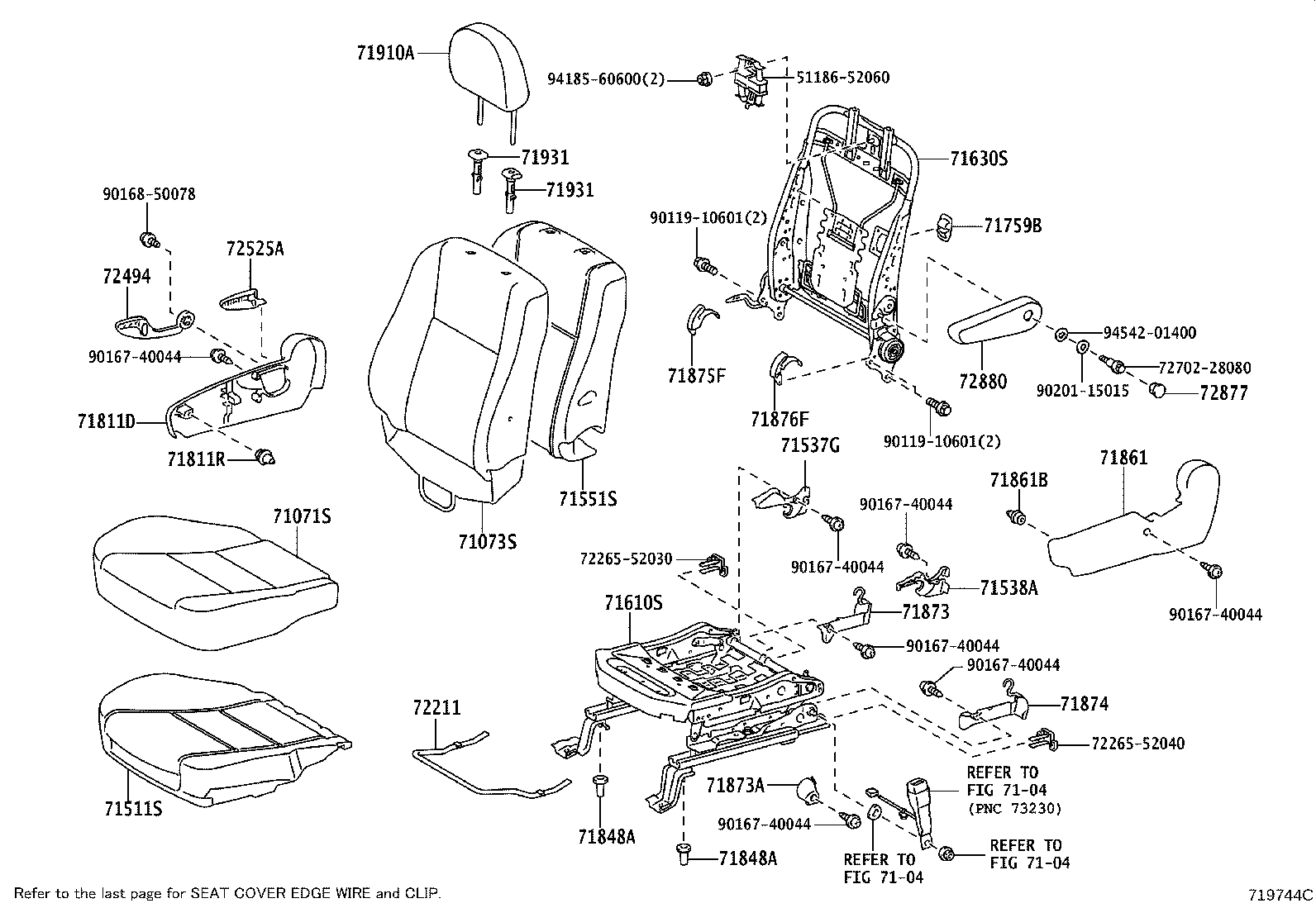

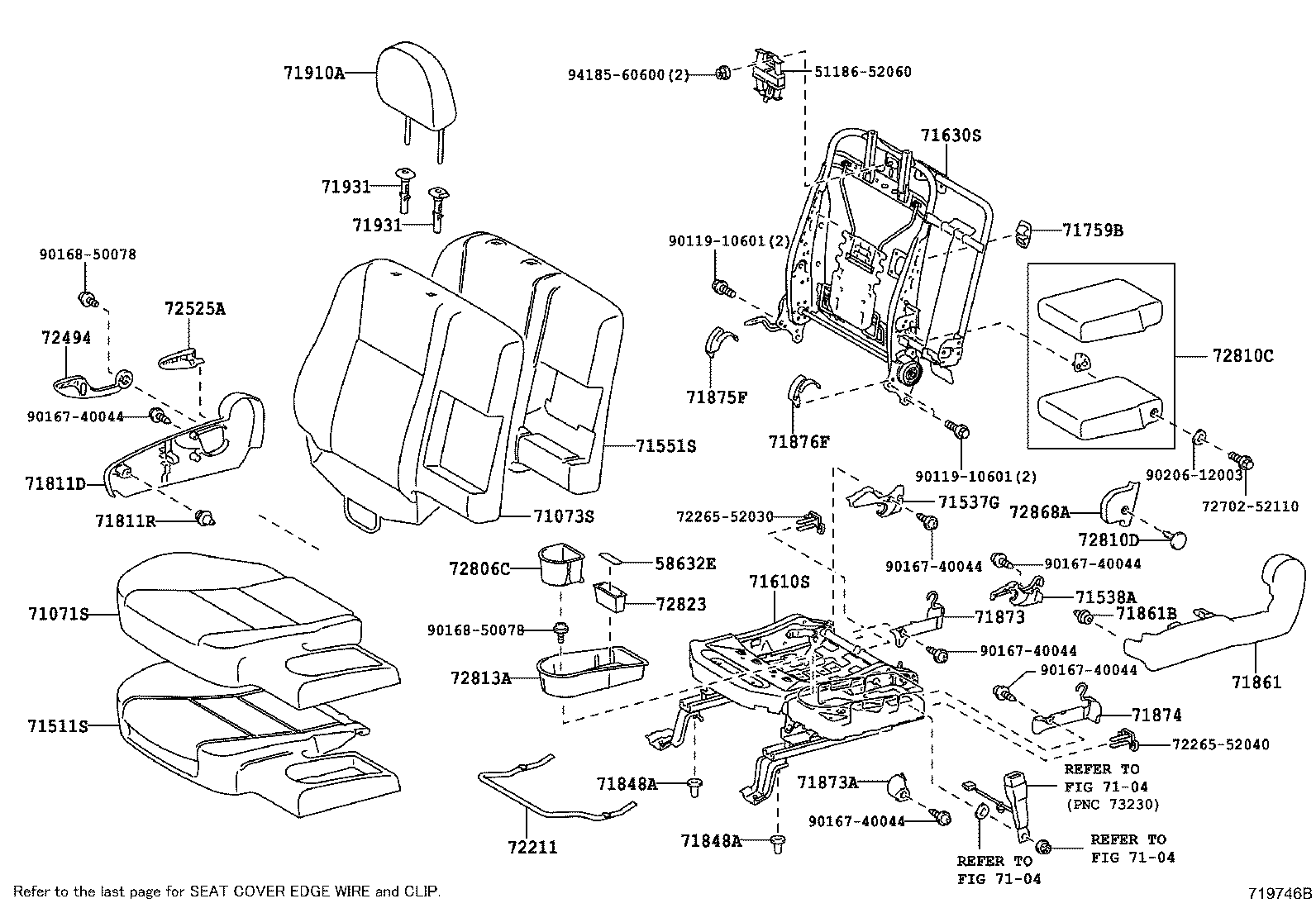

(1507- )F
DRIVER SIDE SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52Q60C1 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71071-52Q60A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q60A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q60C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71071-52Q60A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52S70A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C4 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71073-52S70A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C2 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71073-5C530C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52750 |
NSP141..Y |
1 | ||
| 71511-52740 |
NSP141..F |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71537-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71537-47010E6 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010E6 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71538-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71538-47010A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52C20 |
NSP141..F |
1 | ||
| 71551-52E20 |
NSP141..Y |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52190 |
NSP141..F |
1 | ||
| 71610-52200 |
NSP141..Y |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52600 |
NSP141..F |
1 | ||
| 71630-52751 |
NSP141..Y |
1 | ||
| 71630-52750 |
NSP141..Y |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-B2020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71759-B2020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71759-B2020L0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-68020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71811-68020A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71811-68020E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
NSP141 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NSP141 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NSP141 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-68010A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71861-68010E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71861-52290C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71861-68010C0 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
NSP141 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NSP141 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-68020 |
NSP141 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NSP141 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47030A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71875-47030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71875-47030E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71876-47030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71876-47030E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52E60C2 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71910-52E70C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71910-52E70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71910-52E60C4 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71910-52E60A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A6 |
NSP141..F W(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931-47020C0 |
NSP141 W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47020L1 |
NSP141..F W/O(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-47020C0 |
NSP141 W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-47020L1 |
NSP141..F W(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-47020A6 |
NSP141..F W/O(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A6 |
NSP141..F W(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931-47020C0 |
NSP141 W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47020L1 |
NSP141..F W/O(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-47020C0 |
NSP141 W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-47020L1 |
NSP141..F W(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-47020A6 |
NSP141..F W/O(LOCK),FROMAGE,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-68020 |
NSP141 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-68010E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72494-68010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72494-68010A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72494-68010C1 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C1 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525-47010E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72525-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525-47010A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-68010C0 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71877-68010E2 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71877-68010A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72810-52200A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72810-52200E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72810-52200C0 |
NSP141..F BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 51186-52060 | ||||
| 72265-52030 | ||||
| 72265-52040 | ||||
| 72702-28080 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1507- )Y
DRIVER SIDE BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58632E - COVER, SEAT FLOOR BOX | ||||
| 58632-52010C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52Q60C1 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71071-52Q60A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q60A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q60C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71071-52Q60A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71071-52Q70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52S70A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C4 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71073-52S70A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71073-52S70C2 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71073-5C530C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52750 |
NSP141..Y |
1 | ||
| 71511-52740 |
NSP141..F |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71537-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71537-47010E6 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010E6 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71538-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71538-47010A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52C20 |
NSP141..F |
1 | ||
| 71551-52E20 |
NSP141..Y |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52190 |
NSP141..F |
1 | ||
| 71610-52200 |
NSP141..Y |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52600 |
NSP141..F |
1 | ||
| 71630-52751 |
NSP141..Y |
1 | ||
| 71630-52750 |
NSP141..Y |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-B2020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71759-B2020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71759-B2020L0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-68020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71811-68020A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71811-68020E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
NSP141 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NSP141 |
2 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
NSP141 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-68010A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71861-68010E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71861-52290C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71861-68010C0 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
NSP141 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NSP141 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-68020 |
NSP141 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NSP141 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71875-47030A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71875-47030E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71876-47030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71876-47030E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52E60C2 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71910-52E70C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71910-52E70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71910-52E60A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71910-52E60C4 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71910-52E60A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A6 |
NSP141..F W(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931-47020C0 |
NSP141 W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47020L1 |
NSP141..F W/O(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-47020C0 |
NSP141 W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-47020L1 |
NSP141..F W(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-47020A6 |
NSP141..F W/O(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A6 |
NSP141..F W(LOCK),FROMAGE,TRIM0# |
1 | ||
| 71931-47020C0 |
NSP141 W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-47020L1 |
NSP141..F W/O(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-47020C0 |
NSP141 W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-47020L1 |
NSP141..F W(LOCK),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-47020A6 |
NSP141..F W/O(LOCK),FROMAGE,TRIM0# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-68020 |
NSP141 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-68010E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72494-68010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72494-68010A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72494-68010C1 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C1 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525-47010E5 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72525-47010C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72525-47010A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72806C - HOLDER SUB-ASSY, FRONT SEAT CENTER ARMREST CUP | ||||
| 72806-52020C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-52161C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72810-52160C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72810D - CLIP, FRONT SEAT ARMREST | ||||
| 90467-05090C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72813A - BOX, FRONT SEAT CENTER ARMREST | ||||
| 72813-52010C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72823 - HOLDER, FR SEAT ARMREST CUP | ||||
| 72823-52010C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-52060C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 51186-52060 | ||||
| 72265-52030 | ||||
| 72265-52040 | ||||
| 72702-52110 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90206-12003 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1507- )

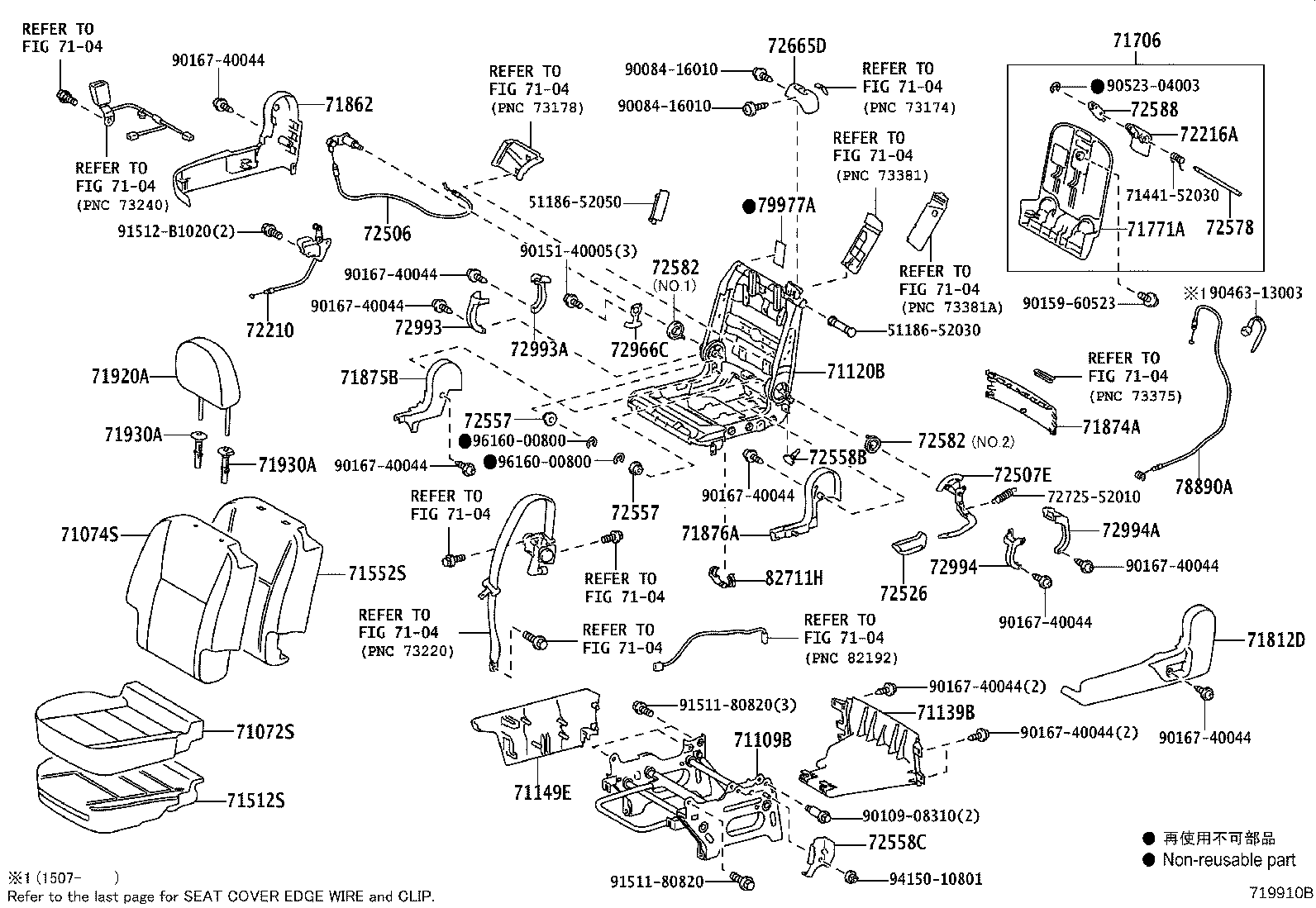

PASSEBGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52Q10A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10C1 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71072-52Q20C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71072-52Q10C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71072-52Q20C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71072-52Q10A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71072-52Q10C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71072-52Q20C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52M70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71074-52M50C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71074-52M50A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71074-52M50C3 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71074-52M50C1 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71074-52M50A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71074-52M50A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71074-52M50A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71074-52M70C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-52030 |
NSP141 |
1 | ||
| 71109-52031 |
NSP141 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52400 |
NSP141 |
1 | ||
| 71120-52400 |
NSP141 |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-52030E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71139-52030E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71139-52030A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71139-52030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71139-52030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71149-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71149-52020E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71149-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71149-52020E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71149-52020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-52170 |
NSP141 |
1 | ||
| 71502-52170 |
NSP141 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52B10 |
NSP141 |
1 | ||
| 71552-52B10 |
NSP141 |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-52031E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71706-52031A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71706-52031C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71706-52031C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71706-52031E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-52021E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71771-52021C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71771-52021A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71771-52021C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71771-52021E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52390A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71812-52390C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71812-52390E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71812-52390E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71812-52390C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71811-52190E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811-52190C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71811-52190A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71811-52190E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71811-52190C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52310C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71874-52310E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71874-52310C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71874-52310E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71874-52310A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52080C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71875-52080C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71875-52080A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71875-52080E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71875-52080E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52080E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71876-52080C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71876-52080C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 71876-52080E1 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 71876-52080A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-52020A2 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71920-52020A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71920-52020A3 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71920-52020C5 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71920-52030C0 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71920-52020A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 71920-52020C2 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71920-52030C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71920-52020C5 |
NSP141..F BLACK,TRIM4# |
1 | ||
| 71920-52030C1 |
NSP141..Y BLACK,TRIM4# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NSP141 W(LOCK)&W(BUTTON),BLACK,TRIM4# |
1 | ||
| 71930-52030A7 |
NSP141..F W(LOCK)&W(BUTTON),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NSP141 W(LOCK)&W/O(BUTTON),BLACK,TRIM4# |
1 | ||
| 71930-52030L2 |
NSP141..F W(LOCK)&W(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-52030C0 |
NSP141 W(LOCK)&W(BUTTON),BLACK,TRIM4# |
1 | ||
| 71931-42020A8 |
NSP141..F W(LOCK)&W/O(BUTTON),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NSP141 W(LOCK)&W/O(BUTTON),BLACK,TRIM4# |
1 | ||
| 71931-42020L9 |
NSP141..F W(LOCK)&W/O(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-52030L2 |
NSP141..F W(LOCK)&W(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-42020L9 |
NSP141..F W(LOCK)&W/O(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-52030C0 |
NSP141 W(LOCK)&W(BUTTON),BLACK,TRIM4# |
1 | ||
| 71930-52030A7 |
NSP141..F W(LOCK)&W(BUTTON),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NSP141 W(LOCK)&W/O(BUTTON),BLACK,TRIM4# |
1 | ||
| 71930-52030L2 |
NSP141..F W(LOCK)&W(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-52030C0 |
NSP141 W(LOCK)&W(BUTTON),BLACK,TRIM4# |
1 | ||
| 71931-42020A8 |
NSP141..F W(LOCK)&W/O(BUTTON),FROMAGE,TRIM0# |
1 | ||
| 71931-42020C0 |
NSP141 W(LOCK)&W/O(BUTTON),BLACK,TRIM4# |
1 | ||
| 71931-42020L9 |
NSP141..F W(LOCK)&W/O(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71930-52030L2 |
NSP141..F W(LOCK)&W(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 71931-42020L9 |
NSP141..F W(LOCK)&W/O(BUTTON),NOBLE BROWN,TRIM0# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-52020 |
NSP141 |
1 | ||
| 72210-52020 |
NSP141 |
1 | ||
| 72216A - LEVER, SEAT TRACK HANDLE CONTROL, LH | ||||
| 72216-52020A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72216-52020E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72216-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72216-52020E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72216-52020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72506 - ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH | ||||
| 72506-52070 |
NSP141 |
1 | ||
| 72506-52070 |
NSP141 |
1 | ||
| 72507E - HANDLE SUB-ASSY, RECLINING RELEASE, NO.1 | ||||
| 72507-52010 |
NSP141 |
1 | ||
| 72507-52010 |
NSP141 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52050A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72526-52050E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72526-52050C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72526-52050E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72526-52050C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-46010 |
NSP141 |
2 | ||
| 72557-46010 |
NSP141 |
2 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-46010 |
NSP141 |
2 | ||
| 72557-46010 |
NSP141 |
2 | ||
| 72558B - STOPPER, RECLINING (FRONT SEAT) | ||||
| 72558-44020 |
NSP141 |
1 | ||
| 72558-44020 |
NSP141 |
1 | ||
| 72558C - STOPPER, RECLINING, NO.1 | ||||
| 72558-52010 |
NSP141 |
1 | ||
| 72558-52010 |
NSP141 |
1 | ||
| 72578 - PIN, FRONT SEAT BACK STOPPER | ||||
| 72578-52020 |
NSP141 |
1 | ||
| 72578-52020 |
NSP141 |
1 | ||
| 72582 - BAR, RECLINING TORSION | ||||
| 72582-52060 |
NSP141 NO.2 |
1 | ||
| 72582-52050 |
NSP141 NO.1 |
1 | ||
| 72582-52050 |
NSP141 NO.1 |
1 | ||
| 72582-52060 |
NSP141 NO.2 |
1 | ||
| 72582 - BAR, RECLINING TORSION | ||||
| 72582-52060 |
NSP141 NO.2 |
1 | ||
| 72582-52050 |
NSP141 NO.1 |
1 | ||
| 72582-52050 |
NSP141 NO.1 |
1 | ||
| 72582-52060 |
NSP141 NO.2 |
1 | ||
| 72588 - BRACKET, FRONT SEAT BACK BOARD | ||||
| 72588-52030 |
NSP141 |
1 | ||
| 72588-52030 |
NSP141 |
1 | ||
| 72665D - COVER, FRONT SEAT BACK LOCK | ||||
| 72667-52030E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72667-52030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72667-52030E0 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72667-52030A0 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72667-52030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72966C - PLATE, REAR SEAT TURN LOCK, NO.1 LH | ||||
| 72966-52010 |
NSP141 |
1 | ||
| 72966-52010 |
NSP141 |
1 | ||
| 72993 - COVER, FRONT SEAT BACK | ||||
| 72993-46020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72993-46020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72993-46020E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72993-46020E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72993-46020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72993A - COVER, FRONT SEAT BACK | ||||
| 72993-46030E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72993-46030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72993-46030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72993-46030A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72993-46030E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72994 - COVER, FRONT SEAT BACK | ||||
| 72994-46020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72994-46020C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72994-46020A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72994-46020E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72994-46020E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72994A - COVER, FRONT SEAT BACK | ||||
| 72994-46030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 72994-46030E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72994-46030A1 |
NSP141..F FROMAGE,TRIM0# |
1 | ||
| 72994-46030E3 |
NSP141..F PLUM,TRIM0# |
1 | ||
| 72994-46030C0 |
NSP141 BLACK,TRIM4# |
1 | ||
| 78890A - CABLE ASSY, SUB-SEAT LOCK CONTROL | ||||
| 78890-52010 |
NSP141 |
1 | ||
| 78890-52010 |
NSP141 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52090 |
NSP141 |
1 | ||
| 79977-52090 |
NSP141 |
1 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
NSP141 |
1 | ||
| 82711-2B660 |
NSP141 |
1 | ||
| Common parts | ||||
| 51186-52030 | ||||
| 51186-52050 | ||||
| 71441-52030 | ||||
| 72725-52010 | ||||
| 90084-16010 | ||||
| 90109-08310 | ||||
| 90151-40005 | ||||
| 90159-60523 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 90523-04003 | ||||
| 91511-80820 | ||||
| 91512-B1020 | ||||
| 94150-10801 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
