NSP141R-BEXFBH (2015)
Toyota Spade
Production
Jul 2015
-
Sep 9999
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

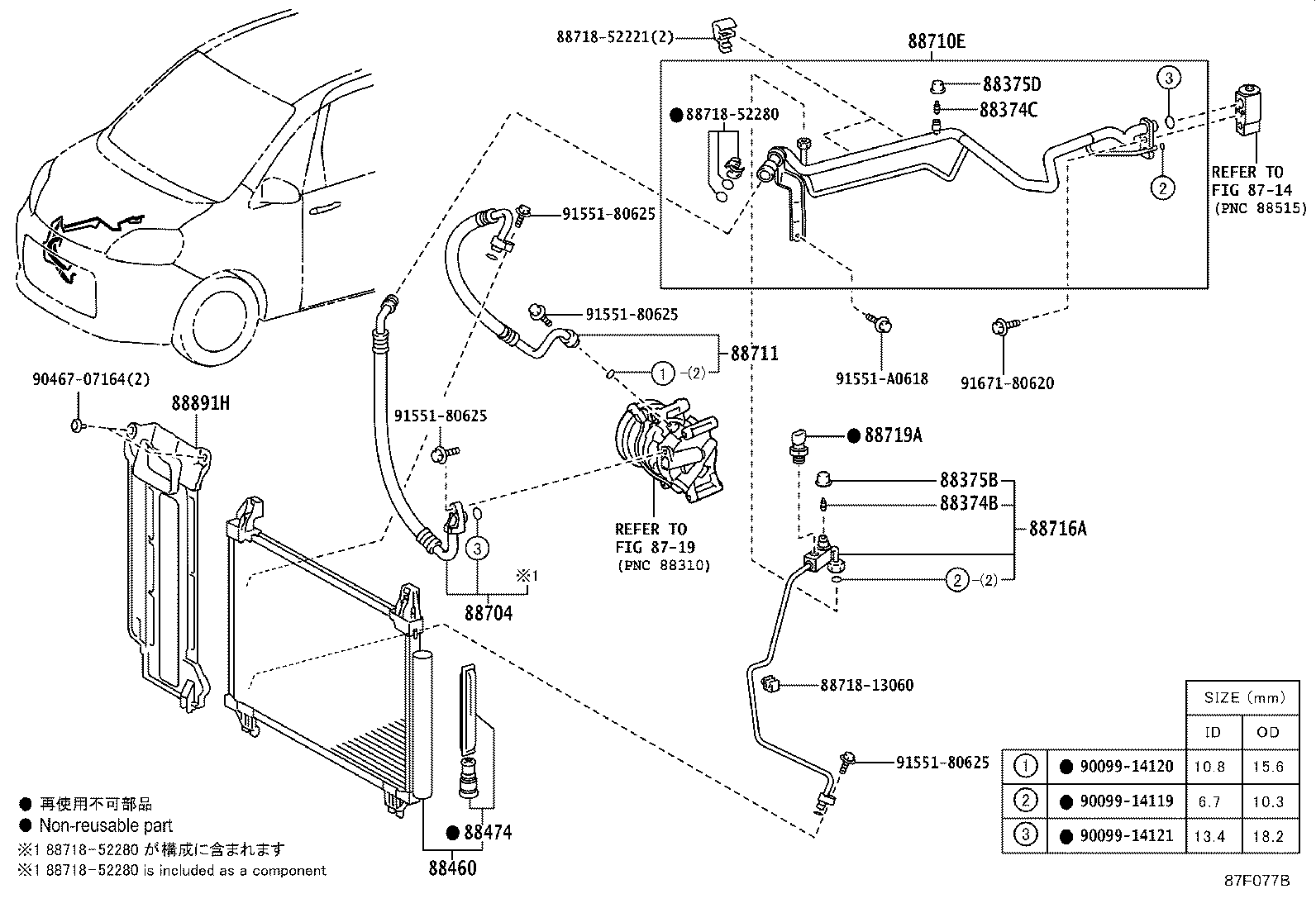

(1507-1907)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NSP141 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NSP141 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NSP141 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NSP141 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52130 |
NSP141 |
1 | ||
| 88460-12600 |
NSP141 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
NSP141 |
1 | ||
| 88474-12010 |
NSP141 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-52360 |
NSP141 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-52160 |
NSP141 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52370 |
NSP141 |
1 | ||
| 88711-52530 |
NSP141 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52830 |
NSP141 |
1 | ||
| 88716-52880 |
NSP141 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NSP141 |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52100 |
NSP141 |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 88718-52280 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90467-07164 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

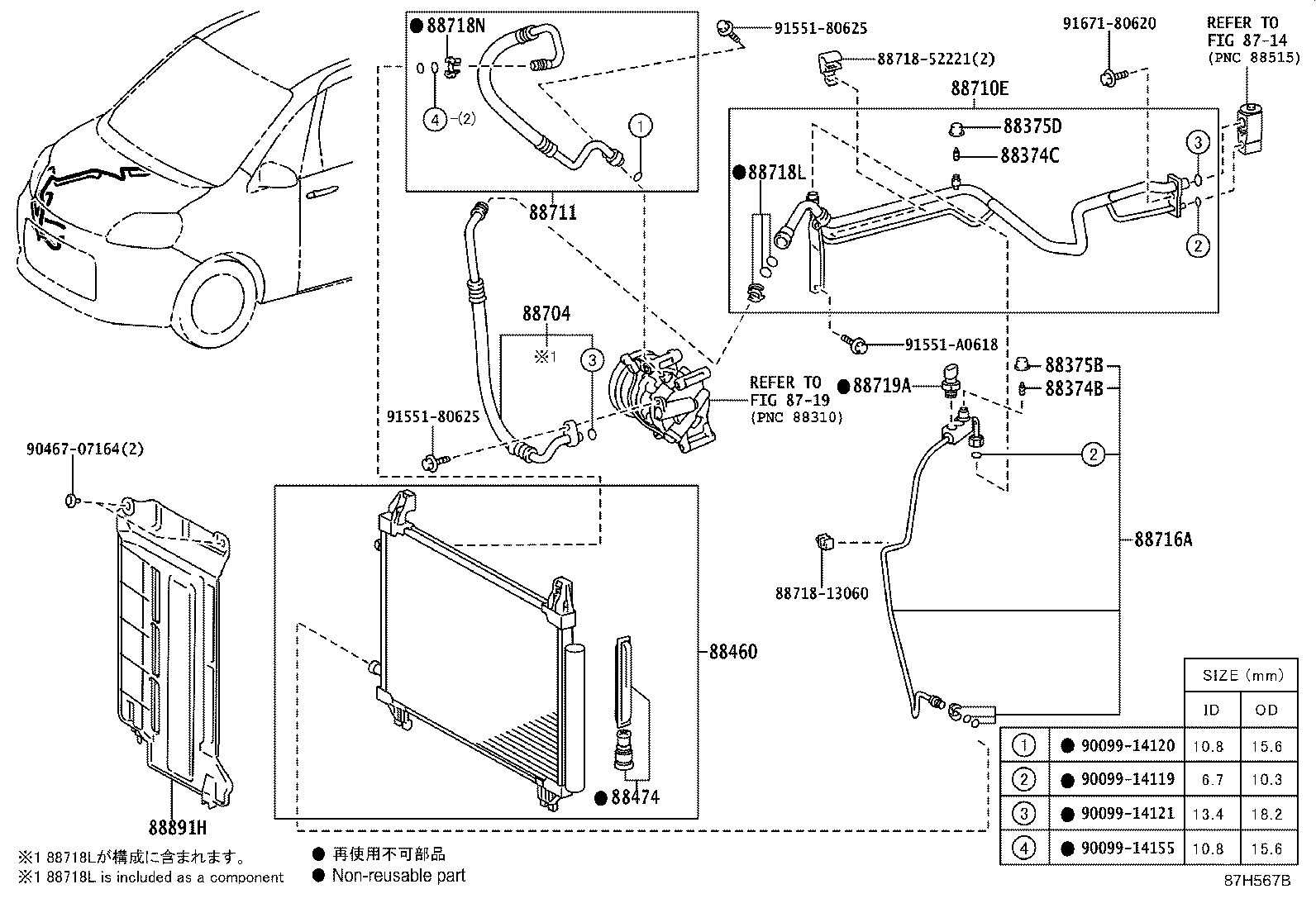

(1907- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NSP141 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NSP141 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NSP141 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NSP141 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52130 |
NSP141 |
1 | ||
| 88460-12600 |
NSP141 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
NSP141 |
1 | ||
| 88474-12010 |
NSP141 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-52360 |
NSP141 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-52160 |
NSP141 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52370 |
NSP141 |
1 | ||
| 88711-52530 |
NSP141 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52830 |
NSP141 |
1 | ||
| 88716-52880 |
NSP141 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
NSP141 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E140 |
NSP141 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NSP141 |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52100 |
NSP141 |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14155 | ||||
| 90467-07164 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
