NSP141R-BEXFBH (2015)

Toyota Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

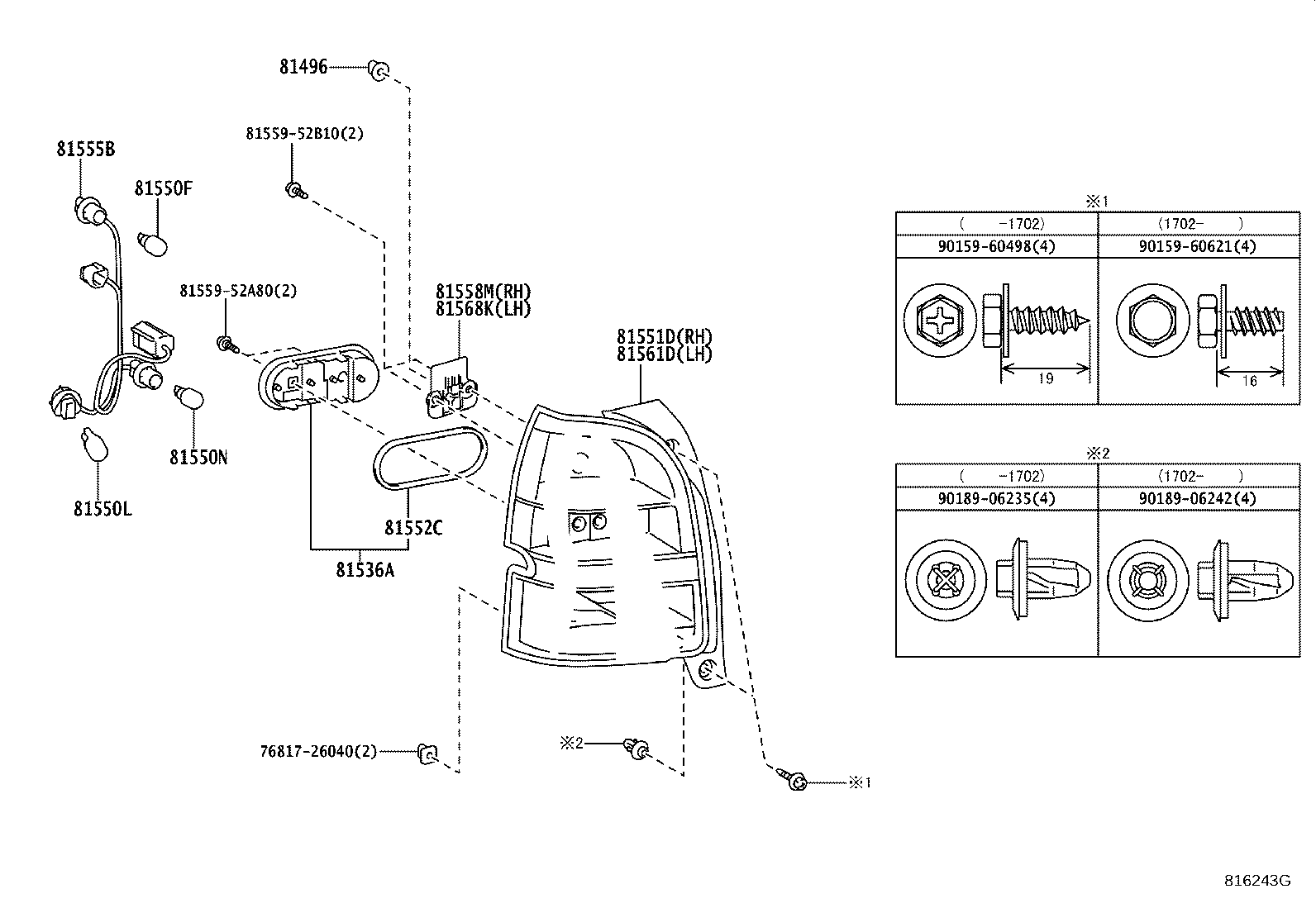

Click highlighted areas on diagram

diagram 7681726040 81496 81536A 81550F 81550L 81550N 81551D 81552C 81555B 81558M 8155952A80 8155952B10 81561D 81568K 9015960498 9015960621 9018906235 9018906242
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

NSP141

 2
81536A - LED, REAR COMBINATION LAMP
81536-52B10

NSP141

 2
81550F - BULB, TAIL LAMP
99132-12050

NSP141

12V 5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

NSP141

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

NSP141

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-52B10

NSP141

 1
81552C - GASKET, REAR COMBINATION LAMP
81538-52B10

NSP141

 2
81555B - SOCKET PLUG, NO.1
81555-52A30

NSP141

 2
81558M - BRACKET, REAR COMBINATION LAMP, RH
81556-52B10

NSP141

 1
81558-52B10

NSP141

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-52A20

NSP141

 1
81568K - BRACKET, REAR COMBINATION LAMP, LH
81568-52A20

NSP141

 1
81566-52A20

NSP141

 1
Common parts
76817-26040
81559-52A80
81559-52B10
90159-60498
90159-60621
90189-06235
90189-06242
