NSP141R-BEXFBH (2015)
Toyota Spade
Production
Jul 2015
-
Sep 9999
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

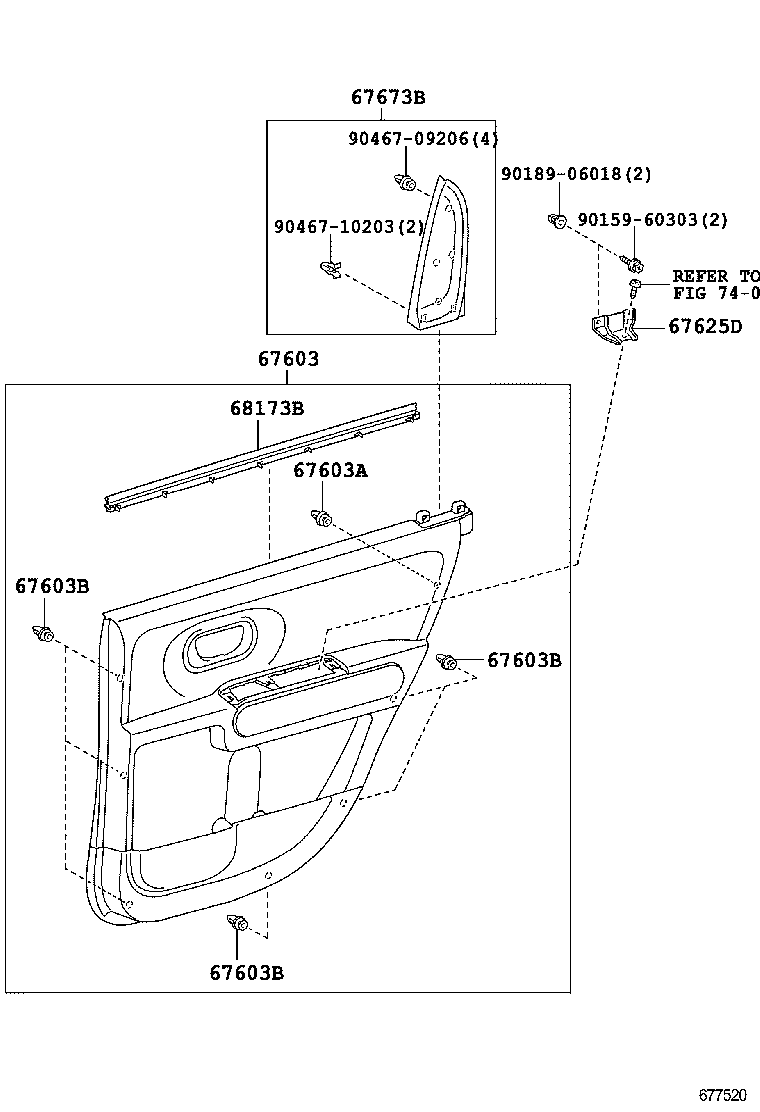

ILLUST NO. 2 OF 2(1507- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52X40E0 |
NSP141..F PLUM/BLACK,TRIM0#,4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-26240 |
NSP141 |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP141 |
7 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP141 |
7 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP141 |
7 | ||
| 67625D - BRACKET, REAR DOOR TRIM | ||||
| 67625-52140 |
NSP141 |
1 | ||
| 67673B - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-52060 |
NSP141 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52180 |
NSP141 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90467-09206 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7401 | ||||

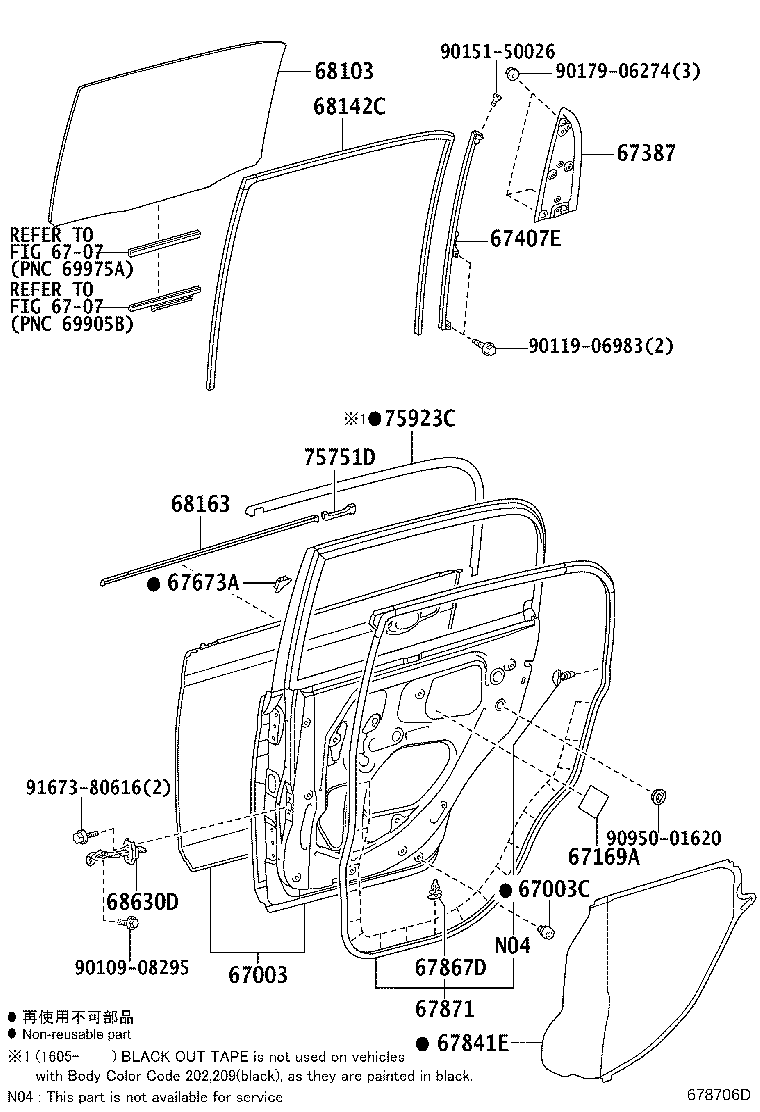

ILLUST NO. 1 OF 2(1507- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52482 |
NSP141 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09143 |
NSP141 |
1 | ||
| 67169A - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67169-44020 |
NSP141 |
1 | ||
| 67387 - BRACKET, REAR DOOR INSIDE PANEL, NO.4 | ||||
| 67387-52020 |
NSP141 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52190 |
NSP141 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
NSP141 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52360 |
NSP141 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP141 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52241 |
NSP141 |
1 | ||
| 67871-52240 |
NSP141 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-52390 |
NSP141 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52200 |
NSP141 |
1 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68163-52010 |
NSP141 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52140 |
NSP141 |
1 | ||
| 75751D - MOULDING, REAR DOOR BELT, RH | ||||
| 75721-52011 |
NSP141 |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-52141 |
NSP141 |
1 | ||
| 75923-52141 |
NSP141 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90179-06274 | ||||
| 90950-01620 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
