NSP141R-BEXFBH (2015)

Toyota Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1507- )

Click highlighted areas on diagram

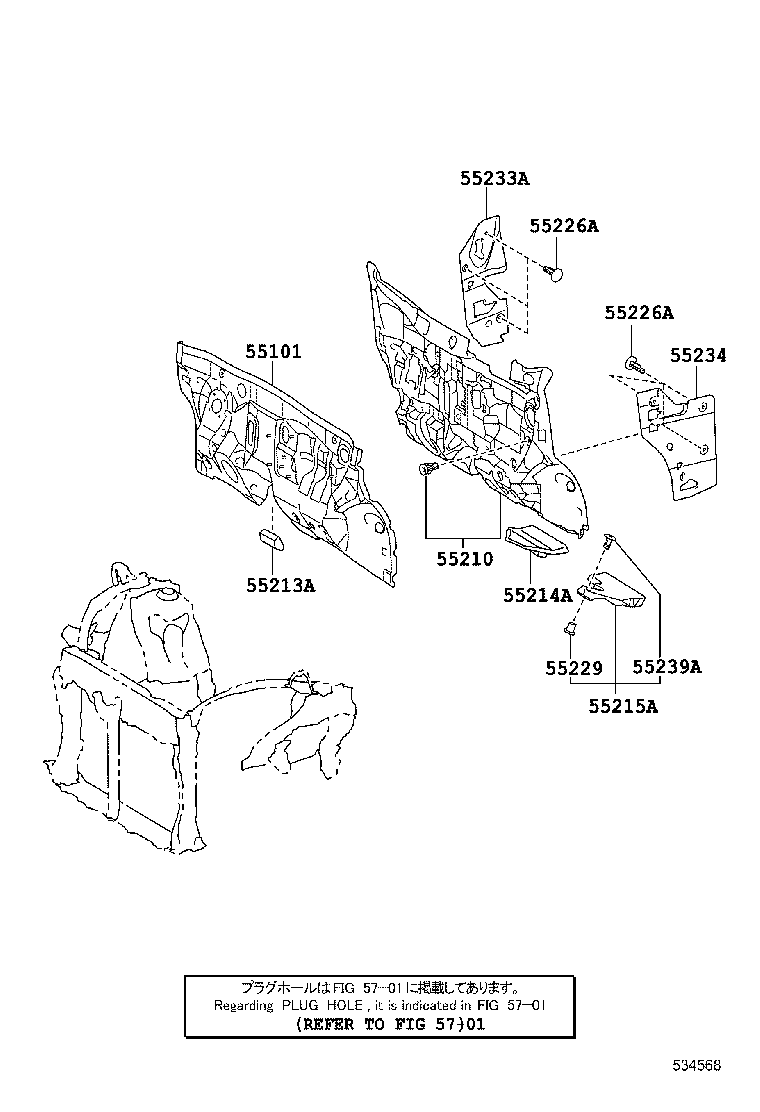

DASH PANEL

diagram 55101 55210 55213A 55214A 55215A 55226A 55226A 55229 55233A 55234 55239A 5701
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-52620

NSP141

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-52350

NSP141

 1
55213A - PAD, DASH PANEL SILENCER
55213-52190

NSP141

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-52160

NSP141

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-52170

NSP141

 1
55226A - CLIP
90467-07042C0

NSP141

BLACK

 6
90467-07042C4

NSP141

BLACK

 6
55226A - CLIP
90467-07042C0

NSP141

BLACK

 6
90467-07042C4

NSP141

BLACK

 6
55229 - PLATE, DASH PANEL INSULATOR, NO.4
55229-48010

NSP141

 1
55233A - SHEET, DASH PANEL INSULATOR
55233-52020

NSP141

 1
55234 - SHEET, DASH PANEL INSULATOR, NO.2
55234-52030

NSP141

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-48020

NSP141

 1
Linked diagrams
5701

ILLUST NO. 1 OF 2(1507- )

Click highlighted areas on diagram

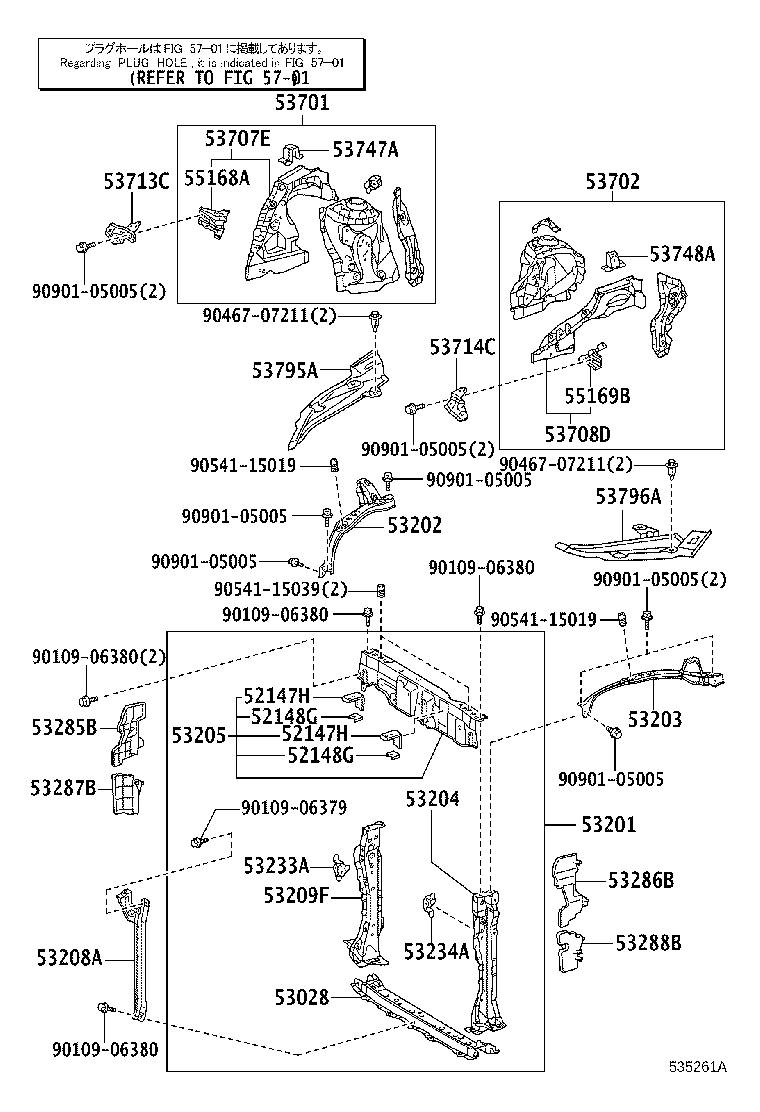

RADIATOR SUPPORT&FRONT FENDER APRON

diagram 52147H 52147H 52148G 52148G 53028 53201 53202 53203 53204 53205 53208A 53209F 53233A 53234A 53285B 53286B 53287B 53288B 53701 53702 53707E 53708D 53713C 53714C 53747A 53748A 53795A 53796A 55168A 55169B 5701 9010906379 9010906380 9010906380 9010906380 9010906380 9046707211 9046707211 9054115019 9054115019 9054115039 9090105005 9090105005 9090105005 9090105005 9090105005 9090105005 9090105005
Part # Description Qty Price
52147H - BRACKET, FRONT BUMPER MOUNTING
52147-12200

NSP141

 2
52147H - BRACKET, FRONT BUMPER MOUNTING
52147-12200

NSP141

 2
52148G - BRACKET, FRONT BUMPER MOUNTING, NO.2
52148-12160

NSP141

 2
52148G - BRACKET, FRONT BUMPER MOUNTING, NO.2
52148-12160

NSP141

 2
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-52091

NSP141

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53210-52915

NSP141

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-52250

NSP141

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-52240

NSP141

 1
53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER
53204-52020

NSP141

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-52909

NSP141

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-52140

NSP141

 1
53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH
53209-52020

NSP141

 1
53233A - BRACKET, HEADLAMP, NO.1 RH
53233-52070

NSP141

 1
53234A - BRACKET, HEADLAMP, NO.1 LH
53234-52080

NSP141

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-52450

NSP141

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-52370

NSP141

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-52210

NSP141

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-52200

NSP141

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-52220

NSP141

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-52220

NSP141

 1
53707E - APRON SUB-ASSY, FENDER SIDE, RH
53707-52060

NSP141

 1
53708D - APRON SUB-ASSY, FENDER SIDE, LH
53708-52060

NSP141

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-52100

NSP141

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-52130

NSP141

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-52100

NSP141

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-52100

NSP141

 1
53795A - COVER, ENGINE ROOM, SIDE
53795-52040

NSP141

 1
53796A - COVER, ENGINE ROOM SIDE, LH
53796-52010

NSP141

 1
55168A - BRACKET, FRONT FENDER MOUNTING, RH
55168-52130

NSP141

 1
55169B - BRACKET, FRONT FENDER MOUNTING, LH
55169-52130

NSP141

 1
Common parts
90109-06379
90109-06380
90467-07211
90541-15019
90541-15039
90901-05005
Linked diagrams
5701
