NSP141R-BEXFBH (2015)

Toyota Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

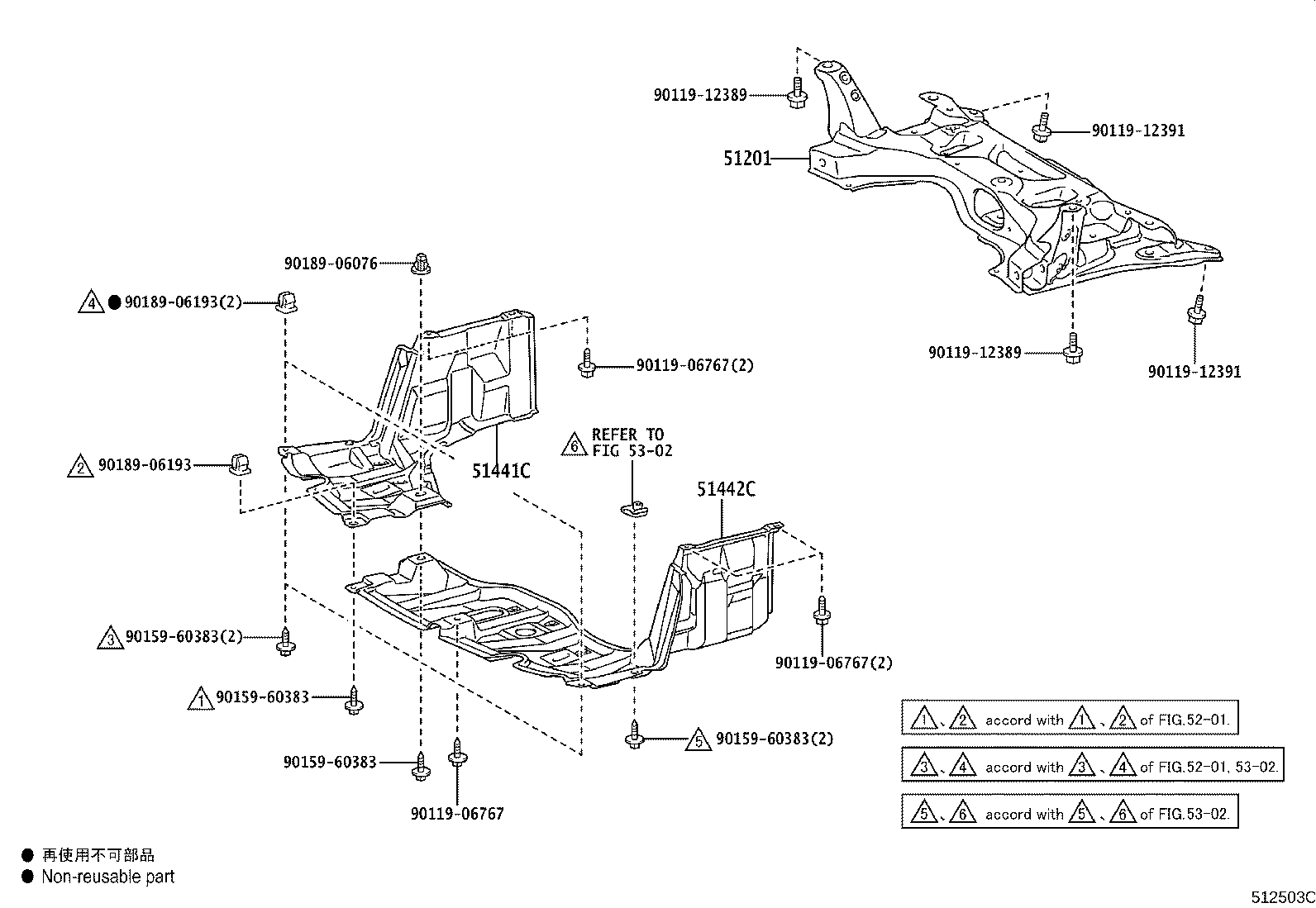

Click highlighted areas on diagram

diagram 51201 51441C 51442C 5302 9011906767 9011906767 9011906767 9011912389 9011912389 9011912391 9011912391 9015960383 9015960383 9015960383 9015960383 9018906076 9018906193 9018906193
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52087

NSP141

 1
51441C - COVER, ENGINE UNDER, RH
51441-52330

NSP141

 1
51442C - COVER, ENGINE UNDER, LH
51442-52160

NSP141

 1
Common parts
90119-06767
90119-12389
90119-12391
90159-60383
90189-06076
90189-06193
Linked diagrams
5302
