NSP141R-BEXFBH (2015)

Toyota Spade

Production Jul 2015 - Sep 9999
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507-1911)

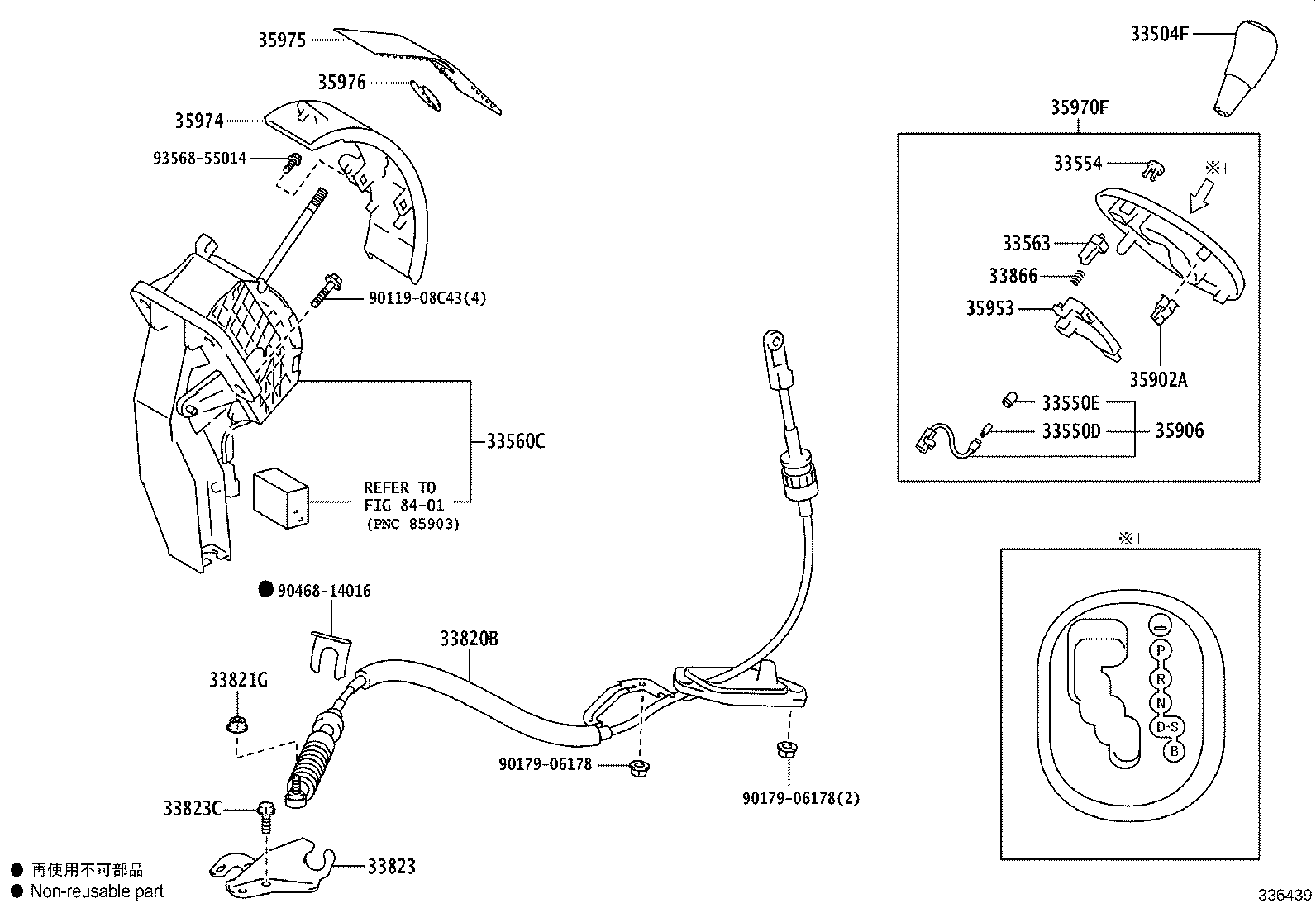

Click highlighted areas on diagram

W/O(PROTECTOR)

diagram 33504F 33550D 33550E 33554 33560C 33563 33820B 33821G 33823 33823C 33866 35902A 35906 35953 35970F 35974 35975 35976 8401 9011908C43 9017906178 9017906178 9046814016 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52350C0

NSP141..F

BLACK,TRIM4#

 1
33504-52350E0

NSP141..F

PLUM,TRIM0#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

NSP141

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-64020

NSP141

 1
33554 - CAP, SHIFT LEVER
33554-52081E0

NSP141..F

PLUM,TRIM0#

 1
33554-52081C0

NSP141

BLACK,TRIM4#

 1
33560C - LEVER ASSY, SHIFT, LOWER
33560-52600

NSP141

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52270

NSP141

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52830

NSP141

W/O(PROTECTOR)

 1
33820-52831

NSP141

W/(PROTECTOR)

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NSP141

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NSP141

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NSP141

 2
33866 - SPRING, SHIFT LOCK RELEASE
33866-64010

NSP141

 1
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-10201

NSP141

 3
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52250

NSP141

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-52150

NSP141

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52131C0

NSP141

BLACK,TRIM4#

 1
35970-52131E0

NSP141..F

PLUM,TRIM0#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52130

NSP141

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-28040

NSP141

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-28010

NSP141

 1
Common parts
90119-08C43
90179-06178
90468-14016
93568-55014
Linked diagrams
8401

(1911- )

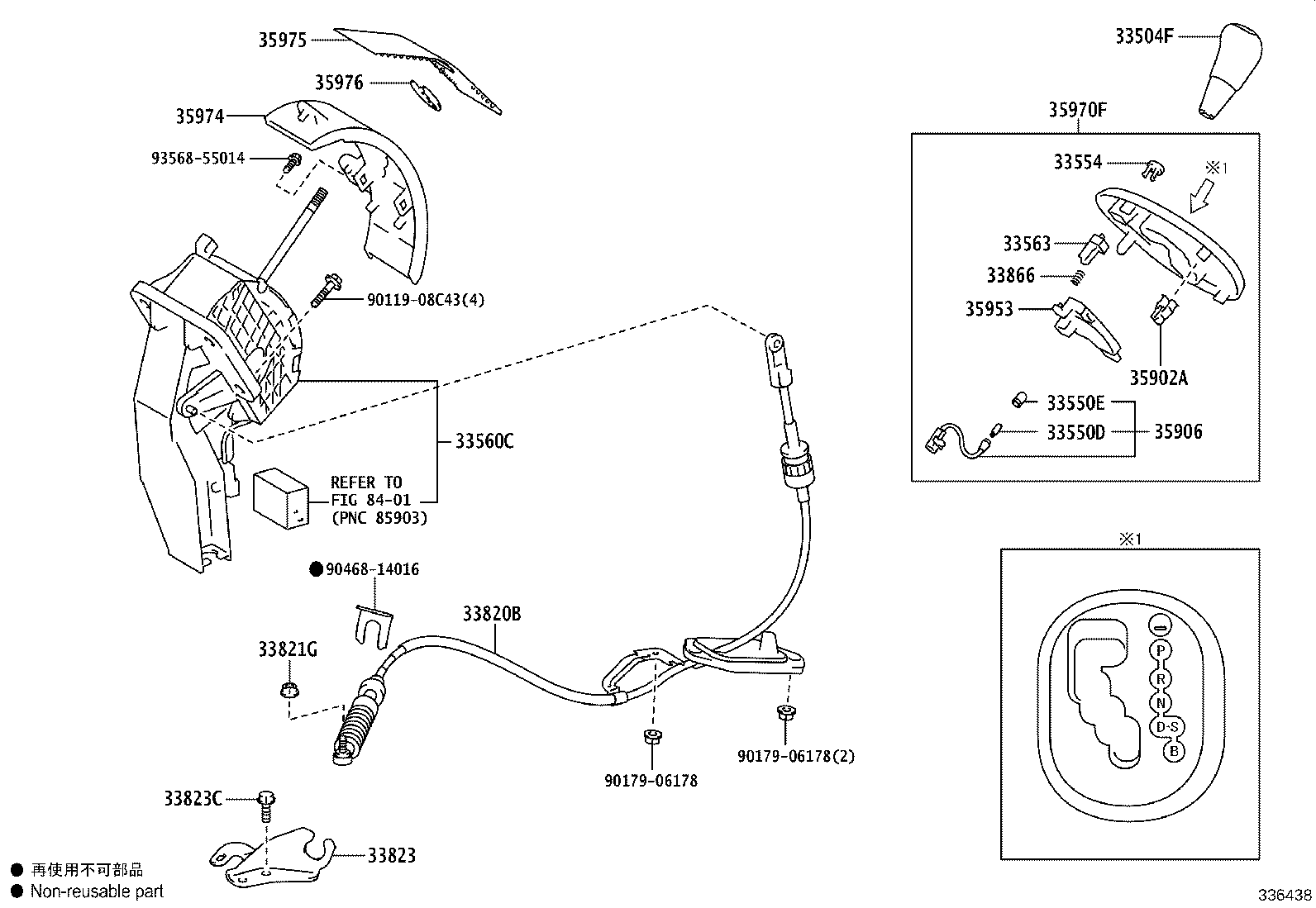

Click highlighted areas on diagram

W/(PROTECTOR)

diagram 33504F 33550D 33550E 33554 33560C 33563 33820B 33821G 33823 33823C 33866 35902A 35906 35953 35970F 35974 35975 35976 8401 9011908C43 9017906178 9017906178 9046814016 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52350C0

NSP141..F

BLACK,TRIM4#

 1
33504-52350E0

NSP141..F

PLUM,TRIM0#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

NSP141

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-64020

NSP141

 1
33554 - CAP, SHIFT LEVER
33554-52081E0

NSP141..F

PLUM,TRIM0#

 1
33554-52081C0

NSP141

BLACK,TRIM4#

 1
33560C - LEVER ASSY, SHIFT, LOWER
33560-52600

NSP141

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52270

NSP141

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52830

NSP141

W/O(PROTECTOR)

 1
33820-52831

NSP141

W/(PROTECTOR)

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NSP141

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52150

NSP141

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NSP141

 2
33866 - SPRING, SHIFT LOCK RELEASE
33866-64010

NSP141

 1
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-10201

NSP141

 3
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52250

NSP141

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-52150

NSP141

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52131C0

NSP141

BLACK,TRIM4#

 1
35970-52131E0

NSP141..F

PLUM,TRIM0#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52130

NSP141

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-28040

NSP141

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-28010

NSP141

 1
Common parts
90119-08C43
90179-06178
90468-14016
93568-55014
Linked diagrams
8401
