AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

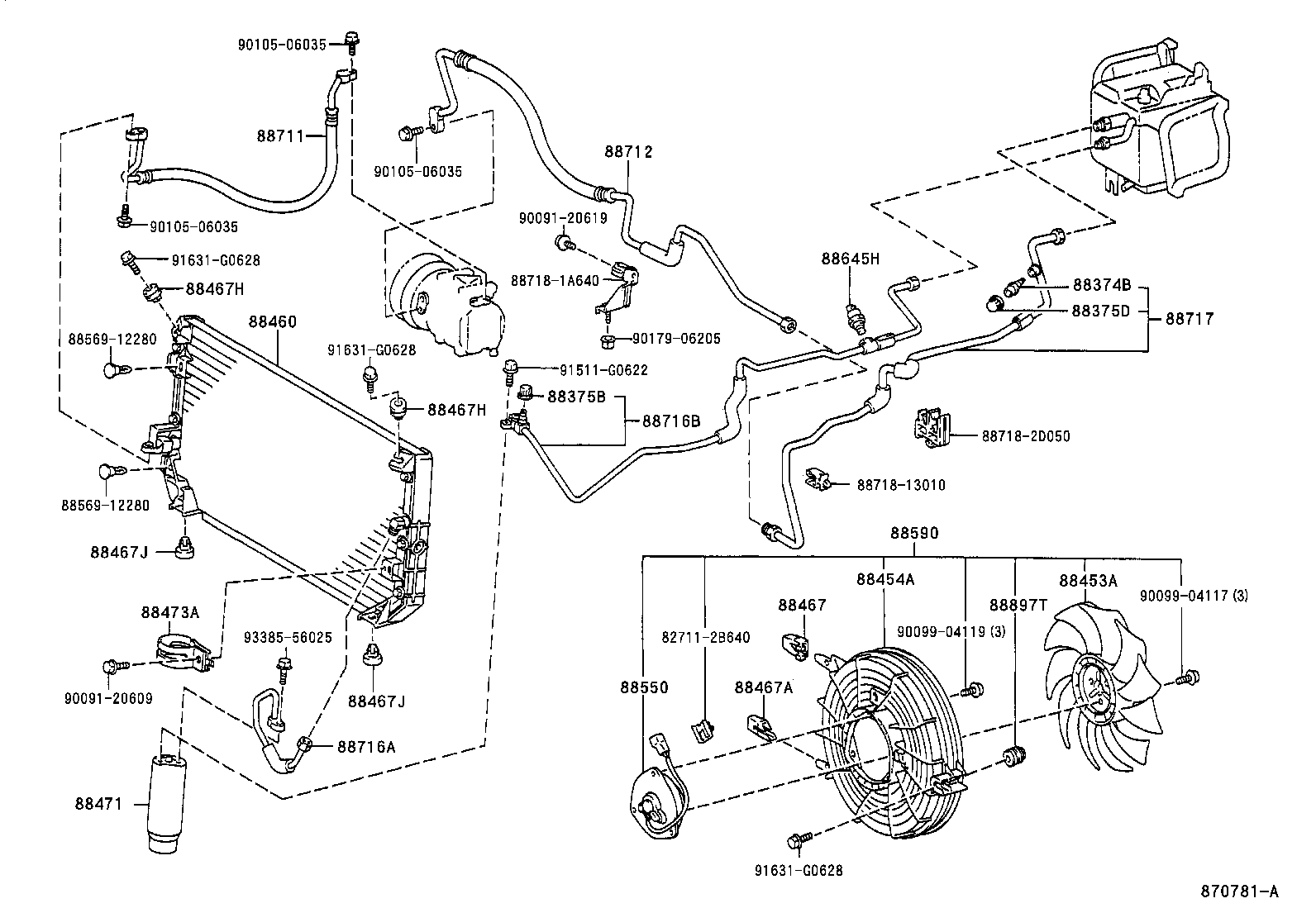

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE111 MAKER OPTION |
1 | ||
| 88374-30010 |
AE111 DEALER OPTION |
2 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
AE111 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
AE111 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-10022 |
AE111 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12160 |
AE111 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-13010 |
AE111 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12130 |
AE111 |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12140 |
AE111 |
1 | ||
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88897-12250 |
AE111 |
2 | ||
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88897-12250 |
AE111 |
2 | ||
| 88467J - CUSHION, CONDENSER BRACKET, NO.2 | ||||
| 88467-12100 |
AE111 |
2 | ||
| 88467J - CUSHION, CONDENSER BRACKET, NO.2 | ||||
| 88467-12100 |
AE111 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-60010 |
AE111 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20070 |
AE111 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
AE111 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12250 |
AE111 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE111 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-1A490 |
AE111 DEALER OPTION |
1 | ||
| 88711-1A450 |
AE111 MAKER OPTION |
1 | ||
| 88711-1A491 |
AE111 DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A460 |
AE111 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12470 |
AE111 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-13010 |
AE111 MAKER OPTION |
1 | ||
| 88716-1A470 |
AE111 DEALER OPTION |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-13020 |
AE111 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-12250 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88569-12280 | ||||
| 88718-13010 | ||||
| 88718-1A640 | ||||
| 88718-2D050 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90105-06035 | ||||
| 90179-06205 | ||||
| 91511-G0622 | ||||
| 91631-G0628 | ||||
| 93385-56025 | ||||

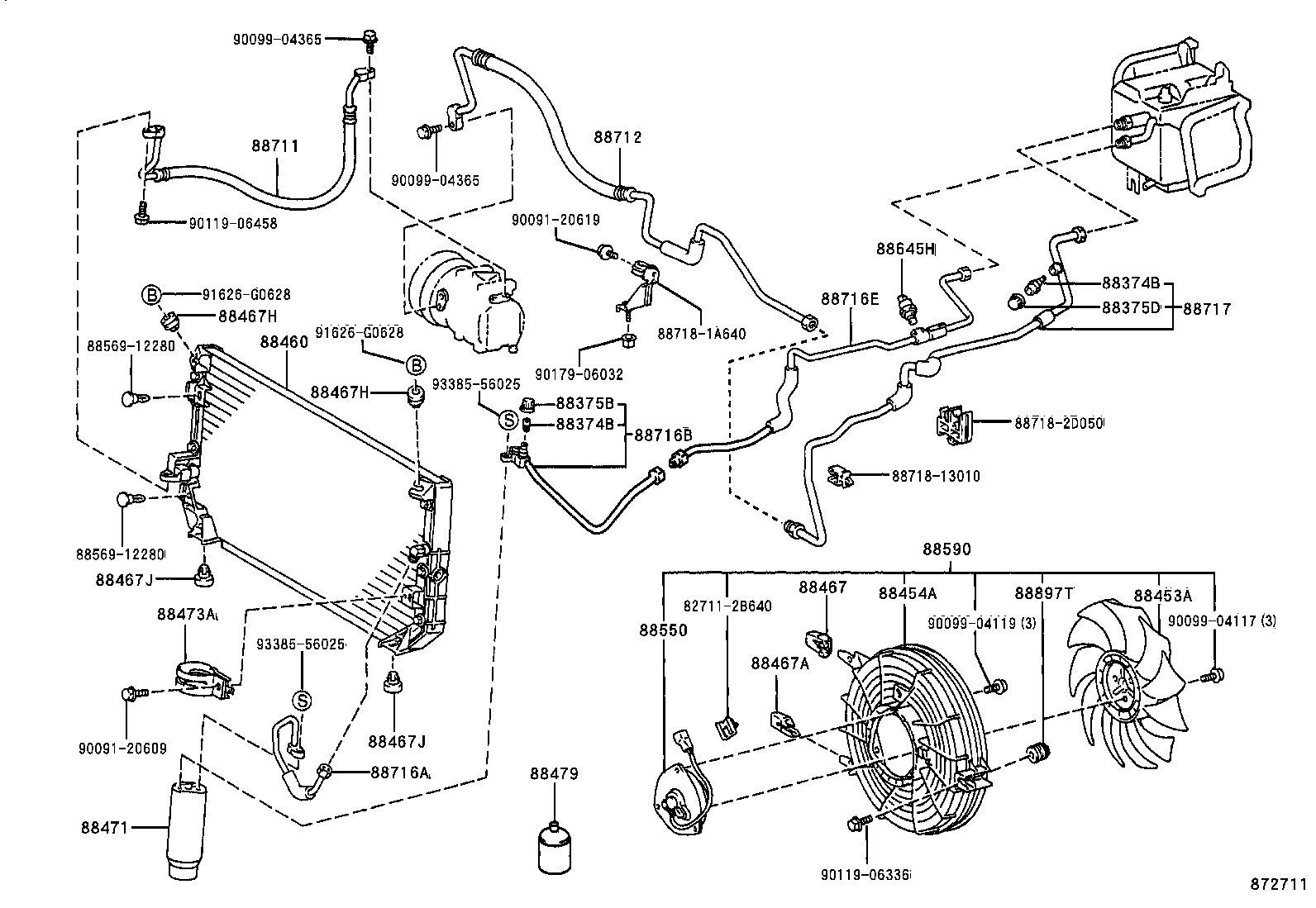

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE111 MAKER OPTION |
1 | ||
| 88374-30010 |
AE111 DEALER OPTION |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AE111 MAKER OPTION |
1 | ||
| 88374-30010 |
AE111 DEALER OPTION |
2 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
AE111 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
AE111 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-10022 |
AE111 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12160 |
AE111 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-13010 |
AE111 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12130 |
AE111 |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12140 |
AE111 |
1 | ||
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88897-12250 |
AE111 |
2 | ||
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88897-12250 |
AE111 |
2 | ||
| 88467J - CUSHION, CONDENSER BRACKET, NO.2 | ||||
| 88467-12100 |
AE111 |
2 | ||
| 88467J - CUSHION, CONDENSER BRACKET, NO.2 | ||||
| 88467-12100 |
AE111 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-60010 |
AE111 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20070 |
AE111 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
AE111 200G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
AE111 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12250 |
AE111 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AE111 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-1A490 |
AE111 DEALER OPTION |
1 | ||
| 88711-1A450 |
AE111 MAKER OPTION |
1 | ||
| 88711-1A491 |
AE111 DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A460 |
AE111 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12470 |
AE111 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-13010 |
AE111 MAKER OPTION |
1 | ||
| 88716-1A470 |
AE111 DEALER OPTION |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A480 |
AE111 DEALER OPTION |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-13020 |
AE111 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-12250 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88569-12280 | ||||
| 88718-13010 | ||||
| 88718-1A640 | ||||
| 88718-2D050 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04365 | ||||
| 90119-06336 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 91626-G0628 | ||||
| 93385-56025 | ||||
