AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

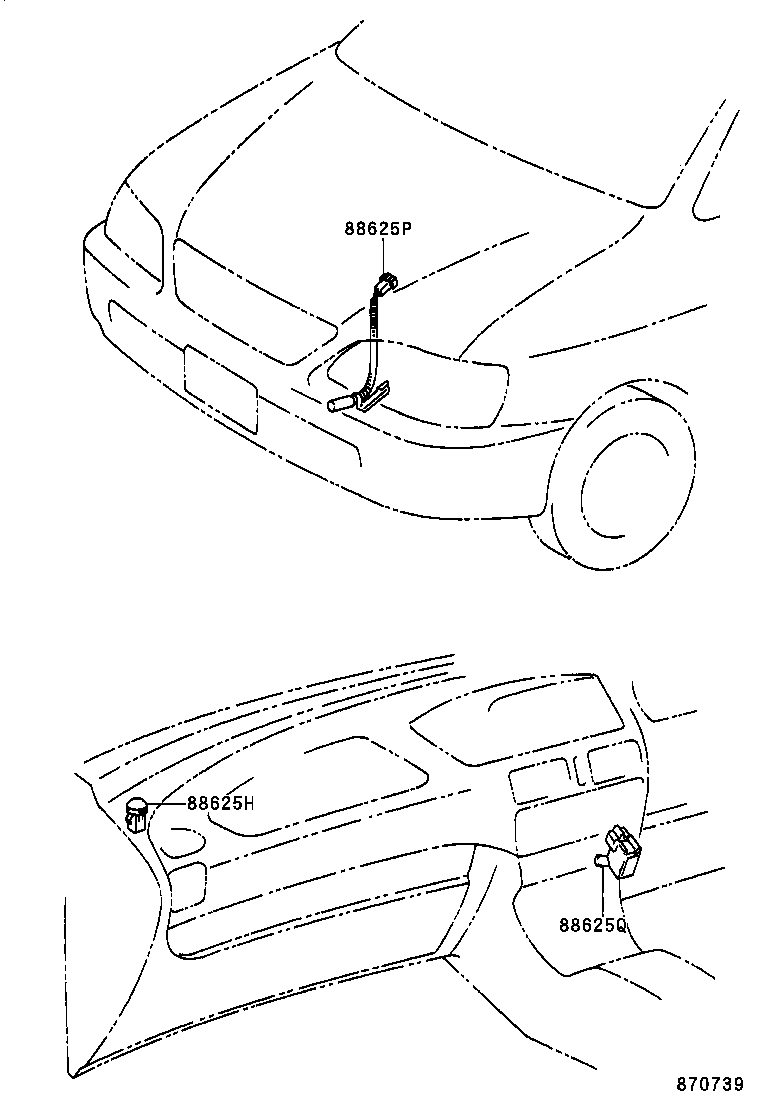

ILLUST NO. 3 OF 3(9805- )

Click highlighted areas on diagram

diagram 88625H 88625P 88625Q
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-32160

AE111

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-13010

AE111

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88790-35020

AE111

 1

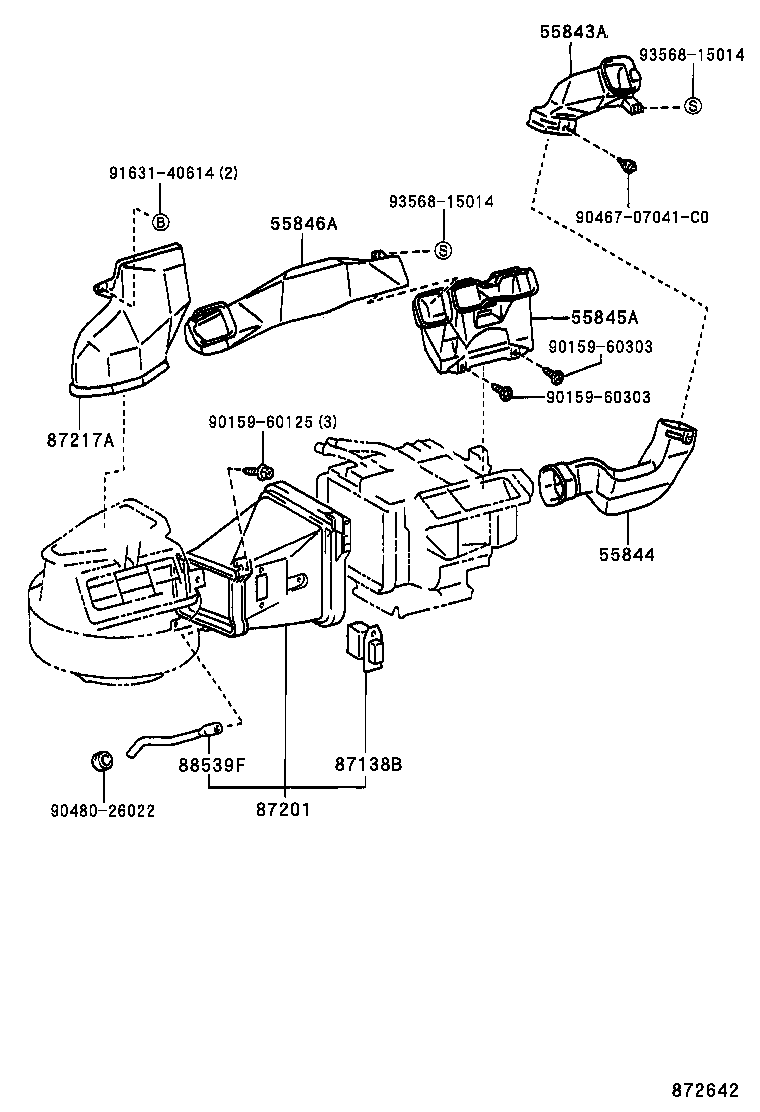

ILLUST NO. 1 OF 3(9805- )

Click highlighted areas on diagram

diagram 55843A 55844 55845A 55846A 87138B 87201 87217A 88539F 9015960125 9015960303 9015960303 9046707041C0 9048026022 9163140614 9356815014 9356815014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-13010

AE111

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-13010

AE111

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55870-13010

AE111

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-13010

AE111

 1
87138B - RESISTOR, HEATER BLOWER
87138-12140

AE111

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-13010

AE111

 1
87217A - DUCT, AIR, REAR NO.6
87217-13010

AE111

 1
88539F - HOSE, DRAIN
88539-12110

AE111

 1
Common parts
90159-60125
90159-60303
90467-07041C0
90480-26022
91631-40614
93568-15014

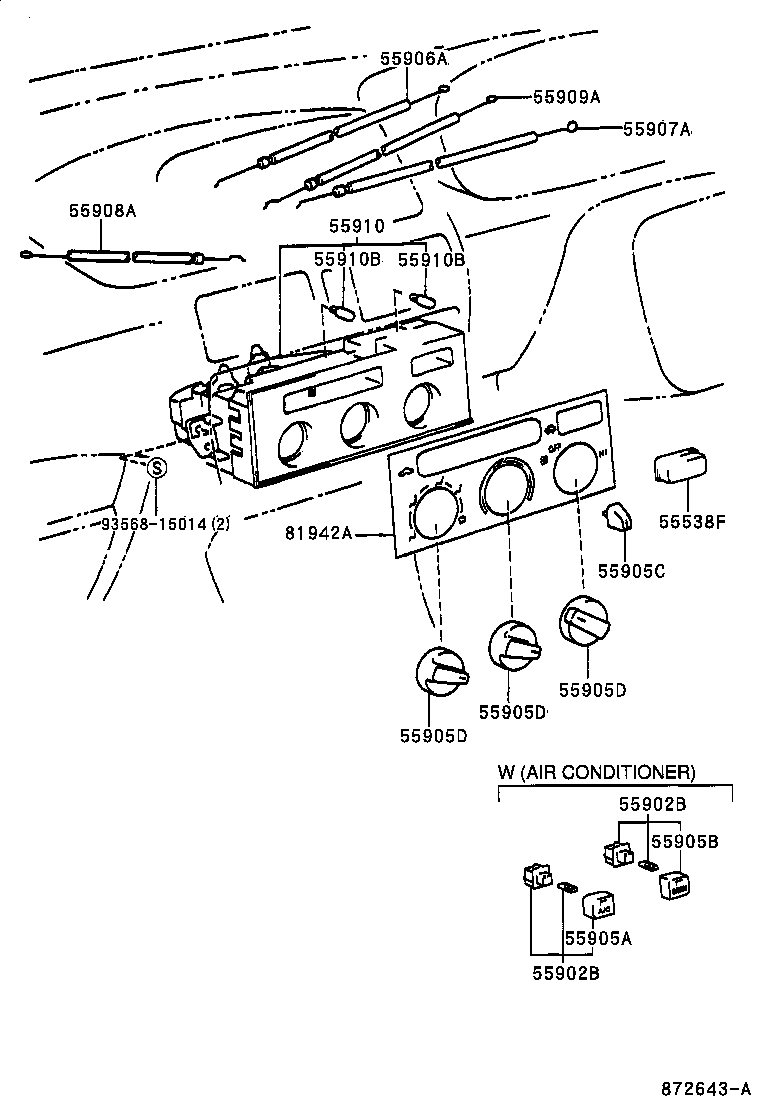

ILLUST NO. 2 OF 3(9805- )

Click highlighted areas on diagram

diagram 55538F 55902B 55902B 55905A 55905B 55905C 55905D 55905D 55905D 55906A 55907A 55908A 55909A 55910 55910B 55910B 81942A 9356815014
Part # Description Qty Price
55538F - COVER, COOLER SWITCH HOLE
55538-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-13020

AE111

ECON

 1
55902-13010

AE111

A/C

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-13020

AE111

ECON

 1
55902-13010

AE111

A/C

 1
55905A - KNOB, HEATER CONTROL
55905-13030

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
55905-13010

AE111

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-13020

AE111

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-2B040

AE111

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-13010

AE111

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-13010

AE111

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-13010

AE111

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-13010

AE111

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-13050B0

AE111

DK.CHARCOAL,TRIM1#

 1
55910-13020B0

AE111

W(AUTOMATIC AIR CONDITIONER),DK.CHARCOAL,TRIM1#

 1
55910B - BULB, HEATER CONTROL
90981-11014

AE111

 2
55910B - BULB, HEATER CONTROL
90981-11014

AE111

 2
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-13020B0

AE111

W(AUTOMATIC AIR CONDITIONER),DK.CHARCOAL,TRIM1#

 1
81942-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
Common parts
93568-15014

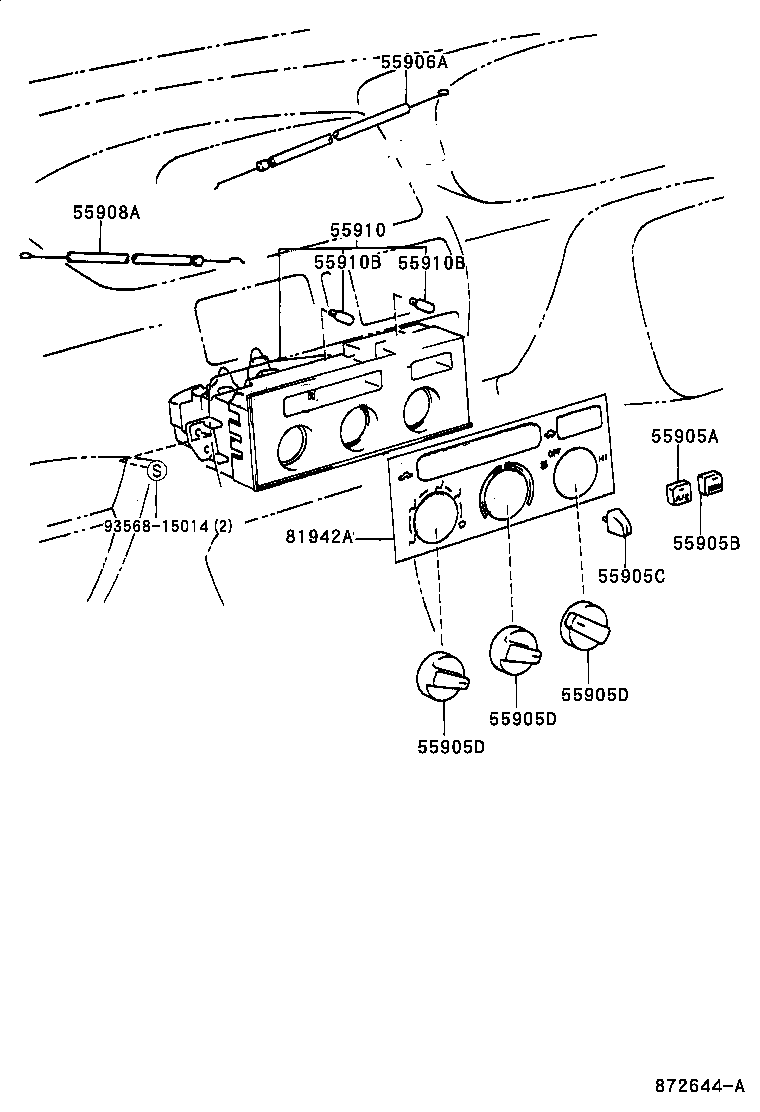

ILLUST NO. 2 OF 3(9805- )

Click highlighted areas on diagram

W(AUTOMATIC AIR CONDITIONER)

diagram 55905A 55905B 55905C 55905D 55905D 55905D 55906A 55908A 55910 55910B 55910B 81942A 9356815014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-13030

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
55905-13010

AE111

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-13020

AE111

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-2B040

AE111

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12440C0

AE111

BLACK,TRIM1#

 3
55905-12440B1

AE111

DK.CHARCOAL,TRIM1#

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-13010

AE111

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-13010

AE111

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-13050B0

AE111

DK.CHARCOAL,TRIM1#

 1
55910-13020B0

AE111

W(AUTOMATIC AIR CONDITIONER),DK.CHARCOAL,TRIM1#

 1
55910B - BULB, HEATER CONTROL
90981-11014

AE111

 2
55910B - BULB, HEATER CONTROL
90981-11014

AE111

 2
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-13020B0

AE111

W(AUTOMATIC AIR CONDITIONER),DK.CHARCOAL,TRIM1#

 1
81942-13010B0

AE111

DK.CHARCOAL,TRIM1#

 1
Common parts
93568-15014
