AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

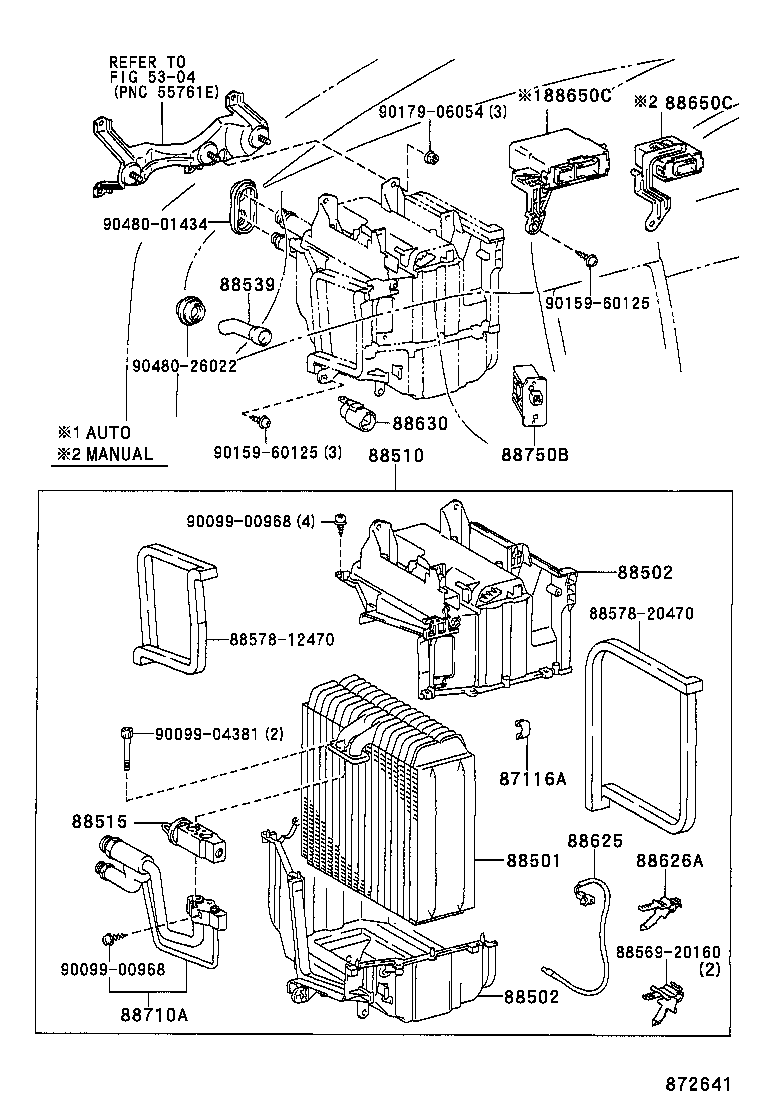

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 5304 87116A 88501 88502 88502 88510 88515 88539 8856920160 8857812470 8857820470 88625 88626A 88630 88650C 88650C 88710A 88750B 9009900968 9009900968 9009904381 9015960125 9015960125 9017906054 9048001434 9048026022
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

AE111

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12391

AE111

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12250

AE111

W(AUTOMATIC AIR CONDITIONER),UPPER

 1
88502-12240

AE111

UPPER

 1
88502-12200

AE111

LOWER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12250

AE111

W(AUTOMATIC AIR CONDITIONER),UPPER

 1
88502-12240

AE111

UPPER

 1
88502-12200

AE111

LOWER

 1
88510 - UNIT ASSY, COOLER
88510-13060

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
88510-13050

AE111

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AE111

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12160

AE111

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12280

AE111

 1
88626A - HOLDER, THERMISTOR
88626-28010

AE111

 1
88630 - RELAY ASSY, COOLER
88630-13010

AE111

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-13010

AE111

 1
88650-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-13010

AE111

 1
88650-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12330

AE111

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-12010

AE111

 1
Common parts
88569-20160
88578-12470
88578-20470
90099-00968
90099-04381
90159-60125
90179-06054
90480-01434
90480-26022
Linked diagrams
5304
