AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

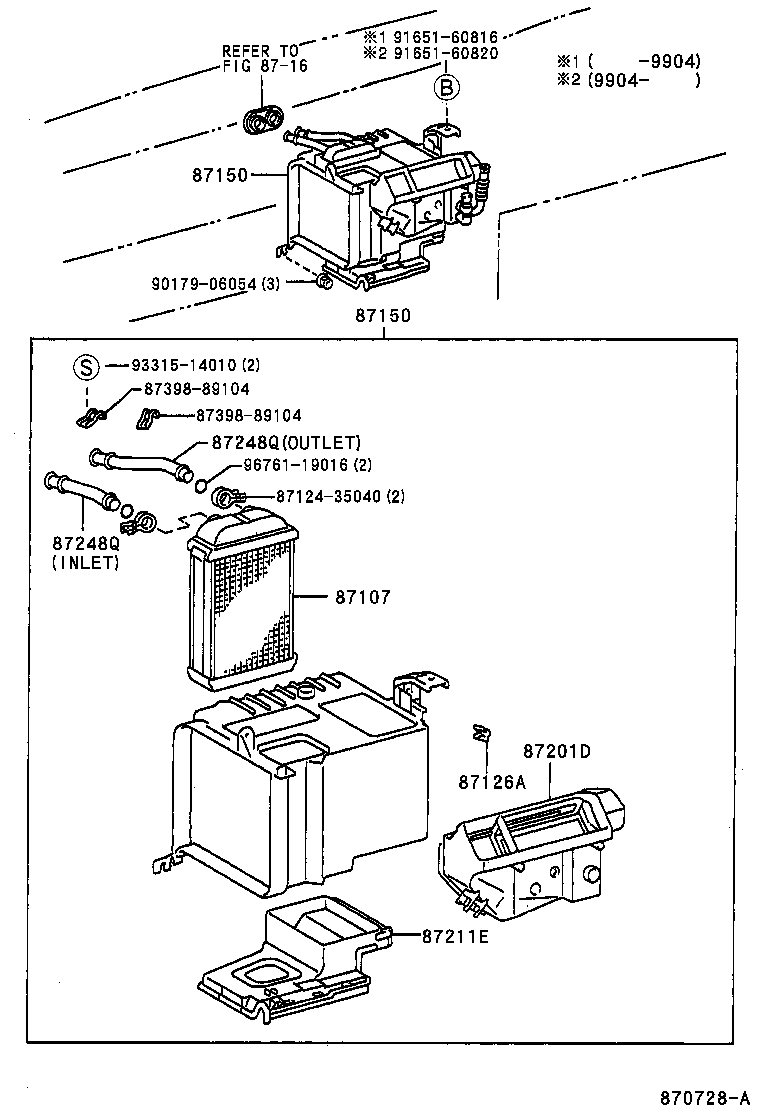

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

diagram 87107 8712435040 87126A 87150 87150 8716 87201D 87211E 87248Q 87248Q 8739889104 8739889104 9017906054 9165160816 9165160820 9331514010 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12500

AE111

 1
87126A - CLAMP, HEATER CONTROL
87126-13010

AE111

 1
87126-13010

AE111

W(AUTOMATIC AIR CONDITIONER)

 2
87150 - RADIATOR ASSY, HEATER
87150-13010

AE111

 1
87150-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150-13021

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150 - RADIATOR ASSY, HEATER
87150-13010

AE111

 1
87150-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150-13021

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87201D - DUCT SUB-ASSY, AIR
87201-12510

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87201-12480

AE111

 1
87211E - DUCT, AIR
87211-13010

AE111

 1
87211-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-12020

AE111

INLET

 1
87156-12030

AE111

OUTLET

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-12020

AE111

INLET

 1
87156-12030

AE111

OUTLET

 1
Common parts
87124-35040
87398-89104
90179-06054
91651-60816
91651-60820
93315-14010
96761-19016
Linked diagrams
8716

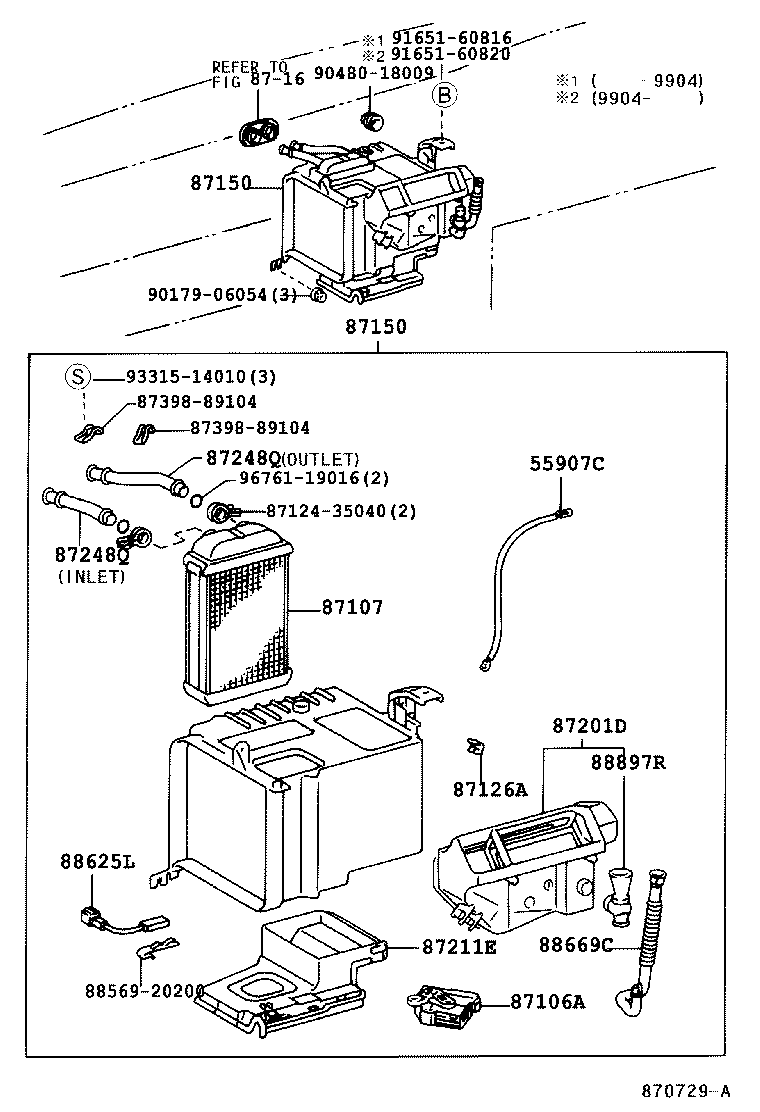

ILLUST NO. 1 OF 2(9805- )

Click highlighted areas on diagram

W(AUTOMATIC AIR CONDITIONER)

diagram 55907C 87106A 87107 8712435040 87126A 87150 87150 8716 87201D 87211E 87248Q 87248Q 8739889104 8739889104 8856920200 88625L 88669C 88897R 9017906054 9048018009 9165160816 9165160820 9331514010 9676119016
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12440

AE111

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-12080

AE111

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12500

AE111

 1
87126A - CLAMP, HEATER CONTROL
87126-13010

AE111

 1
87126-13010

AE111

W(AUTOMATIC AIR CONDITIONER)

 2
87150 - RADIATOR ASSY, HEATER
87150-13010

AE111

 1
87150-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150-13021

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150 - RADIATOR ASSY, HEATER
87150-13010

AE111

 1
87150-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87150-13021

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87201D - DUCT SUB-ASSY, AIR
87201-12510

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87201-12480

AE111

 1
87211E - DUCT, AIR
87211-13010

AE111

 1
87211-13020

AE111

W(AUTOMATIC AIR CONDITIONER)

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-12020

AE111

INLET

 1
87156-12030

AE111

OUTLET

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87156-12020

AE111

INLET

 1
87156-12030

AE111

OUTLET

 1
88625L - THERMISTOR, COOLER
88790-12030

AE111

 1
88790-12031

AE111

 1
88669C - HOSE, AIR
88669-12040

AE111

 1
88897R - ASPIRATOR
88897-12210

AE111

 1
Common parts
87124-35040
87398-89104
88569-20200
90179-06054
90480-18009
91651-60816
91651-60820
93315-14010
96761-19016
Linked diagrams
8716

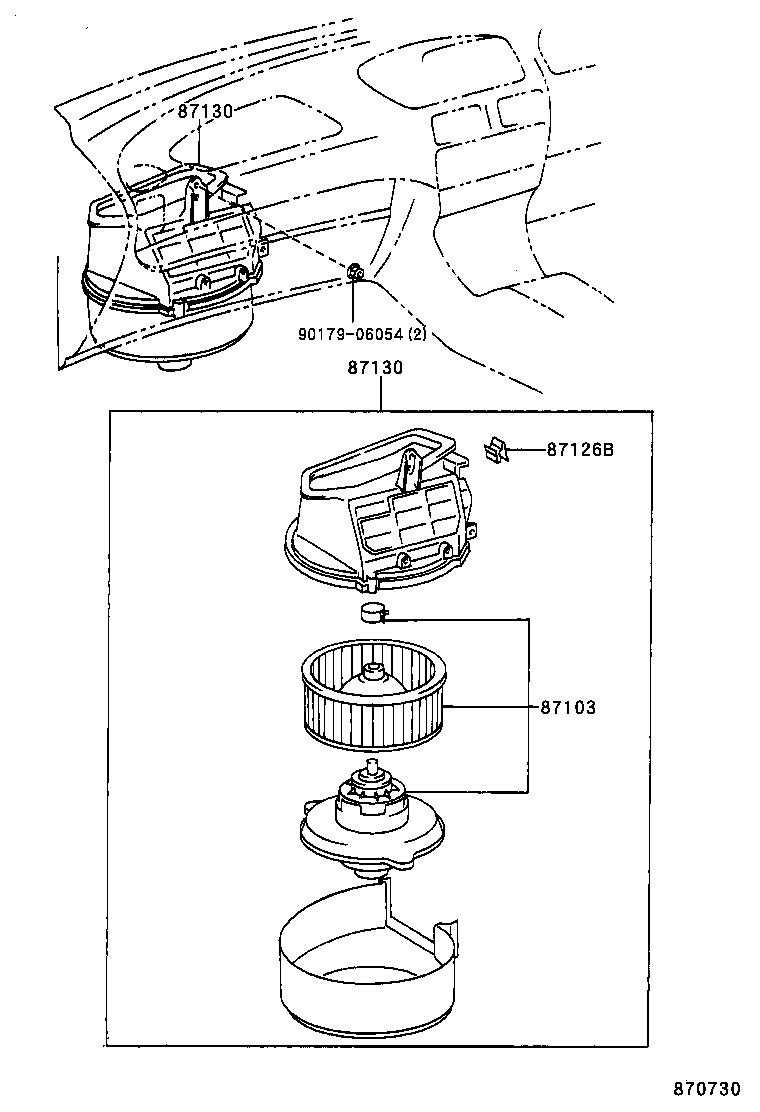

ILLUST NO. 2 OF 2(9805- )

Click highlighted areas on diagram

diagram 87103 87126B 87130 87130 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-12030

AE111

 1
87126B - CLAMP, HEATER CONTROL
87126-12040

AE111

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12322

AE111

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12322

AE111

 1
Common parts
90179-06054
