AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

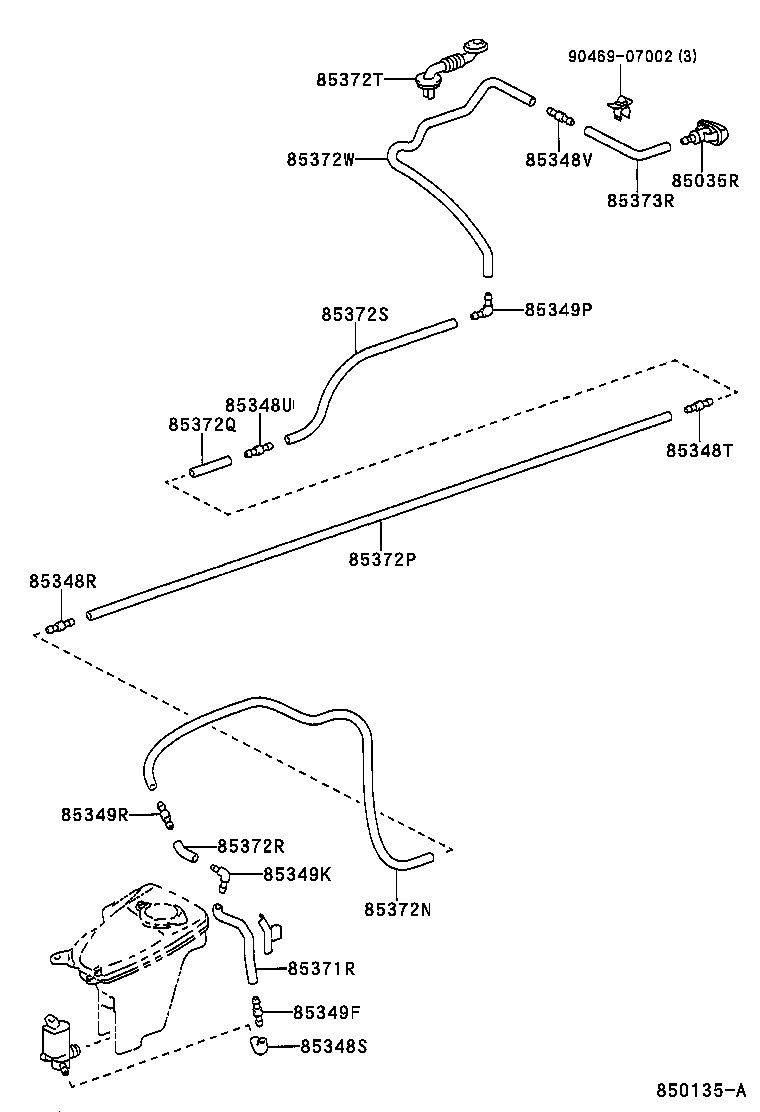

Click highlighted areas on diagram

diagram 85035R 85348R 85348S 85348T 85348U 85348V 85349F 85349K 85349P 85349R 85371R 85372N 85372P 85372Q 85372R 85372S 85372T 85372W 85373R 9046907002
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85395-13030

AE111

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AE111

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

AE111

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

AE111

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-10260

AE111

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-10260

AE111

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-10260

AE111

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85317-12230

AE111

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

AE111

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85375-10260

AE111

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AE111

*H,L=130

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

AE111

*H,L=1390

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

AE111

*H,L=2400

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

AE111

*H,L=90

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

AE111

*H,L=70

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

AE111

*H,L=720

 1
85372T - GROMMET, WASHER
85372-12020

AE111

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33299

AE111

*H,L=730

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AE111

*H,L=160

 1
Common parts
90469-07002
