AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

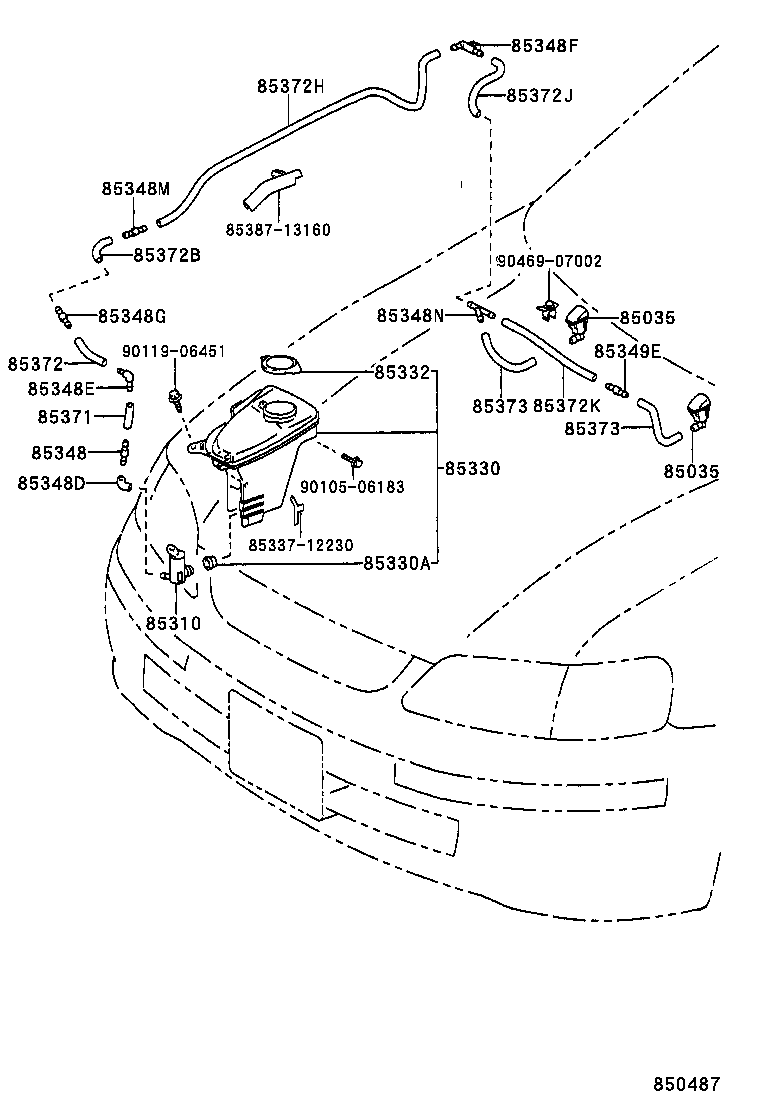

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-44010 |
AE111 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-44010 |
AE111 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
AE111 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12221 |
AE111 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AE111 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12221 |
AE111 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AE111 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85336-12230 |
AE111 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
AE111 |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85375-20800 |
AE111 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-12220 |
AE111 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
AE111 |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85348-14390 |
AE111 |
1 | ||
| 85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5 | ||||
| 85375-10260 |
AE111 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85319-12221 |
AE111 H=100 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85319-12421 |
AE111 H=95 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE111 *H,L=40 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
AE111 *H,L=1360 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
AE111 *H,L=300 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
AE111 *H,L=510 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AE111 *H,L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AE111 *H,L=170 |
2 | ||
| Common parts | ||||
| 85337-12230 | ||||
| 85387-13160 | ||||
| 90105-06183 | ||||
| 90119-06451 | ||||
| 90469-07002 | ||||
